Can Am Maverick R Trailing Arm Mount Pivot 4130 Chromoly Weld-On Gusset Kit

Fits 2-Seat Maverick R Chassis Only - Does NOT fit 4-Seat MAX or 2026 XRC Model.

Protect your Can‑Am Maverick R Chassis with our Trailing Arm Mounting Gusset Kit. This entire kit is made from 4130 Chromoly. The only kit on the market that ties the mount into the frame rail next to it for ultimate strength.

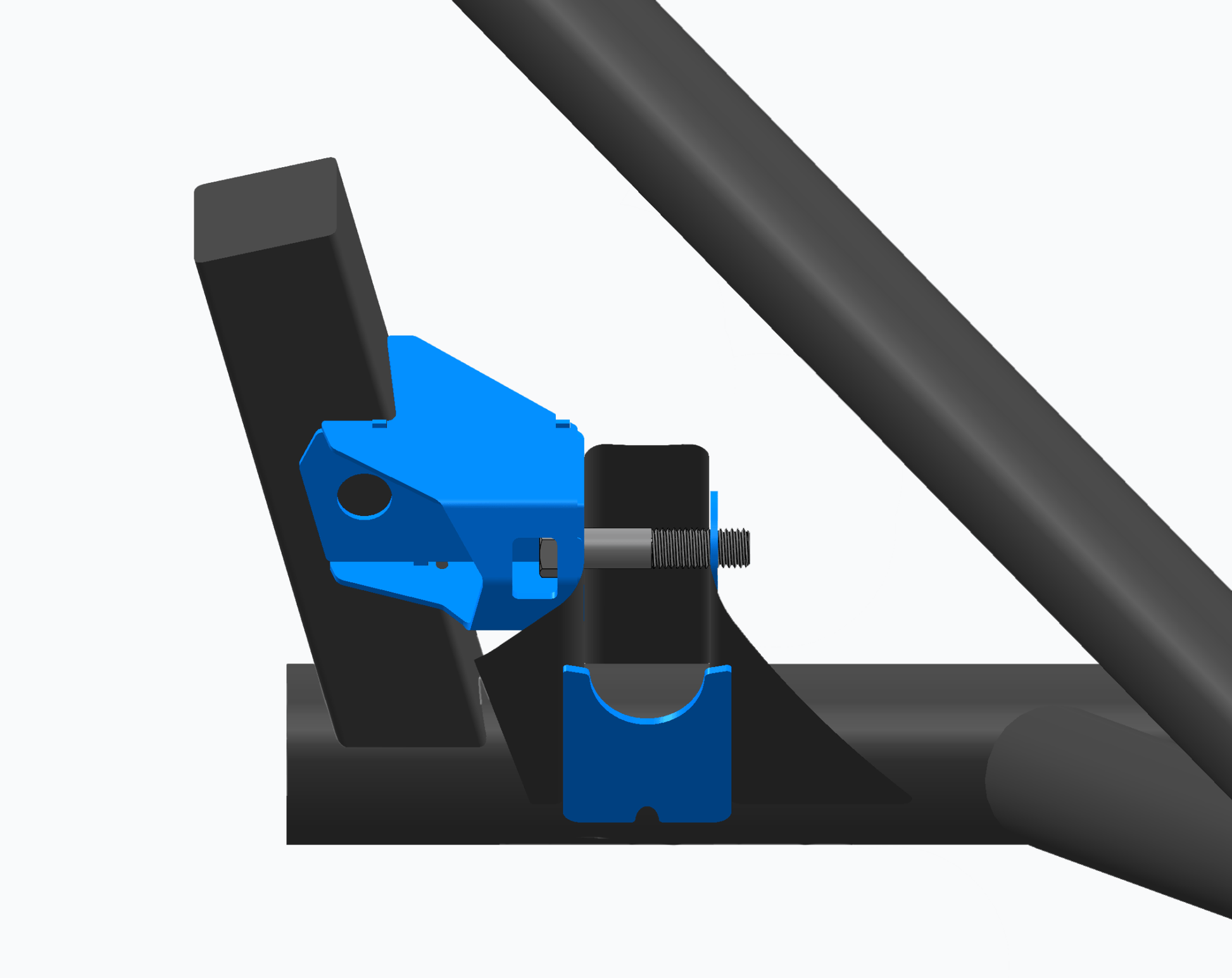

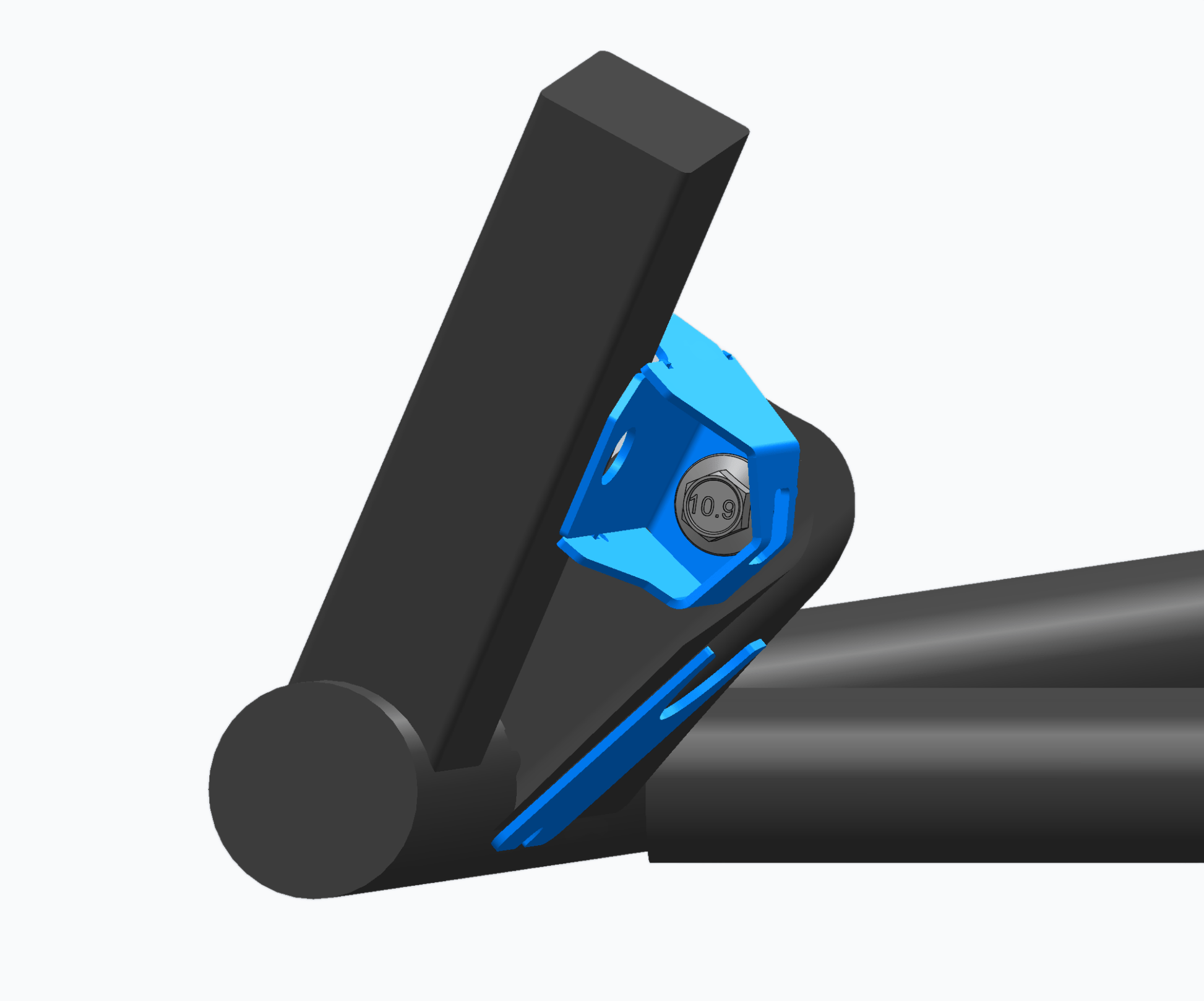

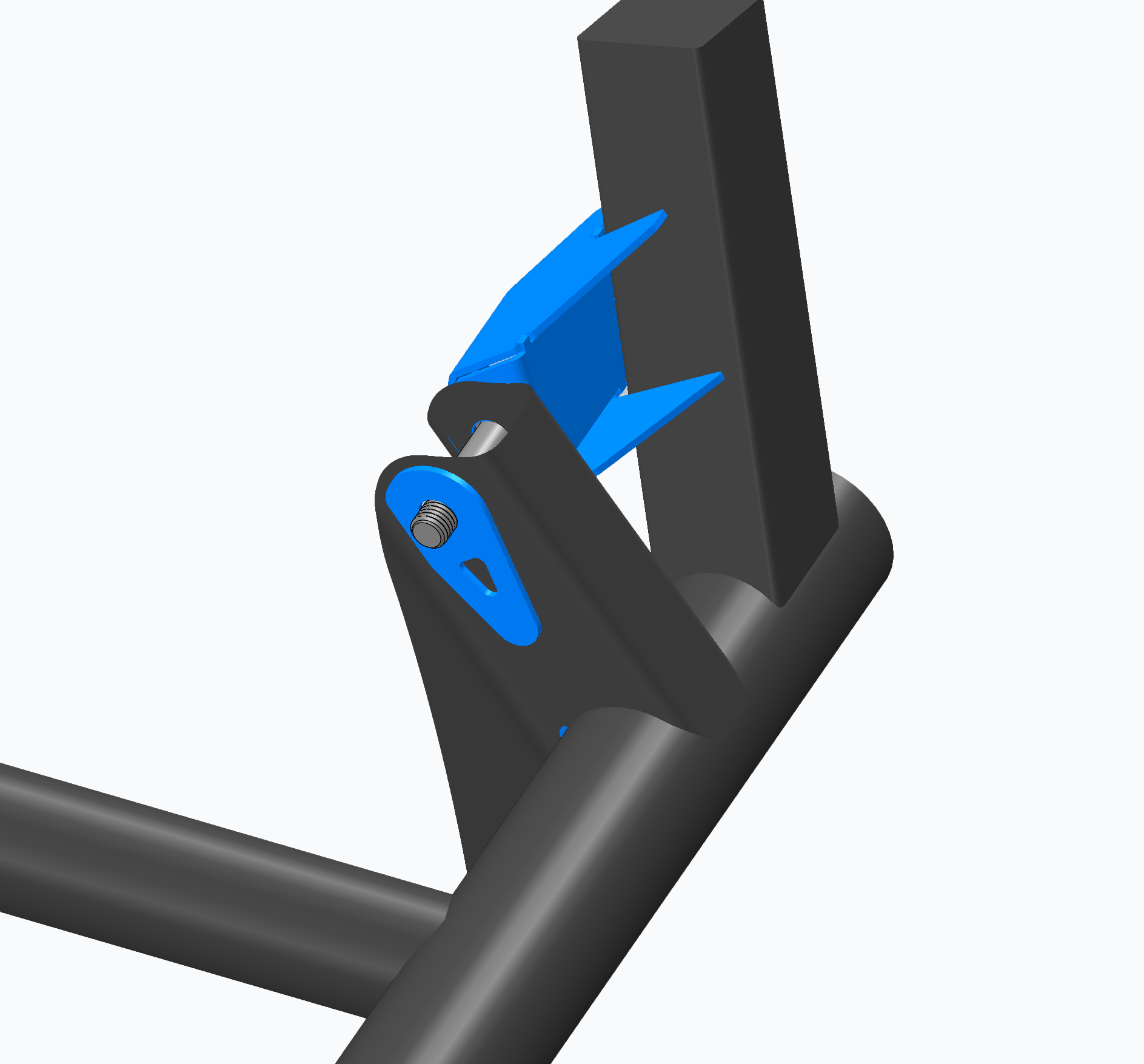

This attaches to your trailing arm pivot point on the chassis.  You can and WILL rip your trailing arms out of the chassis under hard driving and big sends. By design, the trailing arm mounting point has high leverage on it and will rip itself off the main tubing of the chassis.

Engineered from premium 4130 Chromoly steel, this kit is designed to fortify the thin, vulnerable OEM trailing arm mounts.

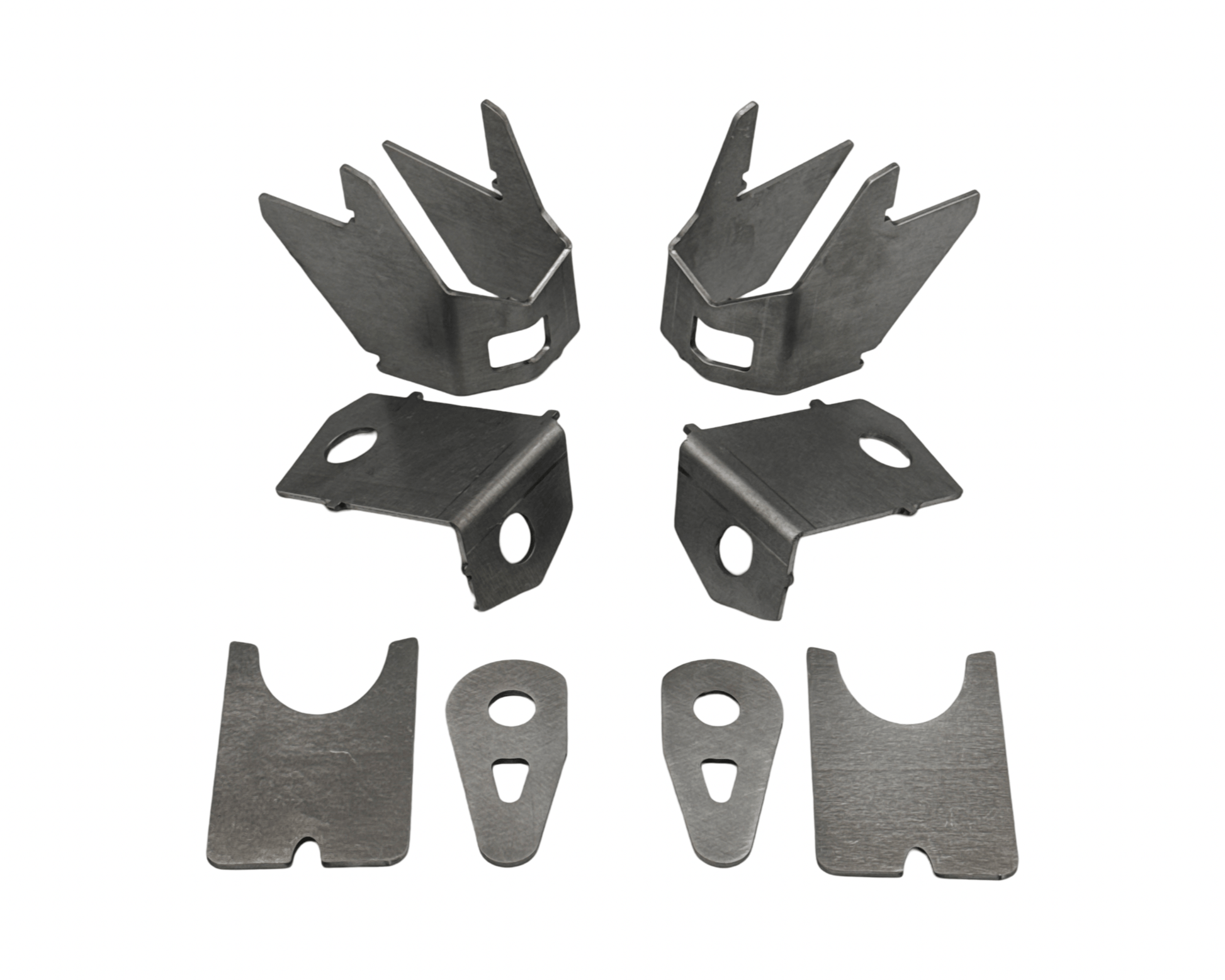

Each complete set features four precision‑crafted gusset pieces per side that, when welded onto your chassis, deliver a robust reinforcement—providing balanced, long‑lasting protection on both the left and right sides.

This reinforcement kit not only improves structural integrity to your chassis, but also gives you the confidence to push your Maverick R to the limit.

This is a fabricator part. There may be chassis variances that require slight modifications to this kit to make it fit your specific OEM chassis, especially if your OEM mount has been stressed.
