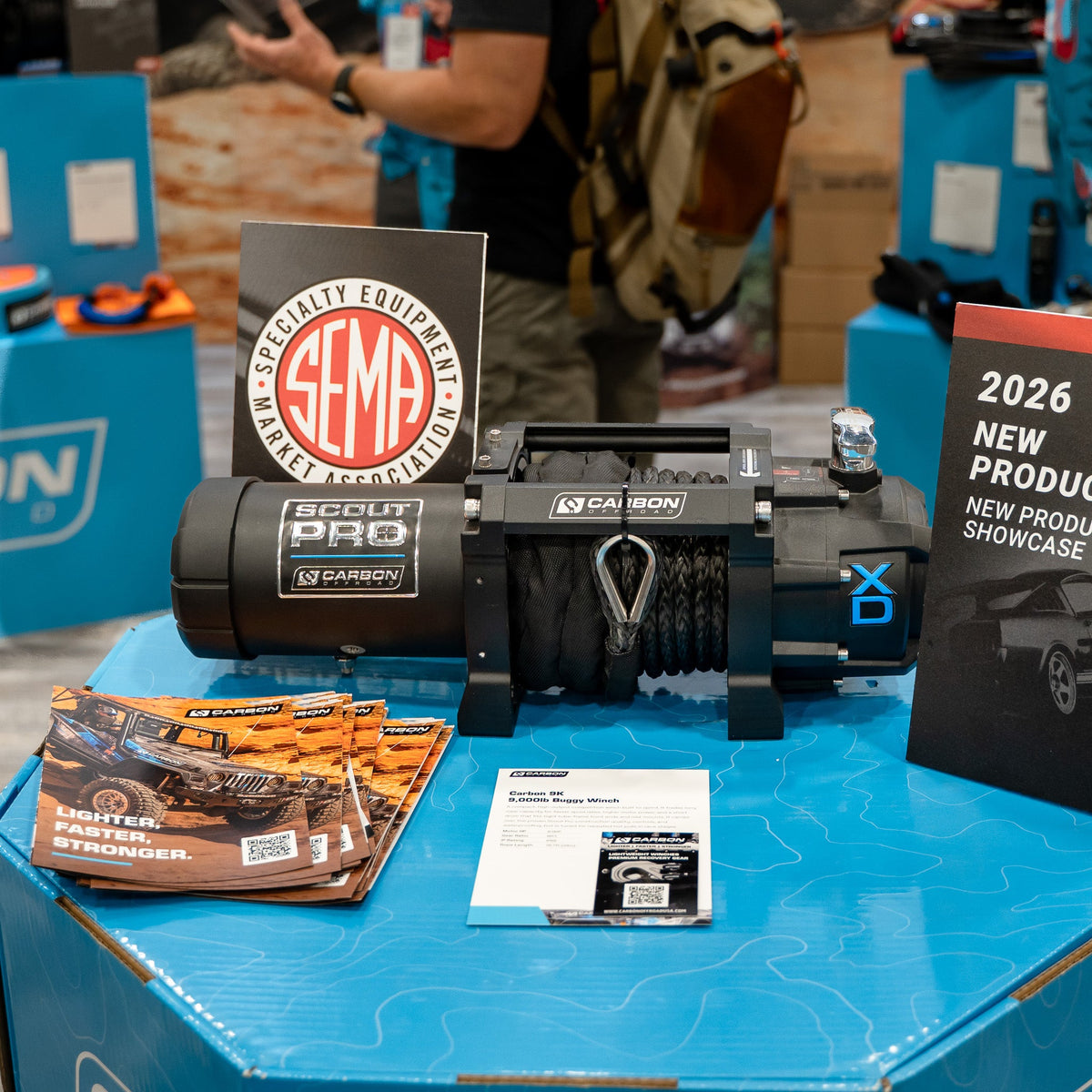

The Carbon Offroad Scout Pro RS9-S (Short Drum): Pure Race Power
Maximum Muscle. Minimum Footprint. When you’re piloting a race buggy, UTV, or specialized ATV, every millimeter and every gram counts. The Scout Pro RS9-S is the short-drum evolution of our high-speed series—designed specifically for tight spaces where you refuse to compromise on recovery speed or pulling power.
The RS9-S Advantage
Don’t let the compact size fool you. This is the same 8.0HP powerhouse found in our full-size rigs, shortened down for elite racing applications. With a performance-tuned 80:1 gear ratio, the RS9-S delivers the fastest line speeds in the UTV/Buggy class.
Built on our ultra-lightweight chassis, it comes standard with 24m (80ft) of 8mm Spectra™ Fiber synthetic rope. It’s the ultimate "insurance policy" for competitors who need to winch fast, win big, and keep their front end light and flickable.
Combatable with Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
| Feature | Specification (Metric / Imperial) |
| Rated Line Pull | 4,080kg (9,000lb) |
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 24m (5/16" x 80ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |
| Winch Dimensions (L x W x H) | 385mm x 115mm x 120mm (15.16" x 4.53" x 4.7") |
| Drum Diameter x Length | 63mm x 122mm (2.5" x 4.8") |
| Mounting Bolt Pattern | 164mm x 114.3mm (6.46" x 4.5") |

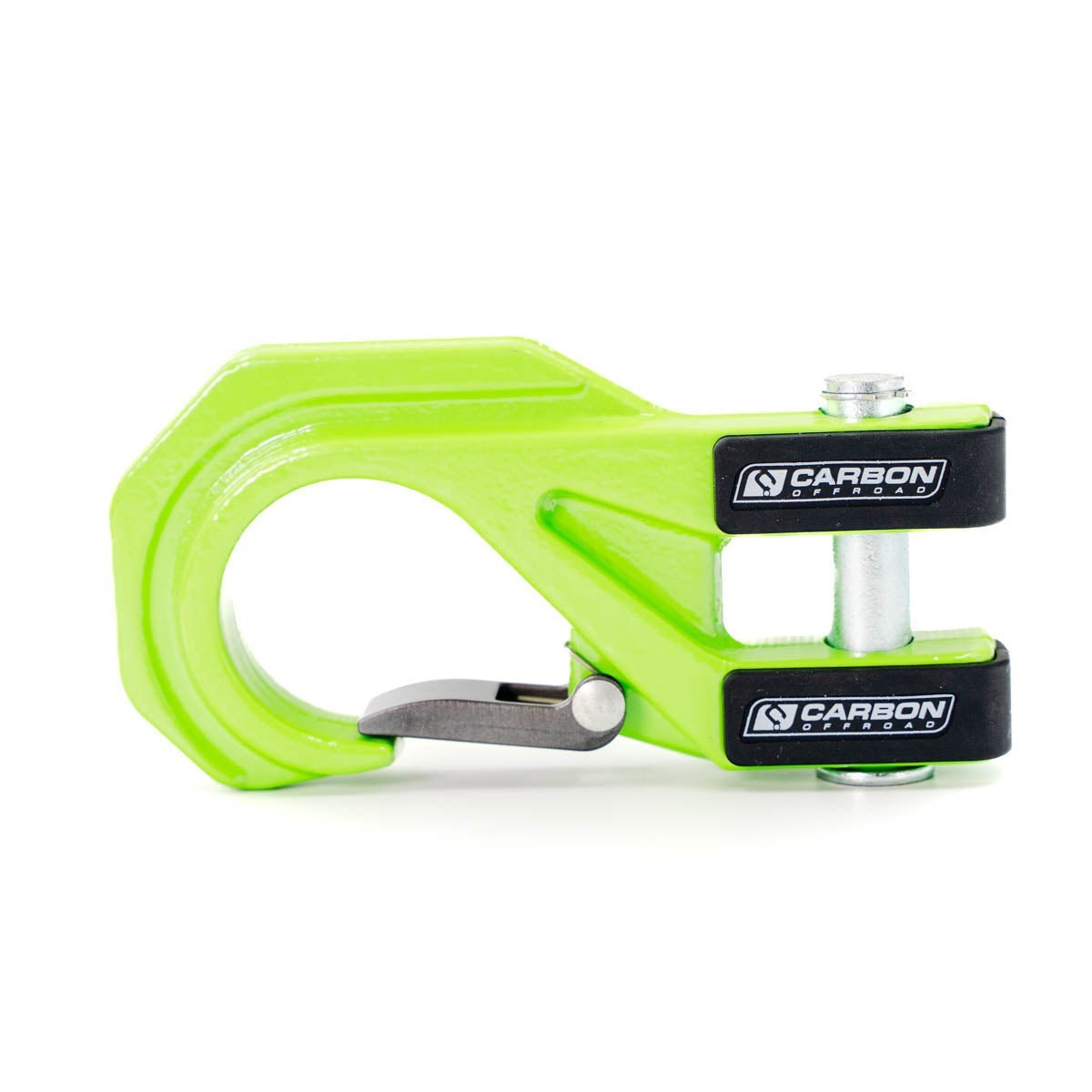

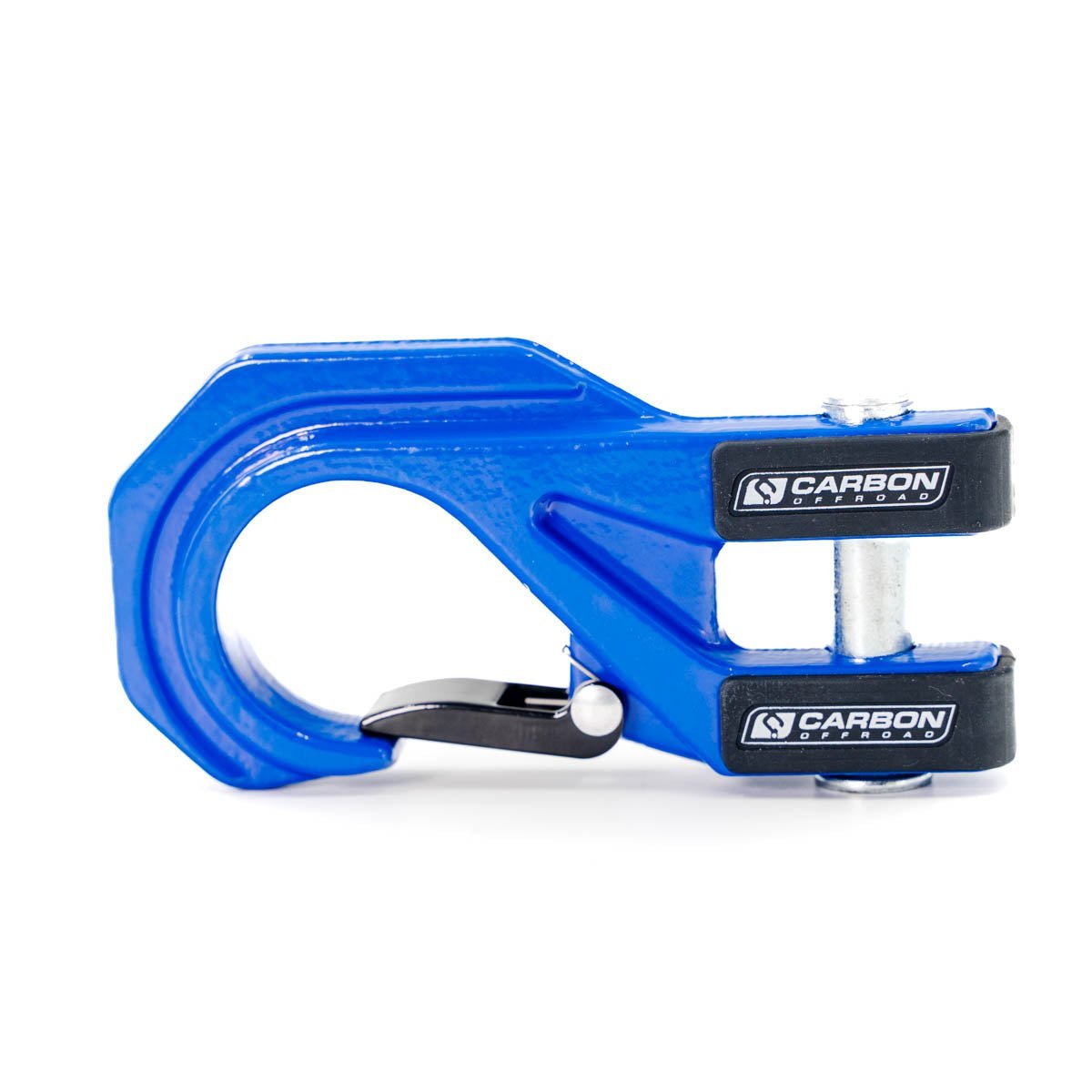

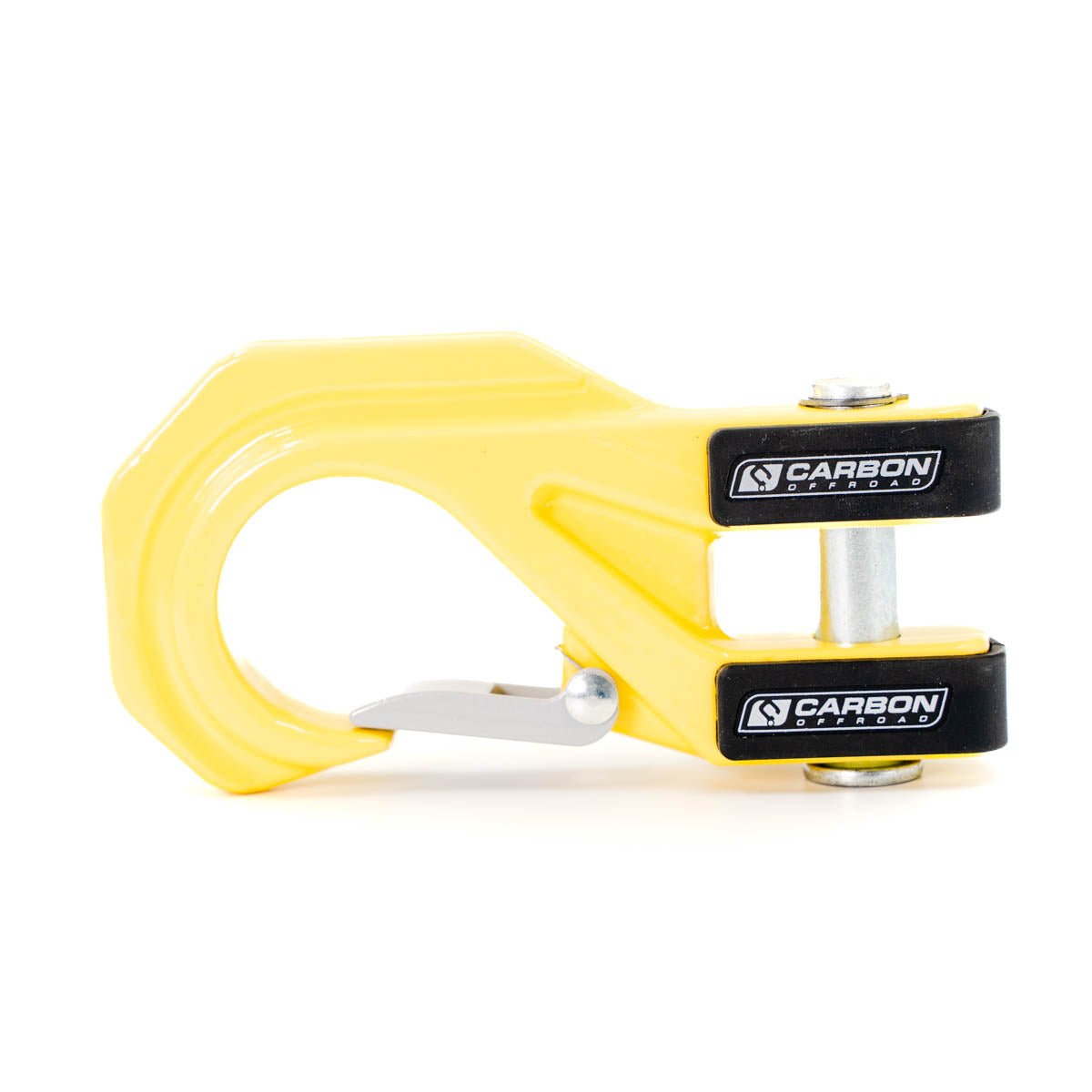

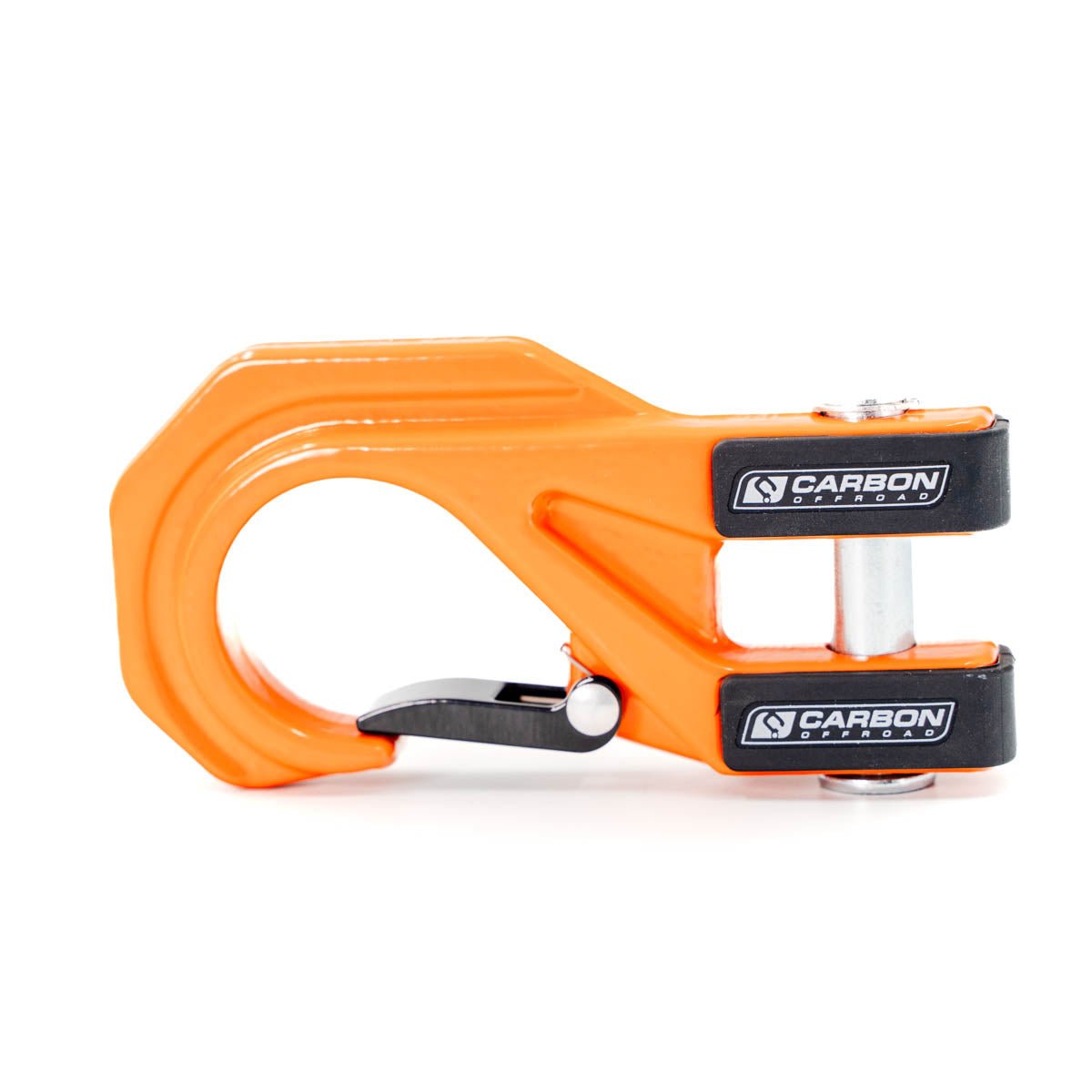

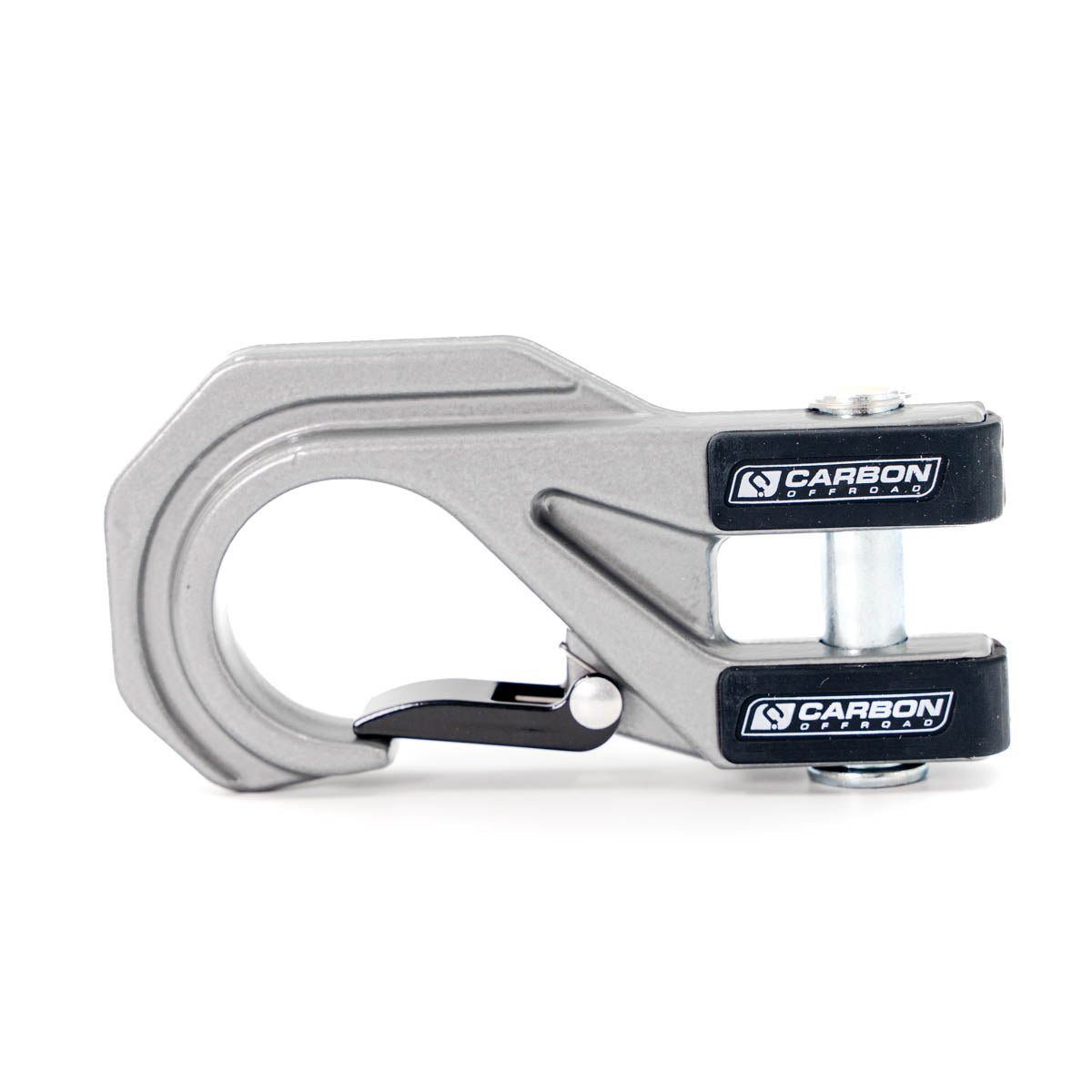

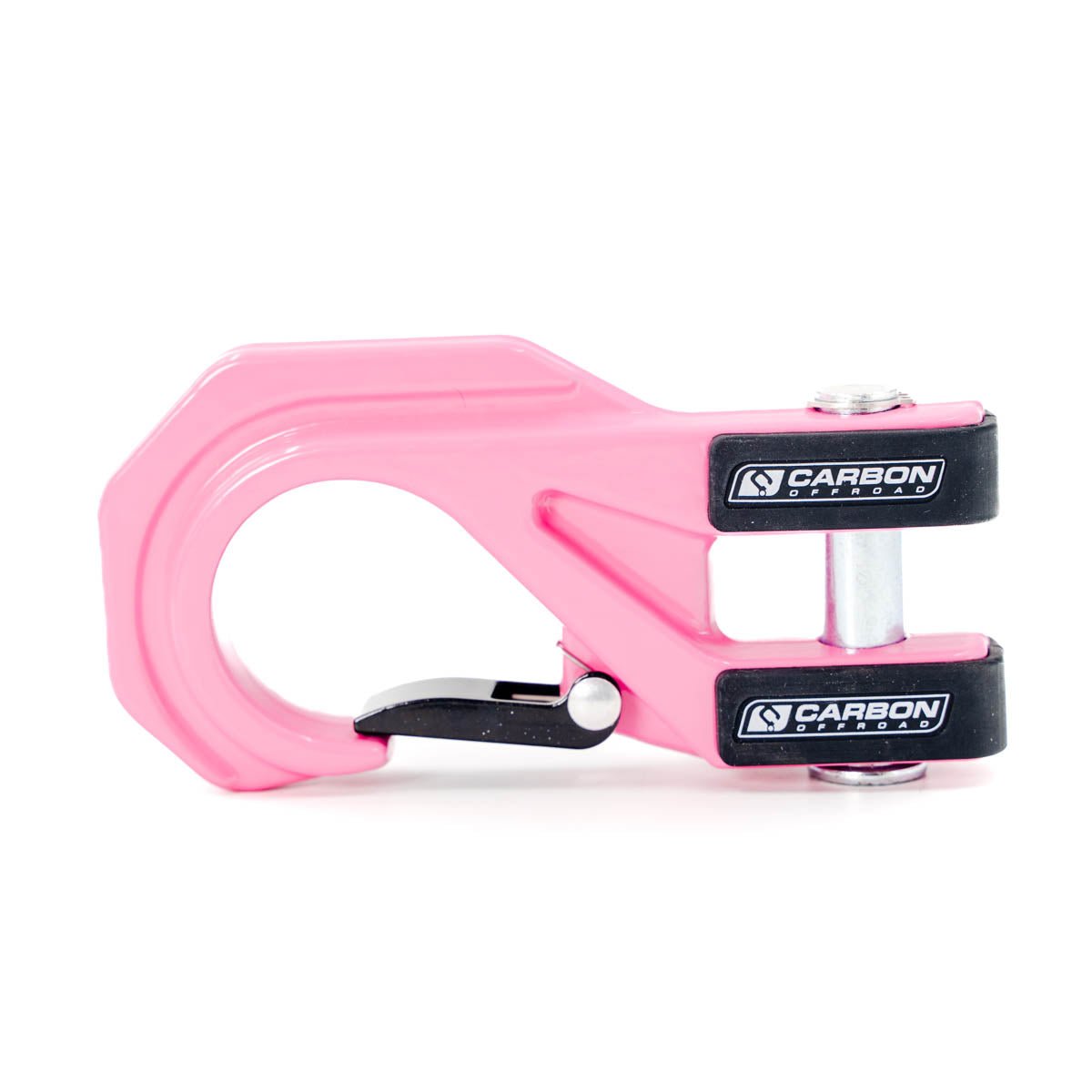

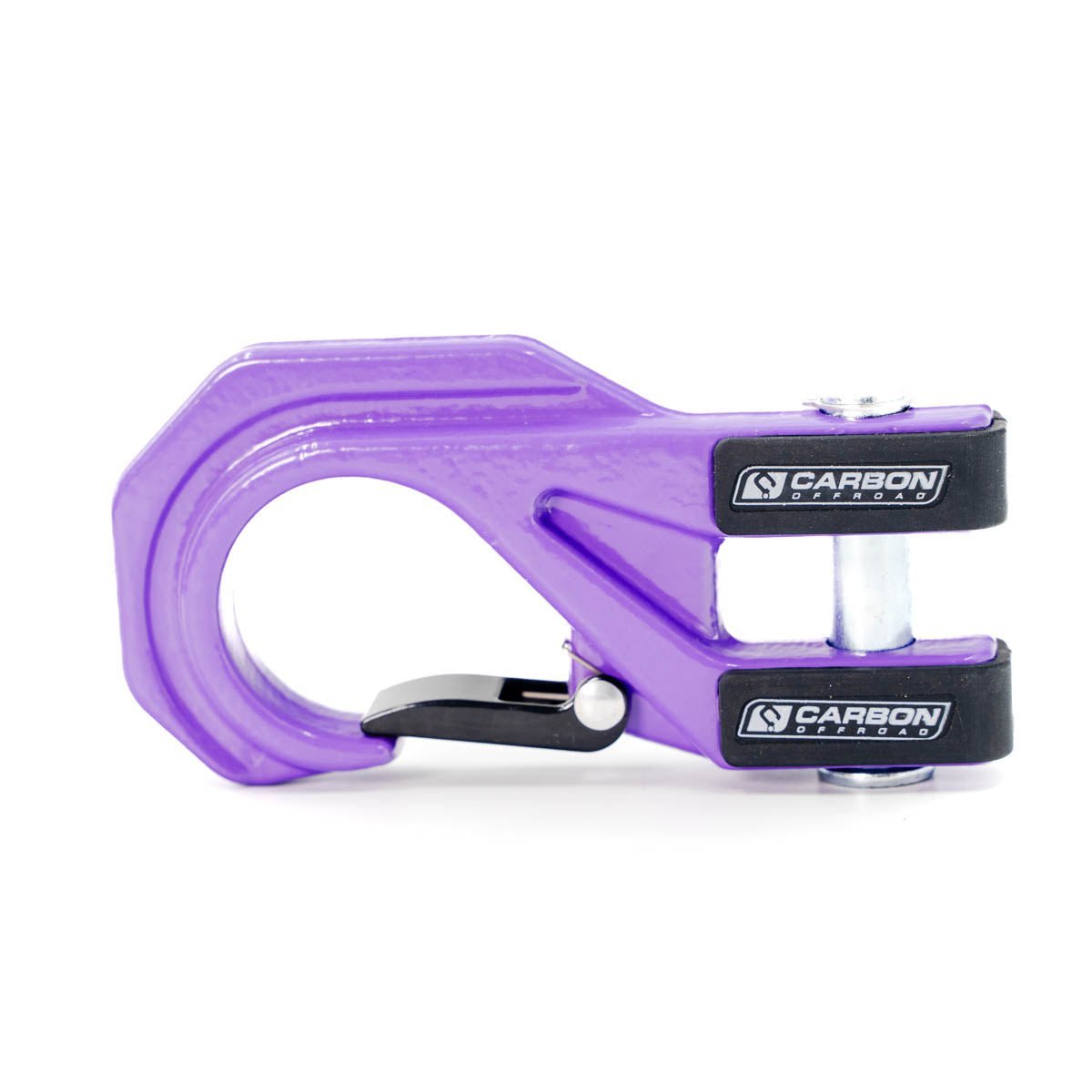

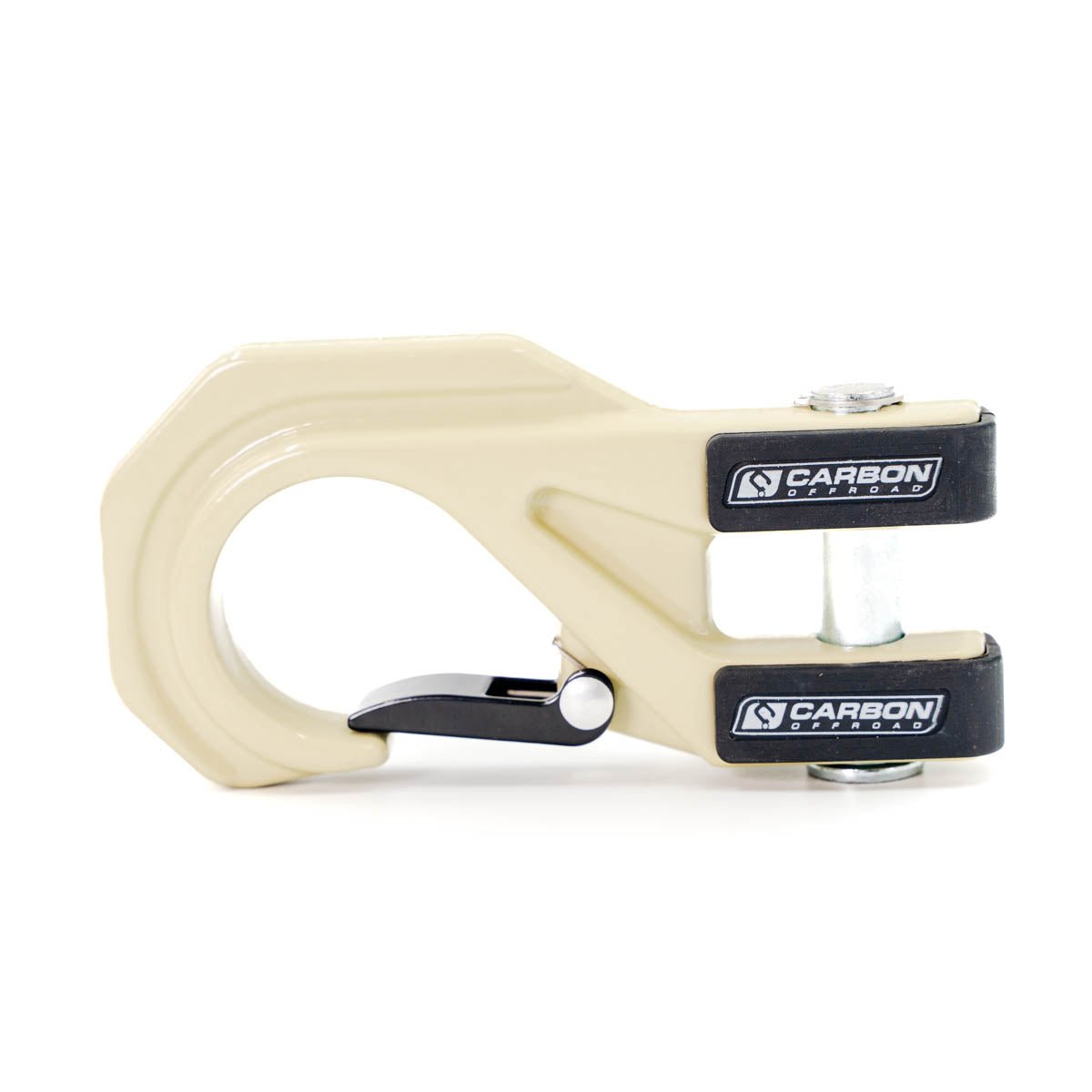

| Included Hardware | MegaPro Hook, Fairlead, Wiring Accessory Kit |
| Winch Weight | 22kg (48.4lb) |
| Line Pull (lbs / kgs) | Line Speed (ft/min / m/min) | Motor Current (Amps) |
| 0 | 79.4 ft (24.2 m) | 55 A |
| 4000 lbs (1816 kg) | 18.4 ft (5.6 m) | 180 A |
| 7000 lbs (3180 kg) | 13.8 ft (4.2 m) | 310 A |
| 9000 lbs (4090 kg) | 8.5 ft (2.6 m) | 440 A |
| Layer | Rated Line Pull (lbs / kgs) |
| 1 | 9000 lbs (4090 kg) |
| 2 | 7760 lbs (3524 kg) |
| 3 | 6690 lbs (3040 kg) |
| 4 | 5760 lbs (2615 kg) |
Builder & Racer Note
The RS9-S features a shortened drum and chassis to fit narrow mounting locations common in race buggies and UTVs. Despite its compact 385mm (15.16 inch) length, it retains the full-sized 8.0HP motor. Ensure your mounting plate or winch cradle is rated for 9,000lb (4,080kg) loads, as this unit packs significantly more punch than standard UTV-class winches.
