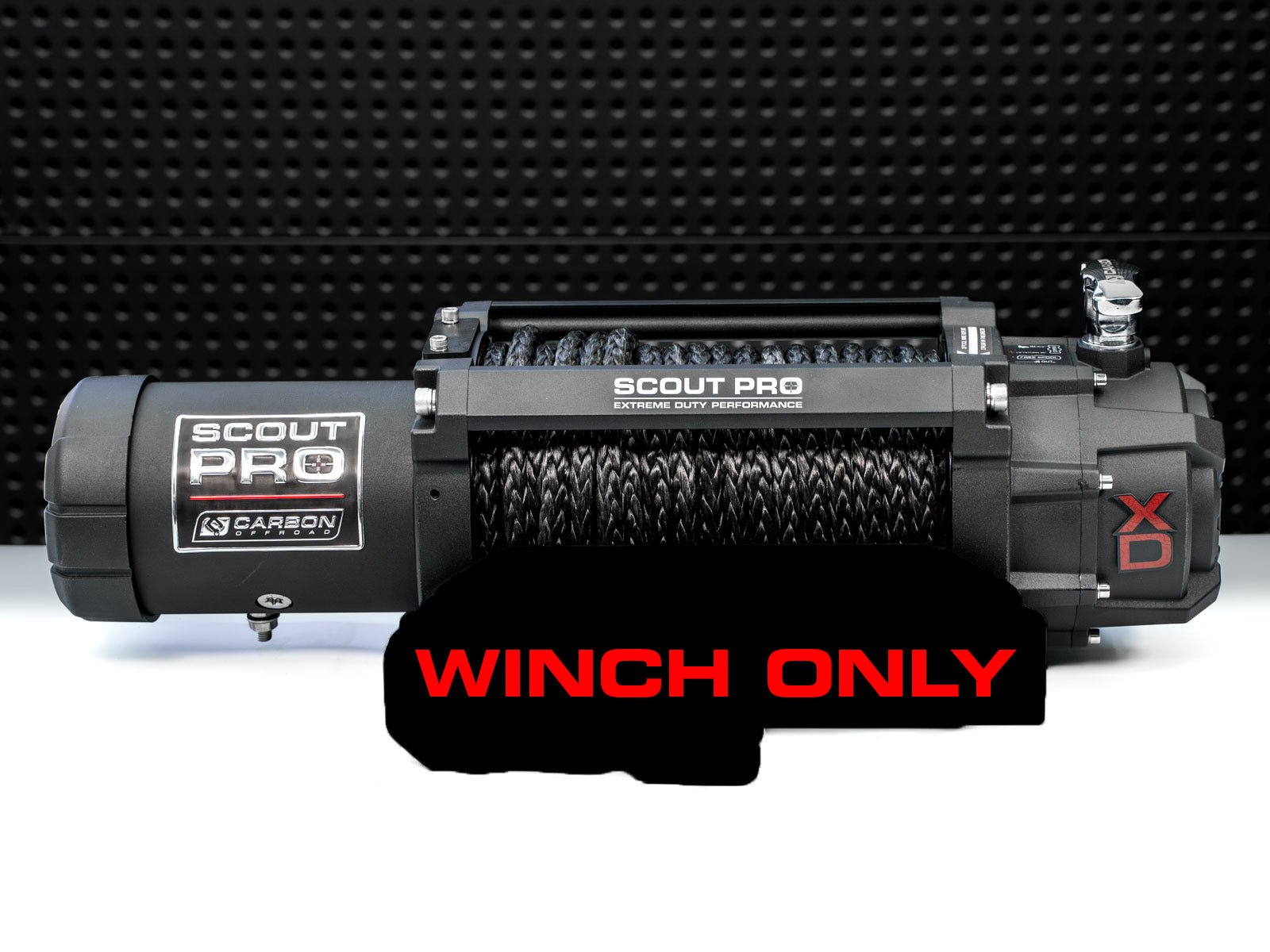

Carbon Scout Pro - 15000lb Winch V3 - WINCH ONLY

25 in stock
$629.00
$629.00 $699.00
Shipping calculated at checkout.
  • Fully secure checkout
  • Proven quality
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 10% off

Heavy-Duty Recovery Power

The Carbon Scout Pro 15K bridges the gap between standard 12K winches and truck-grade brutes. With 6804kg (15000lbs) pulling capacity, a 7HP motor, and oversized gearsets, it is built for heavily loaded overland rigs, RAM 1500s, 79 Series Land Cruisers, and slide-on camper haulers that push beyond a 12K's comfort zone.

You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

Features

  • Rated Pull: 6804kg (15000lbs) single-line, ideal for RAM 1500, 79 Series, Land Cruiser wagons, and heavy overland rigs.
  • Motor: 12V DC 7HP series-wound motor (24V option available) provides dependable torque for heavy pulls.
  • Gear Train: 3-stage planetary with a 218:1 gear ratio, balanced for strength and line speed.
  • Clutch: Rotating ring gear clutch.
  • Brake: Automatic brake integrated in motor bracket.
  • Synthetic Rope: 24m (78.7ft) of 11mm (0.4") high-strength, lightweight UHMWPE.
  • Hook & Thimble: Forged Rope Thimble & MegaPro Hook available in 10 color options.
  • Fairlead: Carbon Offroad MEGAPRO CNC billet, hard-anodized, multi-position precision alloy fairlead.
  • Remotes: Wired remote with 3.6m (11.8ft) lead and wireless remote included, operate from the cab or at the winch.
  • IP Rating: IP68 Rated for dustproof and waterproof protection in harsh conditions.
  • Warranty: Lifetime mechanical warranty, 5-year electrical warranty, and 5-year water ingress protection warranty.

Contents

1 x Carbon Offroad Scout Pro 15000lb Winch V3 (WINCH ONLY)

1 x 11mm (0.4") UHMWPE Synthetic Winch Rope



Feature Specification Metric (Imperial)
Part Number CW-XD15-V3WO
Rated Line Pull 6804kg (15000lbs)
Motor 12V DC 7HP Series-Wound
Gear Ratio 218:1
Recommended Battery Minimum 650 CCA
Mounting Bolt Pattern 254mm x 114.3mm (10.0" x 4.5")
Drum Dimensions (Diameter x Length) 63.5mm x 224mm (2.5" x 8.8")
Winch Dimensions (L x W x H) 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4")
Packing Dimensions (L x W x H) 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7")
Installed Weight 26.7kg (58.9lbs)
IP Rating IP68



12V DC Performance Specifications (First Layer of Drum)

Line Pull Metric (Imperial) Line Speed Metric (Imperial) Motor Current
0kg (0lbs) 8.5m/min (27.9fpm) 65 amps
910kg (2000lbs) 3.6m/min (11.8fpm) 120 amps
2720kg (6000lbs) 2.9m/min (9.5fpm) 160 amps
4540kg (10000lbs) 2.0m/min (6.6fpm) 215 amps
5900kg (13000lbs) 1.4m/min (4.6fpm) 265 amps
6818kg (15000lbs) 1.1m/min (3.6fpm) 380 amps



Pull by Layer

Layer Line Pull Metric (Imperial)
1 6810kg (15000lbs)
2 5765kg (12700lbs)
3 4890kg (10770lbs)
4 4145kg (9130lbs)
