MX600/3
3-Channel Class D System Amplifier, 100 W x 2 + 400 W x 1 @ 2 O / 75 W x 2 + 250 W x 1 @ 4 O - 14.4V
Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 75W x 2 into 4 ohms (14.4V, 1% THD), the MX600/3 is the perfect solution for driving a pair of speakers and a subwoofer.

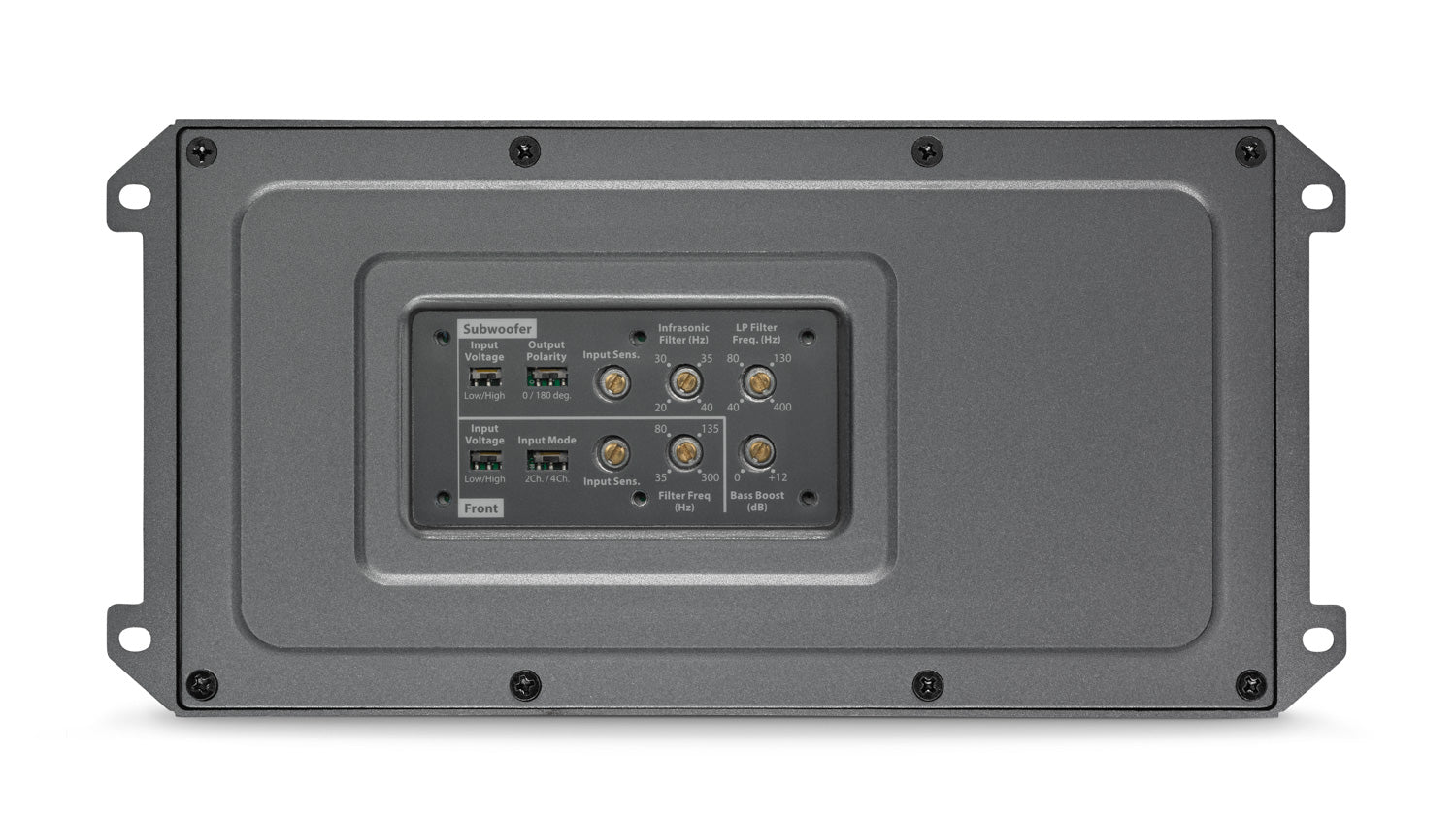

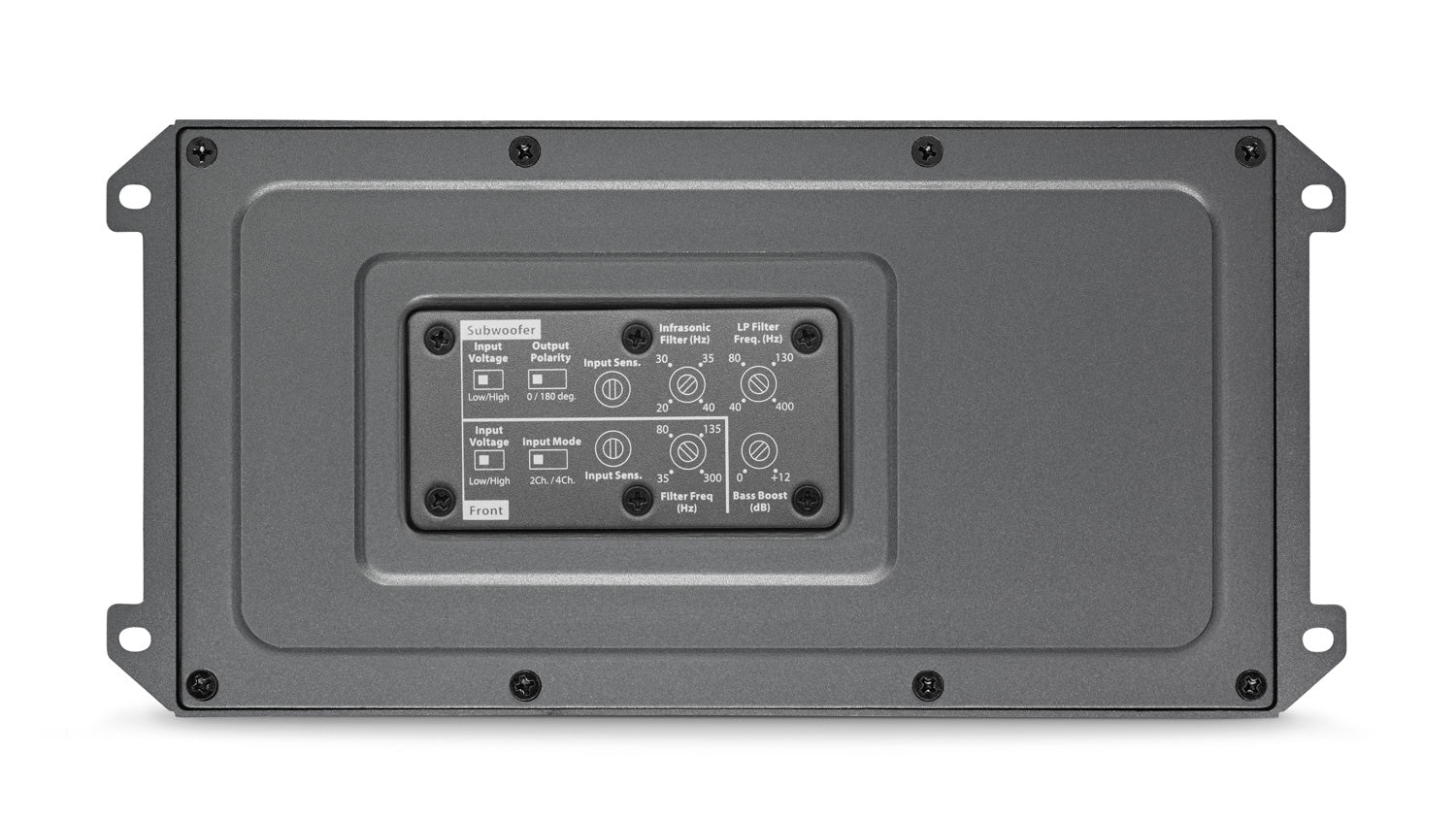

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
| Main Channels @ 4 O | 75 W RMS x 2 |
| Main Channels @ 2 O | 100 W RMS x 2 |
| Main Channels - Bridged @ 4O | 200 W RMS x 1 |
| Subwoofer Channel @ 4 O | 250 W RMS x 1 |
| Subwoofer Channel @ 3 O | 300 W RMS x 1 |
| Subwoofer Channel @ 2 O | 400 W RMS x 1 |
| Subwoofer Channel @ 1.5 O | N/A |
| Height (H) | 1.77 in / 45 mm |
| Width (W) | 9.33 in / 237 mm |
| Depth (D) | 4.50 in / 115 mm |
