L-Track Drill Guide Jig Kit

L-Track Drill Guide Jig Kit

Take the guesswork out of drilling fastener holes in your L-Track with our precision-engineered Drill Guide Jig Kit. Designed specifically for use with L-Track that comes without pre-drilled holes, this tool allows you to easily and accurately place your fasteners exactly where you need them—whether centered or offset.

Perfect for custom installations in vehicles like the Ram Promaster, Dodge Sprinter and Mercedes Sprinter Vans, this jig ensures repeatable, clean results every time.

Features:

• Aligns perfectly with the L-Track counterbore for accurate drilling

• Includes three drill guide holes: two for centered holes and one for a .050” offset for Dodge Sprinter Van

• Durable construction for consistent performance

• Designed to work seamlessly with standard 1/4-20 fasteners

Instructions for Use:

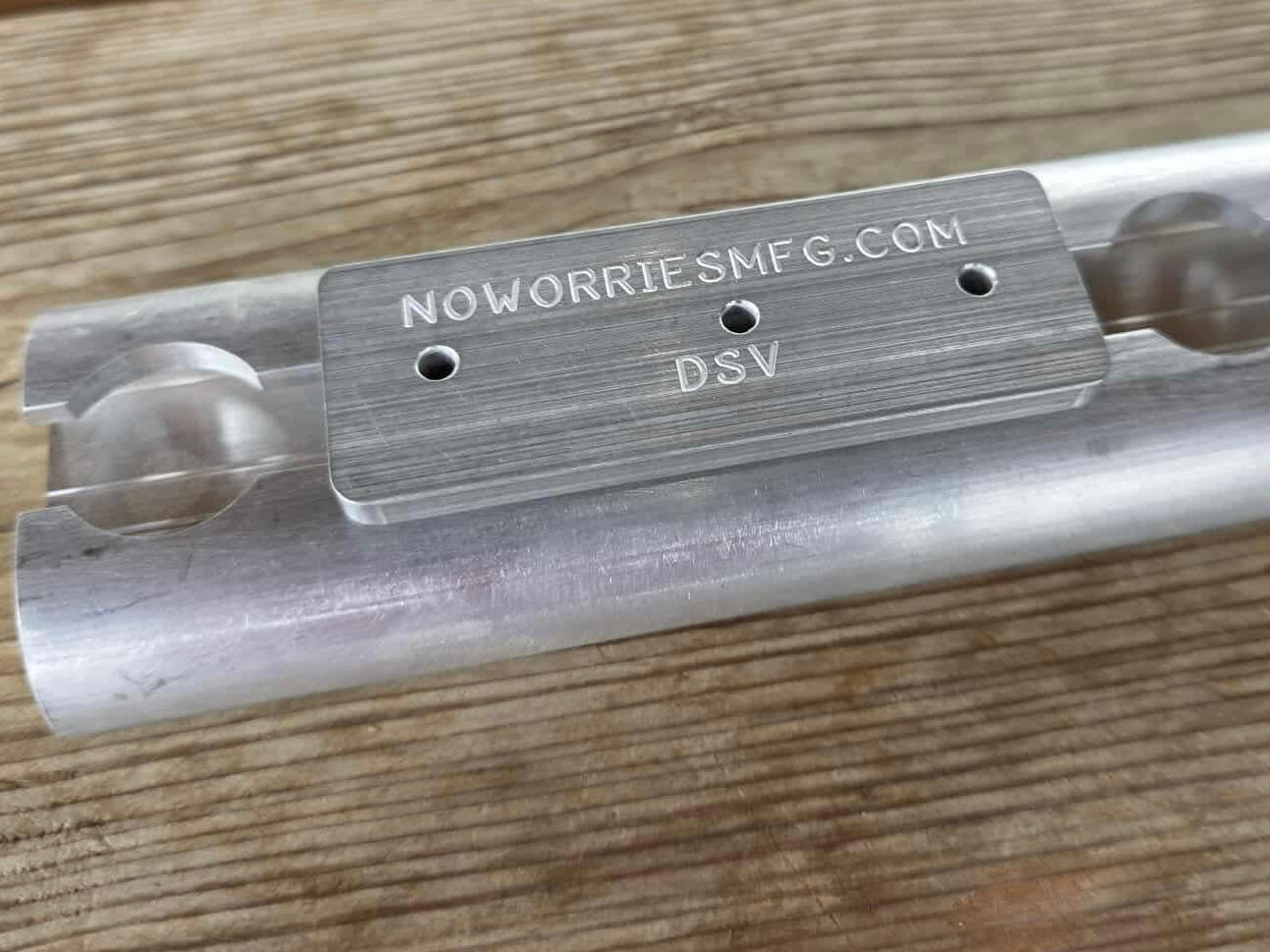

1. Position the Jig: Place the jig at the desired fastener hole location on your L-Track.

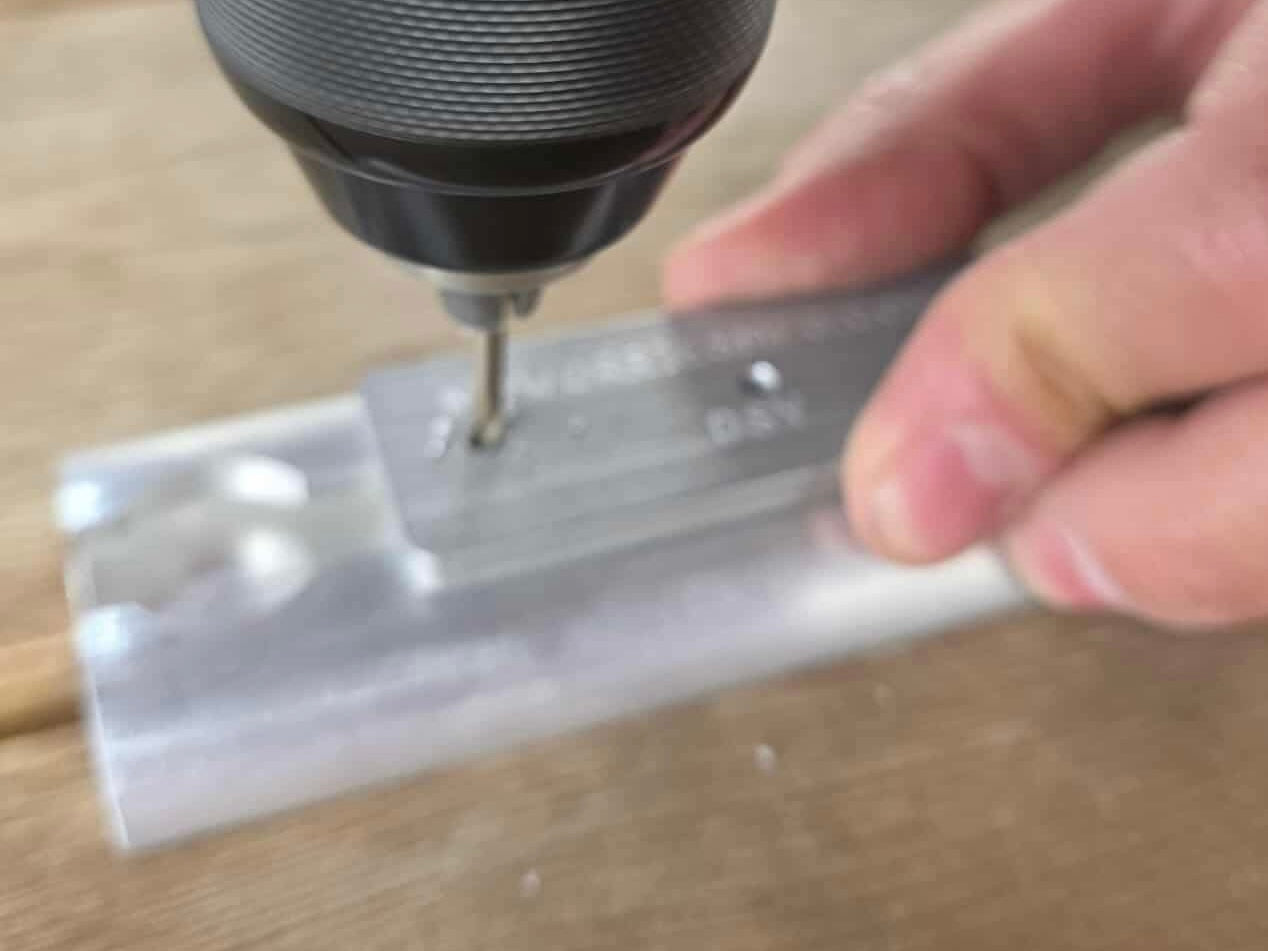

2. Drill Pilot Hole: Using the included 1/8″ drill bit, drill a shallow pilot hole (just a dimple—do not drill through the track while the jig is in place).

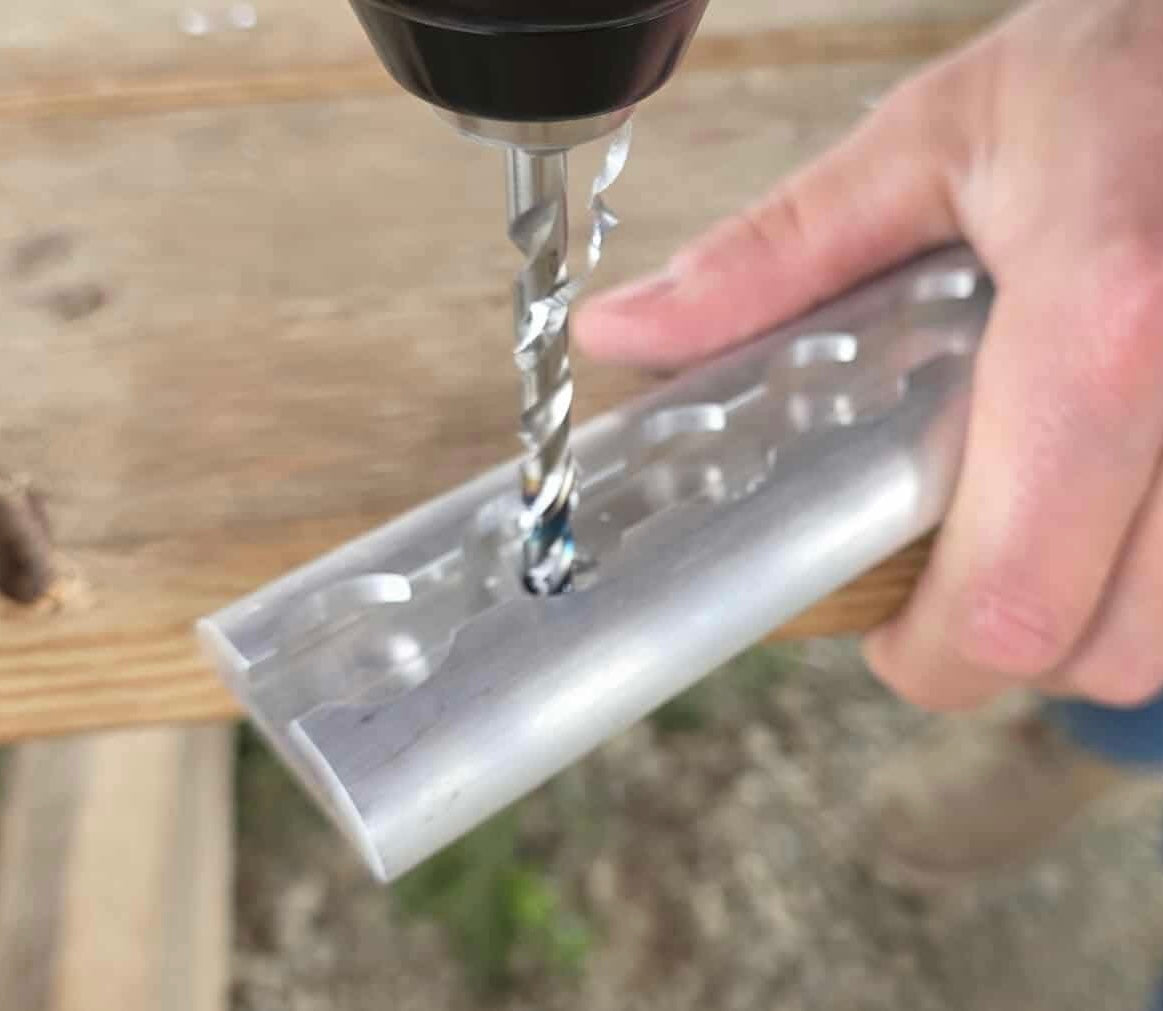

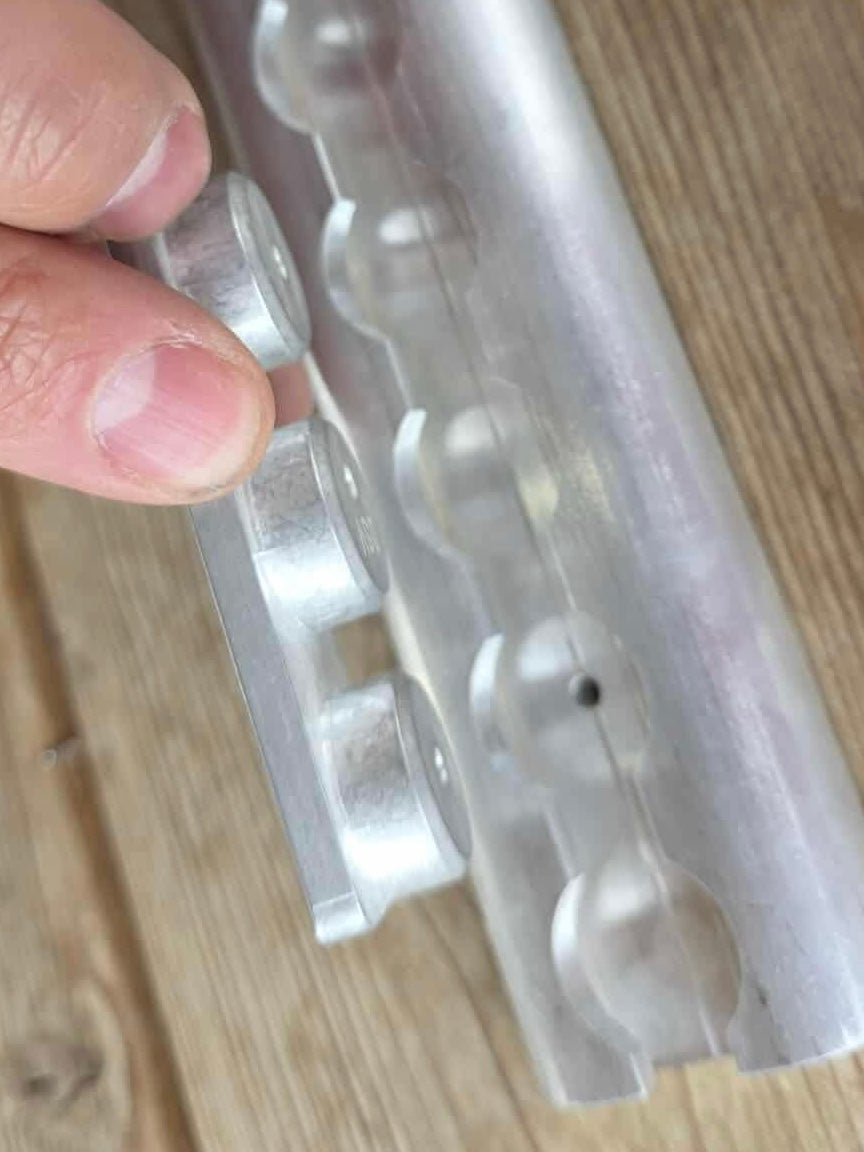

3. Remove Jig & Drill Through: Remove the jig and drill completely through the L-Track with 1/8″ drill bit then up size hole to appropriate size for your fastener.

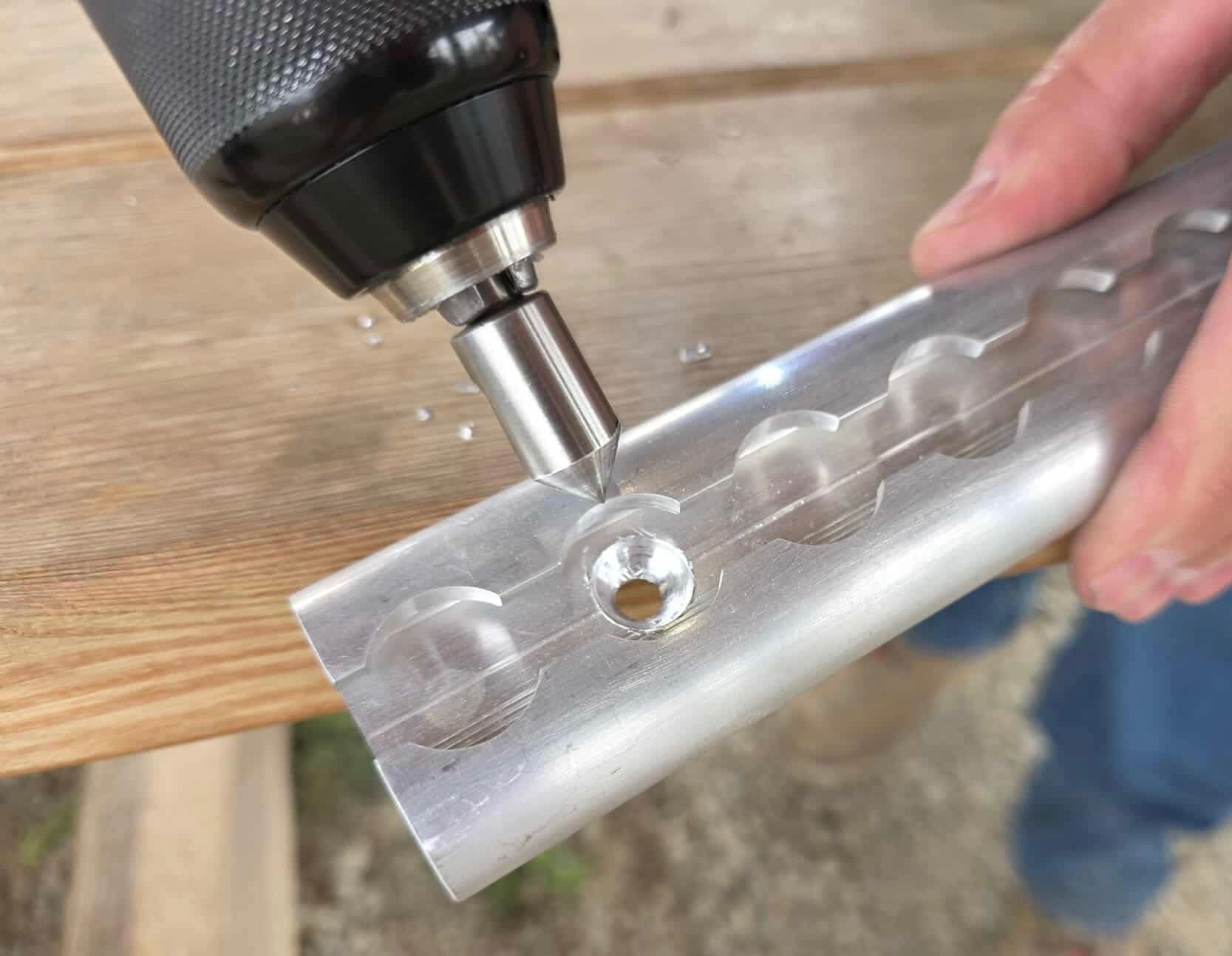

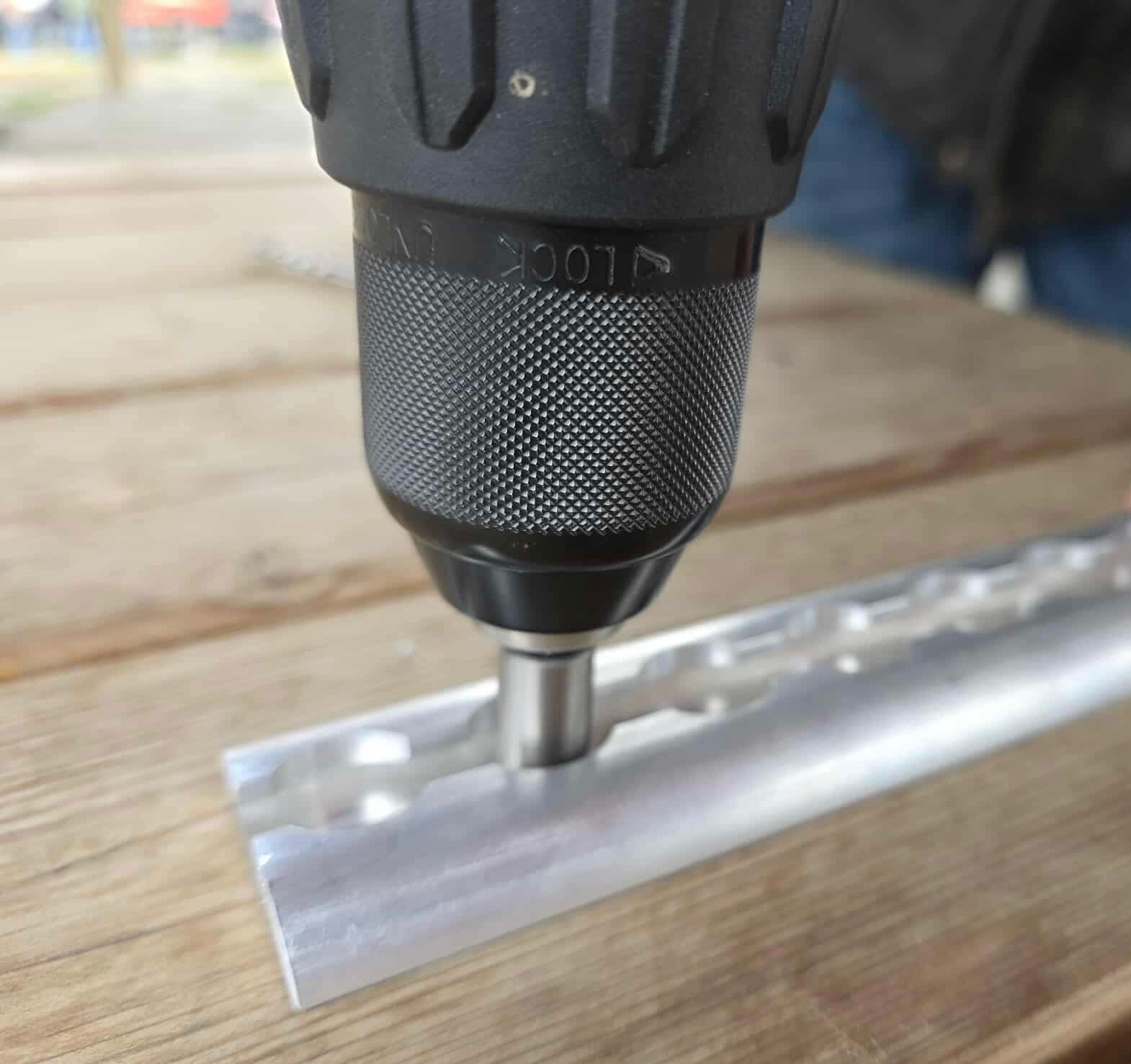

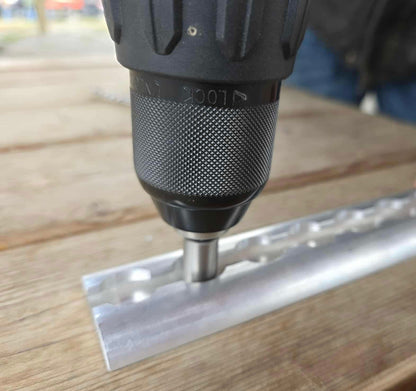

4. Countersink: Use the included 82° countersink bit to create a recess for your fastener head. Drill to the shoulder of the bit for 1/4-20 screws.

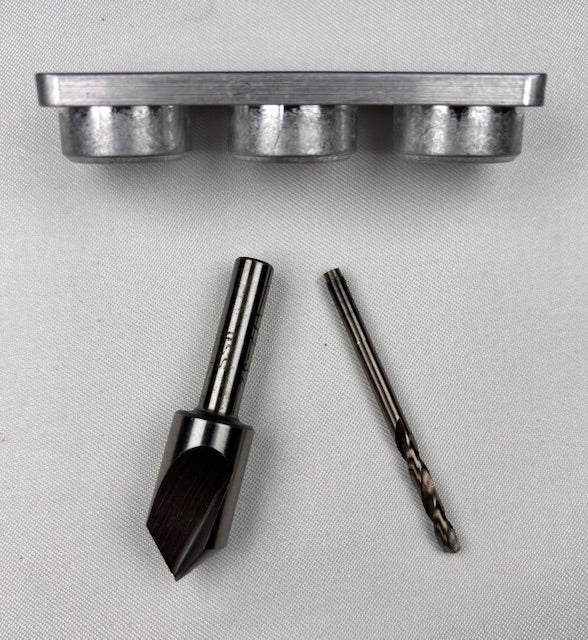

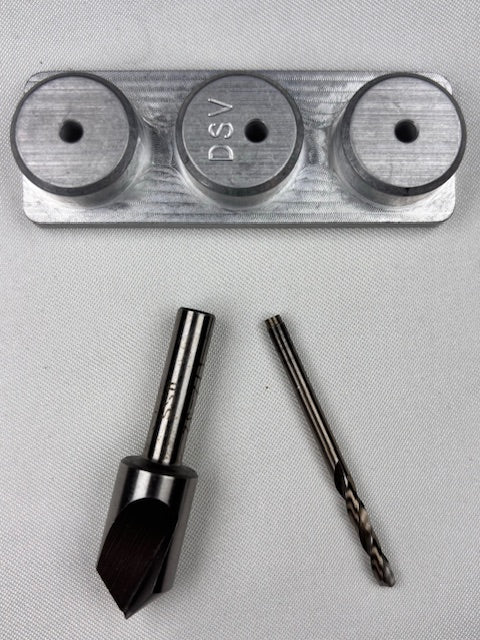

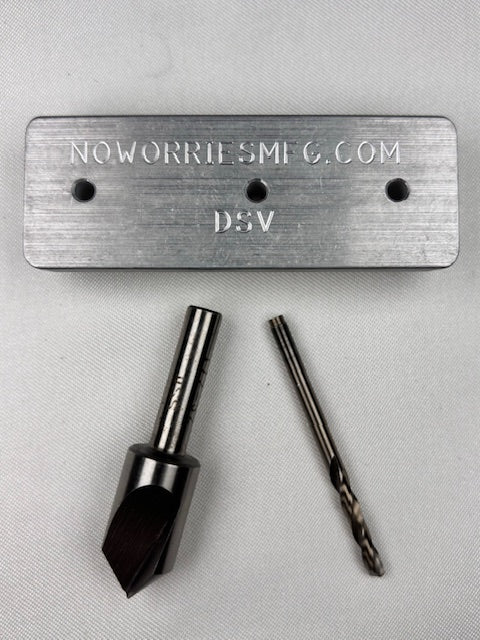

Kit Includes:

• 1) Drill Guide Jig

• (1) 1/8″ Pilot Drill Bit

• (1) 82° Countersink Bit
