Solar Panel Kit for AJ Hydraulic Trailer Jacks
Couldn't load pickup availability
- Fully secure checkout
- Proven quality
- Rated and reviewed
Solar panel kit for AJ hydraulic trailer jacks, part 70487
Keeps the jack battery topped up from sunlight, so a trailer parked between trips still has the power to run its jacks. This kit fits all AJ single and dual hydraulic trailer jacks.

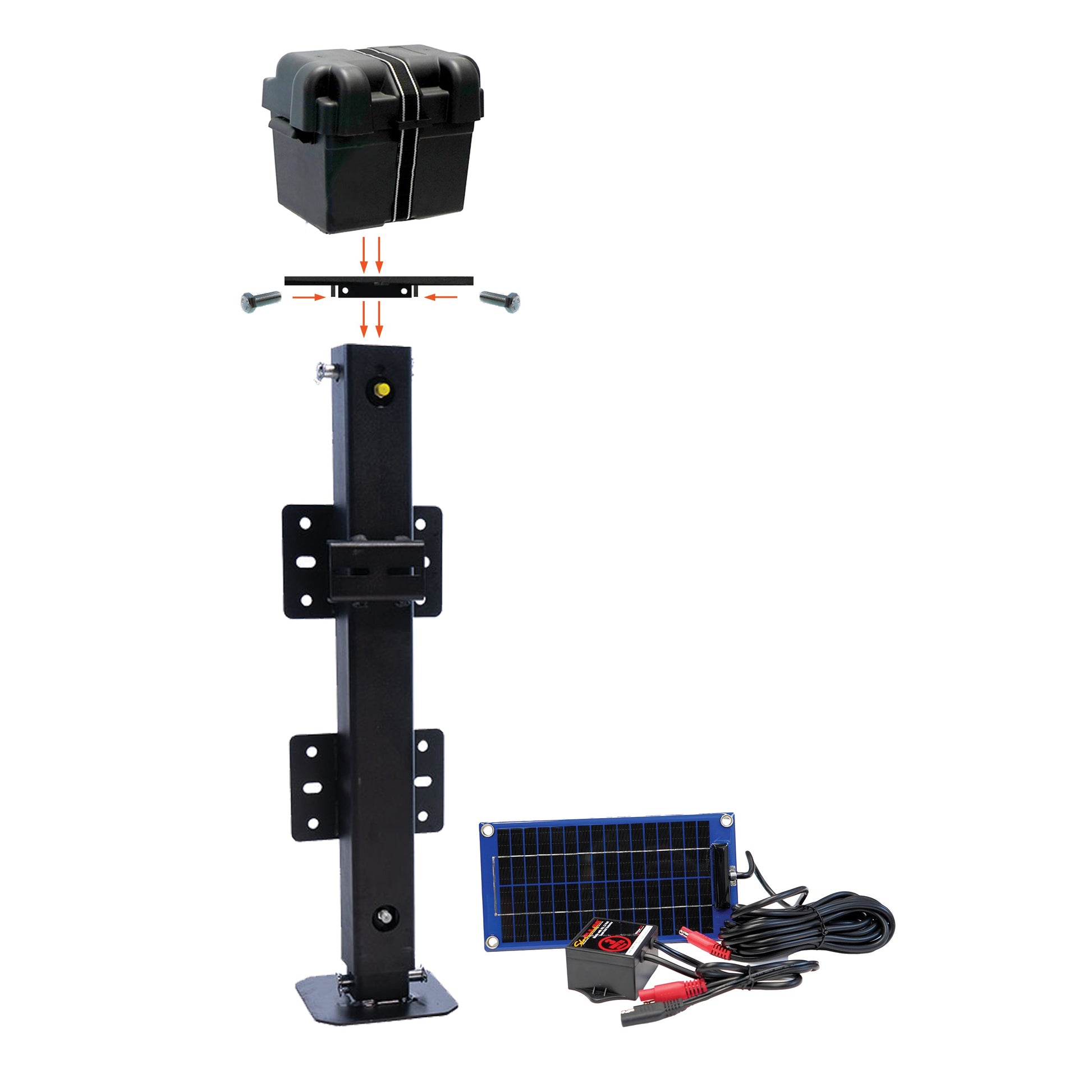

What is in the kit
- 3 watt solar panel
- Battery mounting bracket
- Self-tapping screws
- Circuit box with a 3 foot box-to-lug wire and a 17 foot box-to-panel wire
- Battery box
Battery not included.
Why a trailer jack needs charge support
EQ Systems hydraulic pumps are not light loads: EQ Systems recommends load testing the battery, which should deliver a minimum of 150 amperes at a minimum of 10.5 VDC for at least 30 seconds. A trailer battery that has sat for weeks will often run a jack part way and stall, which reads as a pump fault when it is a power fault.
The AJ series
AJ jacks lift 8,000 lbs single and 16,000 lbs dual, with a 24 inch stroke on a 3.5 by 3.5 inch tube. Manual override is standard on both, so a flat battery never leaves you stranded, but it does mean driving the override with a drill.
Other ways to keep the battery up
If the trailer is regularly connected to a tow vehicle, Stay Charge parts 8400 and 8427 charge the trailer battery from the vehicle instead.
