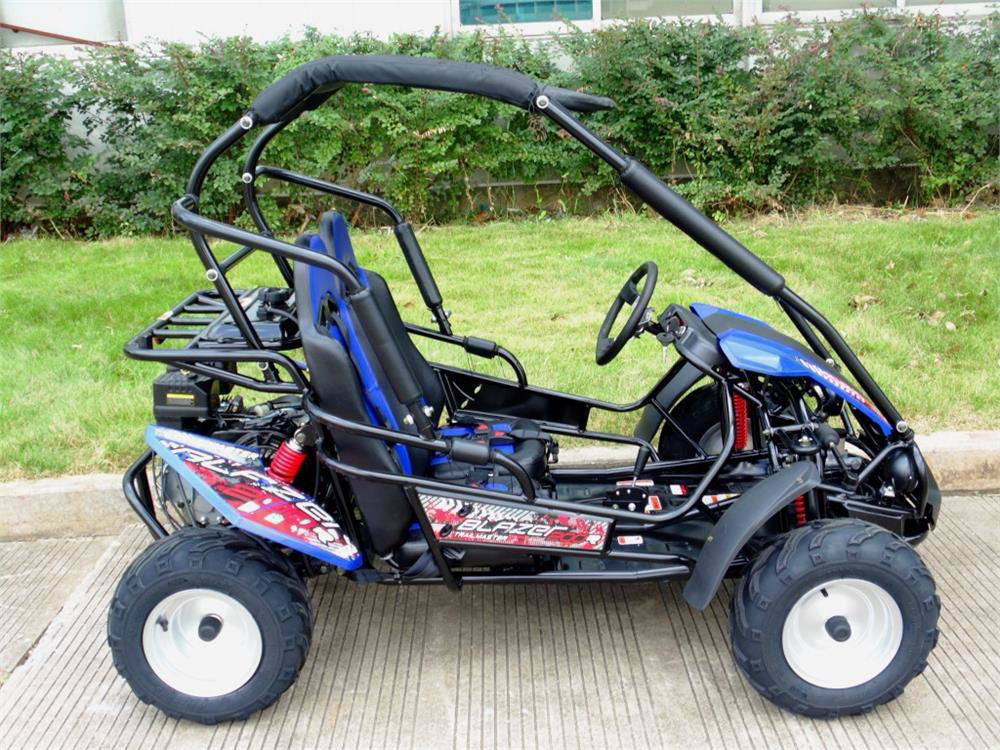

TrailMaster Blazer 200R MID-Size Go Kart, 7.5hp Torque Converter, Electric Start Reverse, Kids Ages 7-12
Couldn't load pickup availability
- Fully secure checkout
- Proven quality
- Rated and reviewed
The TrailMaster Blazer 200R is an awesome mid-sized kart with stylish design, Full Suspension, Deluxe Seats, Fenders, Rack, headlights, and Horn.
We can ship it to you MOSTLY ASSEMBLED! with this option selected, only roll bars, head rests and battery will need to be installed. This cuts assembly time from about 2 hours down to about 20 minutes! Assembled vehicles must still be uncrated and setup by customer's qualified mechanic prior to operation. This option adds 5 days to delivery time.
FEATURES
- Popular stylish design
- Powerful 208cc 7.5HP OHV engine
- Electric start with pull start backup, can start without battery
- Fully automatic with reverse
- Torque converter CVT system, more low-end torque
- Canopy top
- Manual choke operating from dashboard
- LED headlight
- Horn
- All-wheel fenders
- Big tires: F / R: 16x6-8 / 16x7-8
- Rack and pinion steering wheel
- Hydraulic disc brake
- Padding over roll cage
- Individual sporting seats
- Adjustable driver seat: pedal to seat back adjustable from 34 to 39
- Easy assembly
Parts Manual
EPA & CARB Certificated
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 196cc
Max HP: 6.3hp/3600rpm
Max torque: 9.6 lb ft/2500rpm
Bore x stroke: 2.6 x 2.1 inches
Max speed: 31mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric / Pull backup
Battery: 12V 9Ah
Carburetor brand: JF (RX)
Engine oil: SG15W-40
General Information
Clutch: Automatic CVT with reverse
Drive: Chain / Dual wheel drive
Suspension, F/R: Double A-arm / Shock
Brakes, F / R: No / Hydraulic brake, Disc
Tires, F / R: 16x6-8 / 16x7-8
Fuel capacity: 1 gal
Weight, G.W. / N.W.: 386 / 330 lbs
Max load: 400 lbs
Dimension Information
Wheelbase: 48.4 inches
OA L x W x H: 67x43.3x51.2 inches
Height to seat: 10.2 inches
Min ground clearance: 2.8 inches
Pedal to seat back distance: 34-39 inches
Support
Shipping: Free
Assembly: in the crate
Owner Guides: download
Parts: factory replacement parts
Warranty: 30/90 parts
