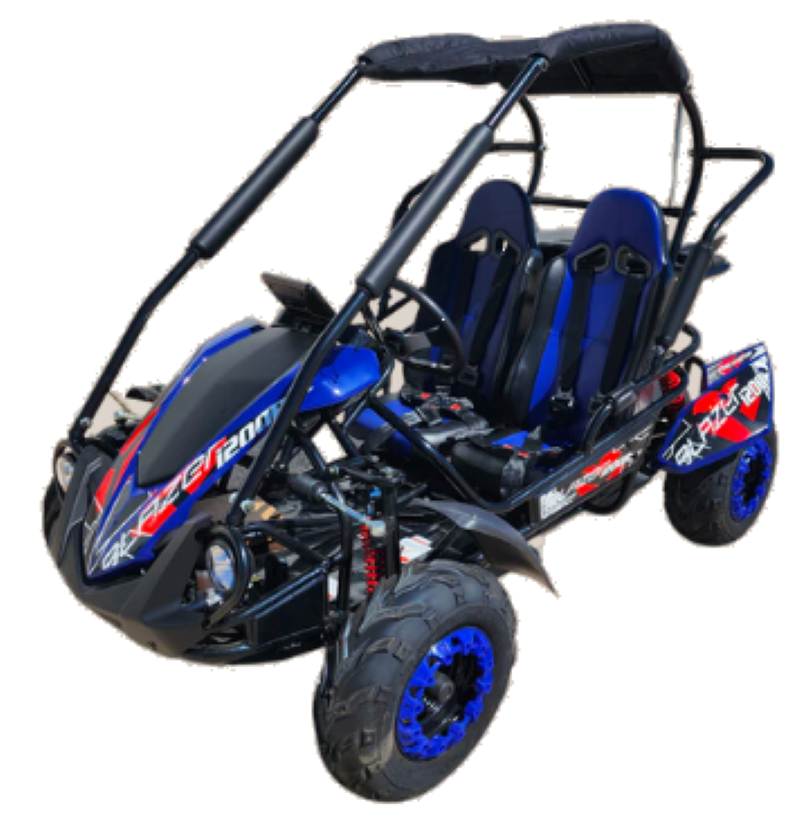

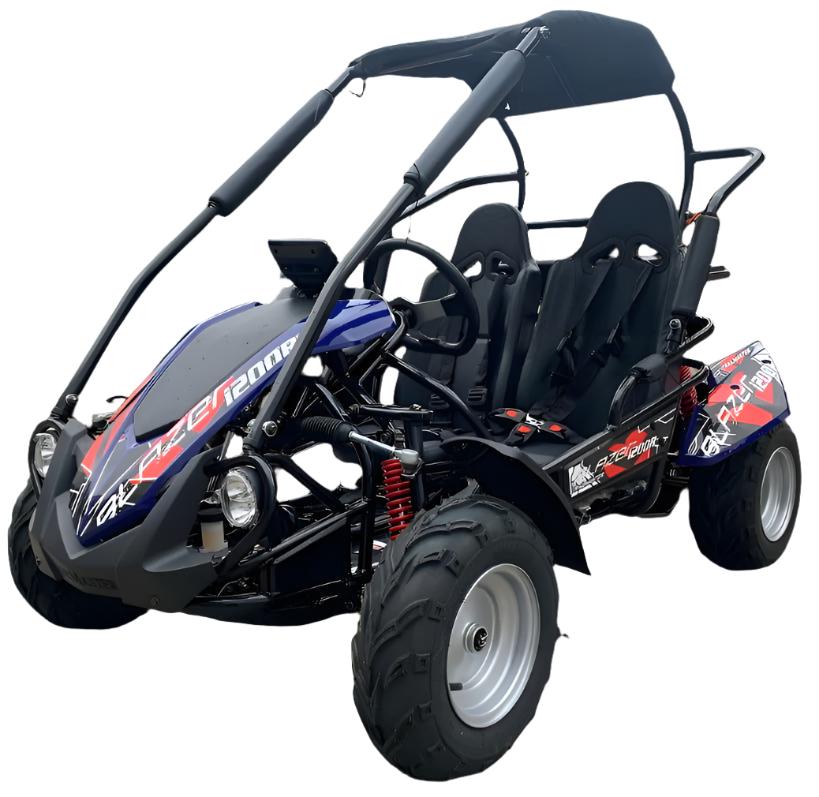

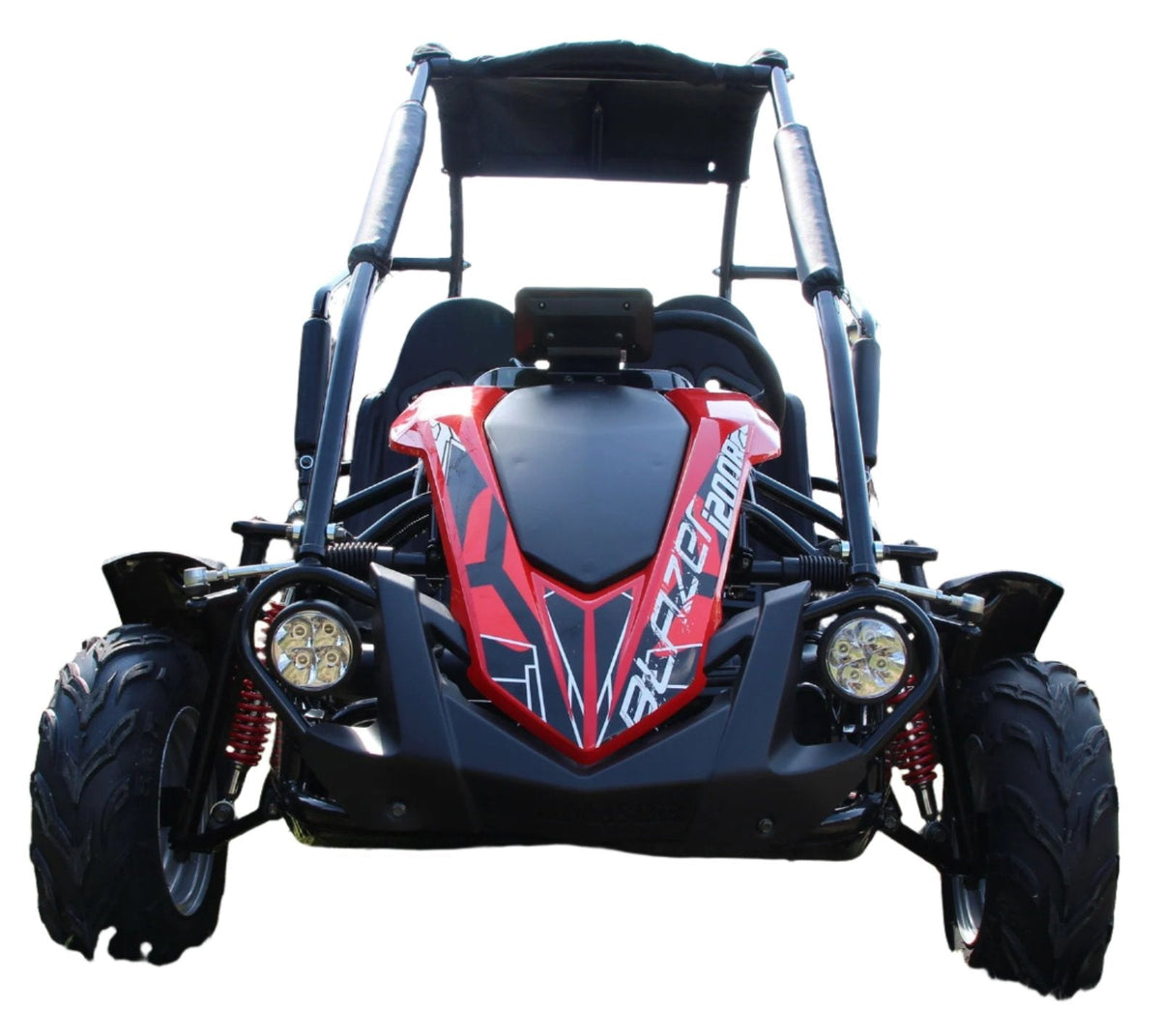

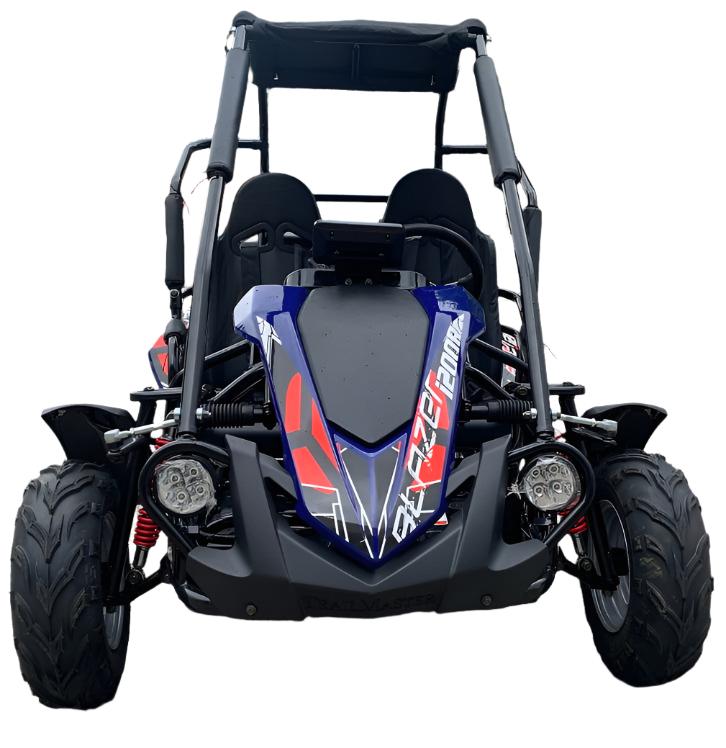

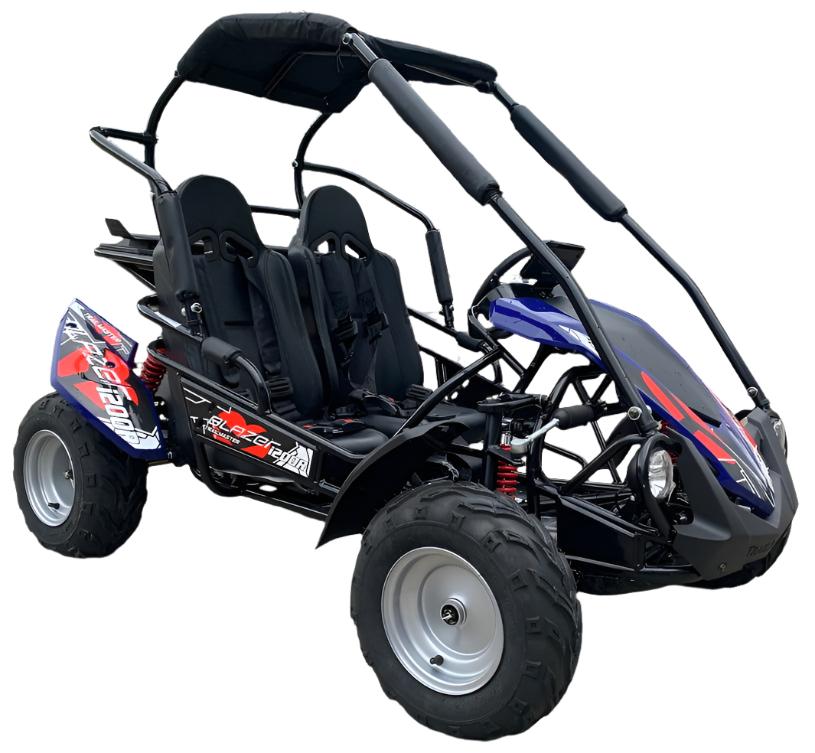

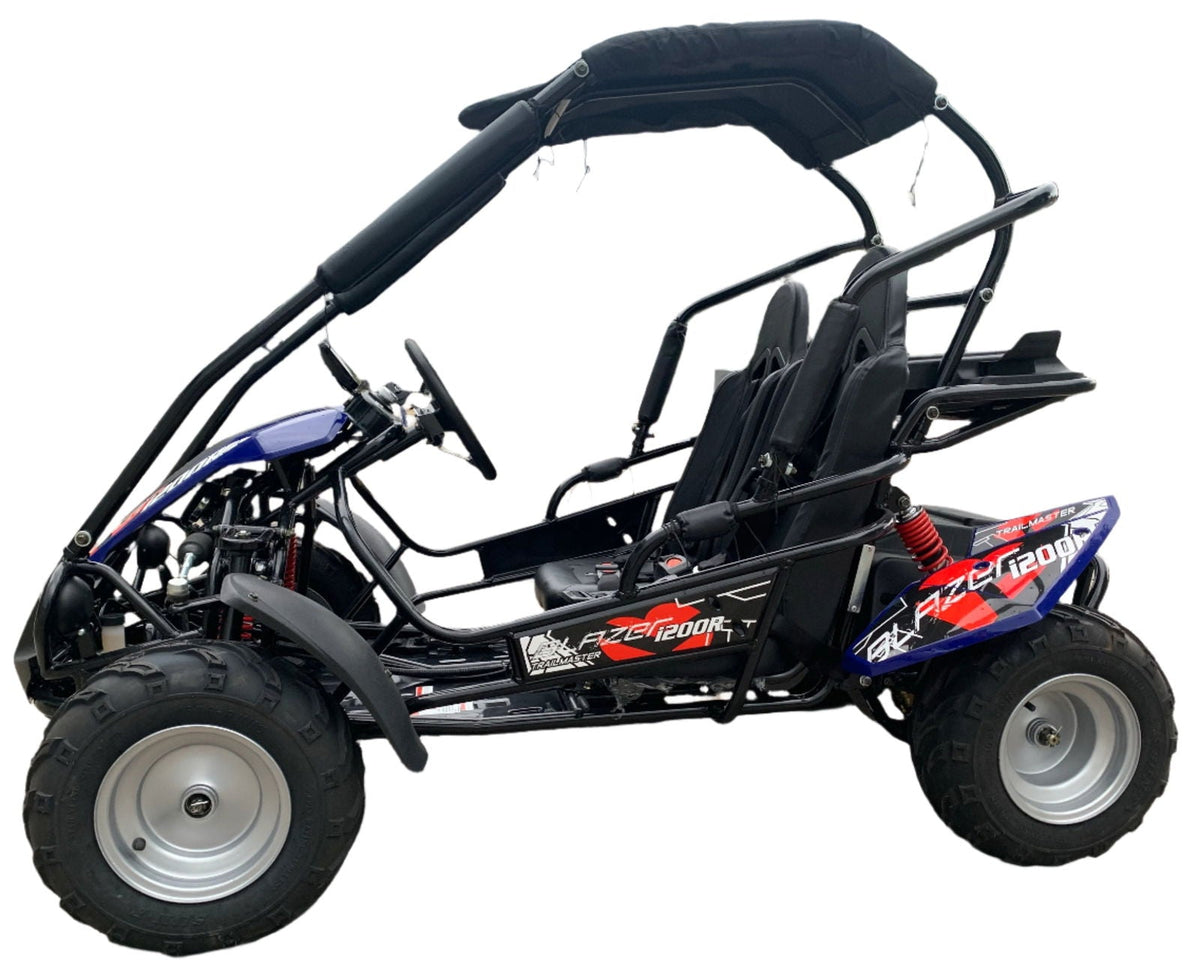

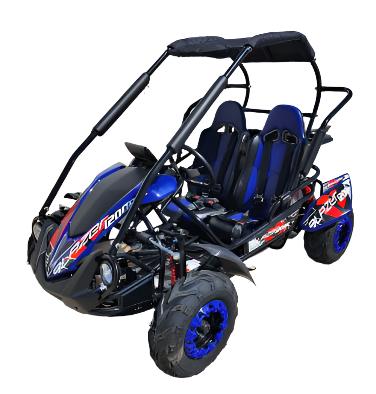

TrailMaster Blazer i200R Electric Go Kart, 48v Lithium Battery, Mid-Sized, Kids Ages 7-12

The TrailMaster Blazer i200R Electric Go Kart is a powerful, safe, long-lasting model. Its 48V, 29Ah Lithium battery provides up to 36 miles of driving range. It offers two speed modes, topping out at 27 MPH and has enough low-end torque to climb 20 degree slopes. Boasting additional features like a Digital LED monitor, a canopy, 5-Point safety harness, and hydraulic disc brakes, it is safe and easy to use.

Key Features

• Powered by 48V, 29Ah Lithium battery

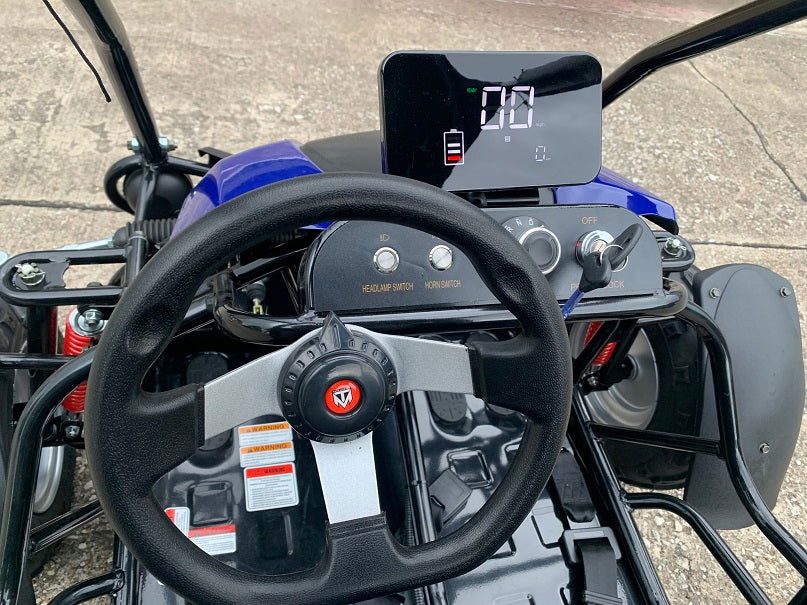

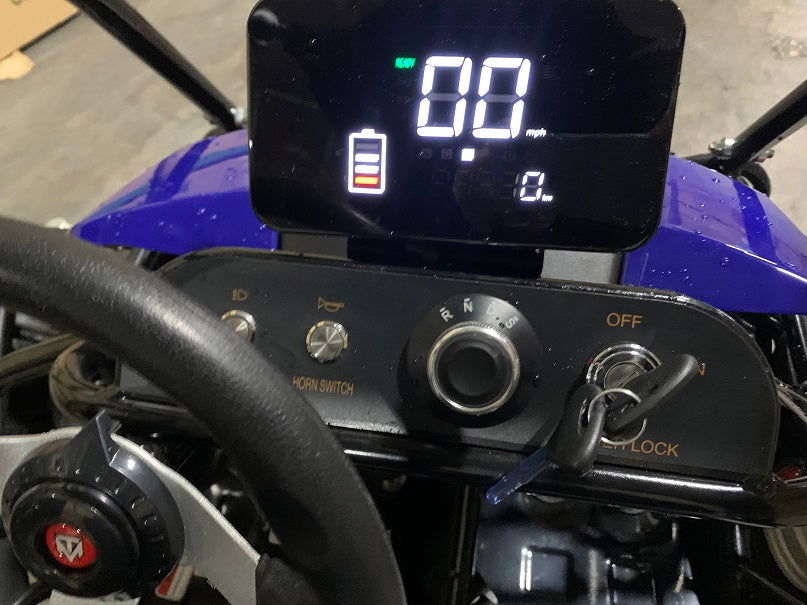

• Digital LED top speed only 15M/h; with “S” mode top speed 27M/h
• Strong low-end torque and able to climb 20 degrees slope
• Canopy top
• 5-Point safety harness seatbelt
• LED headlight
• Horn
• All-wheel fenders
• Big tires: F / R: 16x6-8 / 16x7-8
• Rack and pinion steering wheel
• Hydraulic disc brake
• Padding over roll cage
• Individual sporting seats
• Adjustable driver seat: pedal to seat back adjustable from 34” to 39”

Detailed Specifications

Battery

• Nominal Voltage: 48V
• Rated Capacity 29Ah
• Charging Temperature Range: 32 °F to 115 °F

• Storage Temperature Range: 14 °F  to 115 °F

• Cycle Life: Cycle to 60% at normal temperature, 100% DOD >= 600 times

• Charging Time: 9h

• Range: 36 miles max depending on weight, speed and driving conditions.

• Factory Battery Warranty: 2 Year Limited (Manufacturer's Discretion)

Drive Motor

• Service Voltage: 60V
• Rated Power: 1.8KW
• Output Power: 1.4KW
• Rated Speed: 4350RPM
• Rated Current: 33A
• Rated Torque: 4Nm
• Max Torque: 87Nm/450A
• Current limit: 75A

General Information

• Suspension, F / R: Double A-arm / Double Oil Damped Shock
• Brakes: Rear Hydraulic brake, Disc
• Tires, F / R: 16x6-8 / 16x7-8
• Weight, G.W. / N.W.: 435 / 352 lbs
• Max load: 440 lbs
• Driving Mode: R-N-D-S
• Max speed: 15mph on “D” mode; 27 mph on “S” mode
• Climbing ability: 20 degrees
• Wheelbase: 48.4 inches
• Height to seat: 10.2 inches
• Min ground clearance: 2.8 inches
• Pedal to seat back distance: 34-39 inches
• OA L x W x H: 67x44x51.2 inches
• Crate size: 70X44X26 inches
