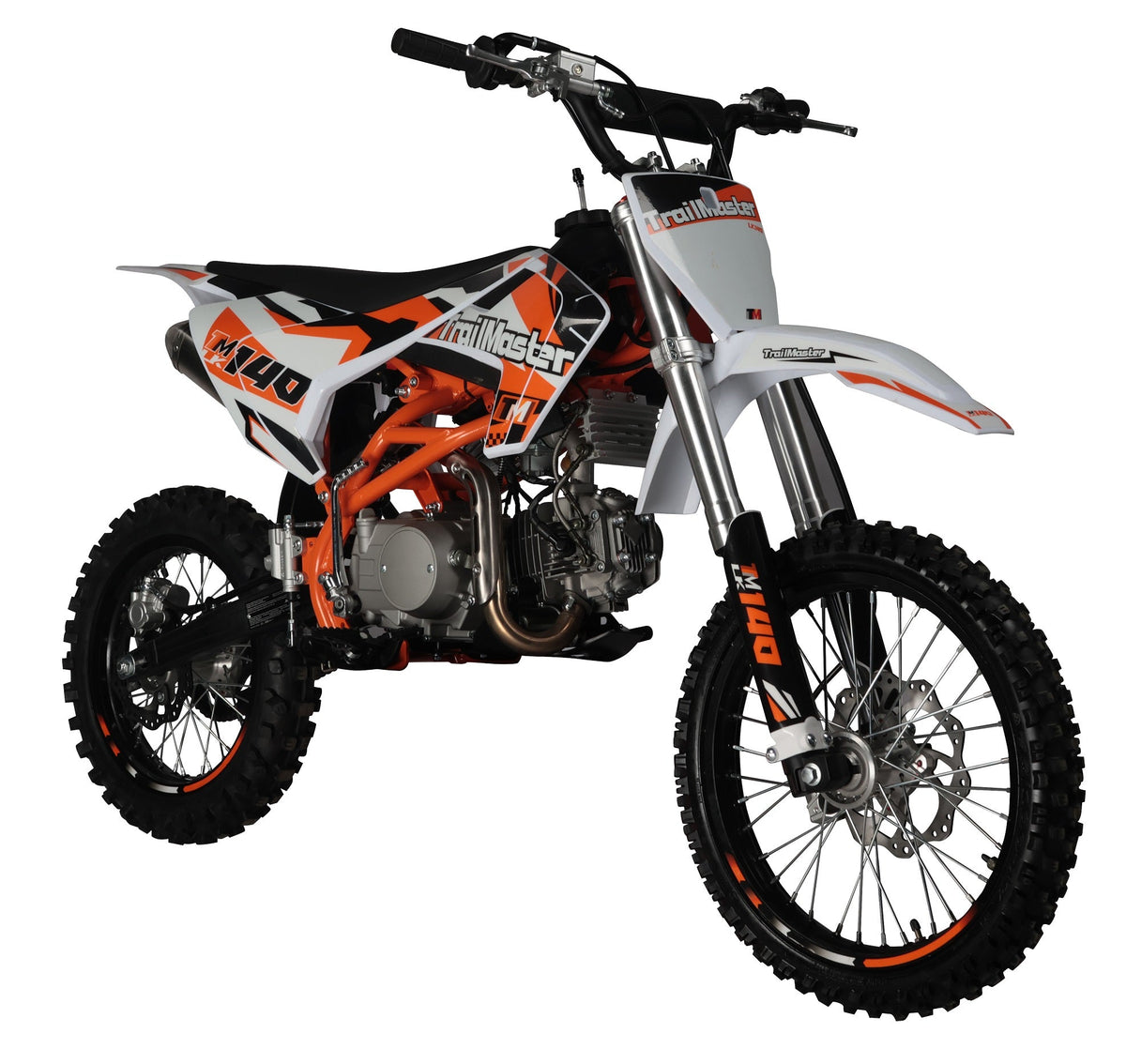

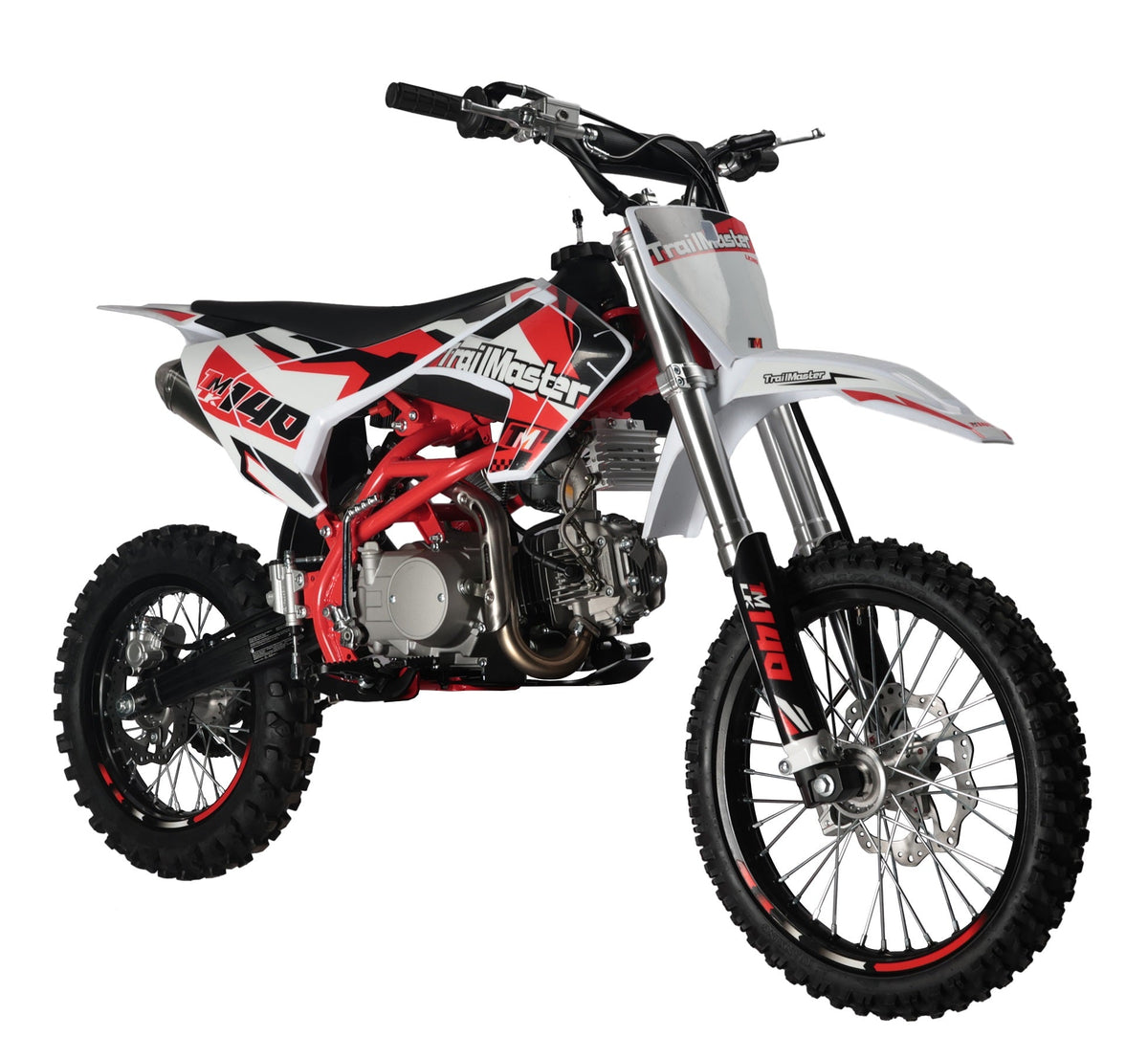

TrailMaster LK140 Pro Series Dirt Bike, Electric Start, 4-Speed Manual, Dual Disc Brakes, (17/14) Wheels
Couldn't load pickup availability
- Fully secure checkout
- Proven quality
- Rated and reviewed

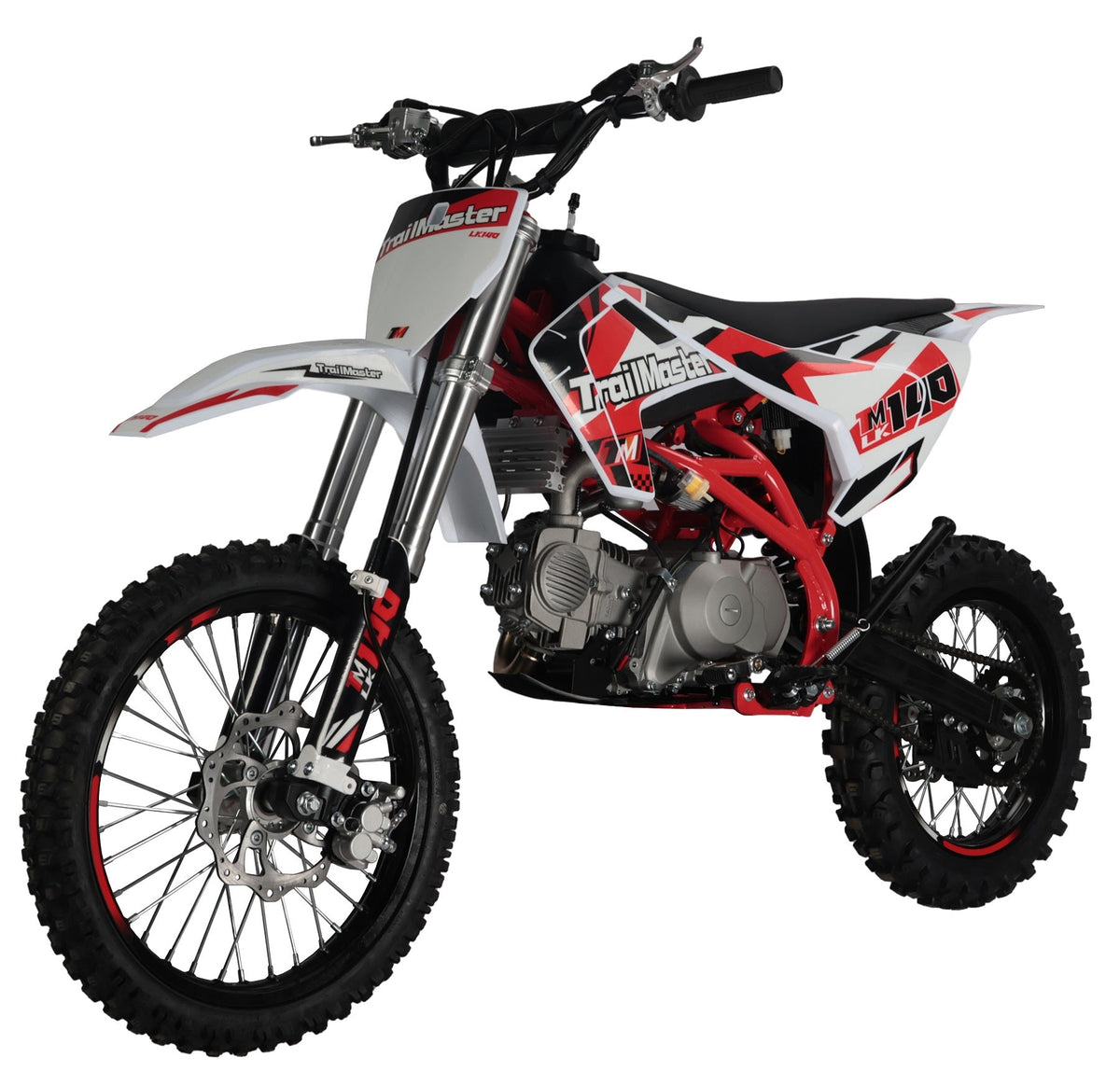

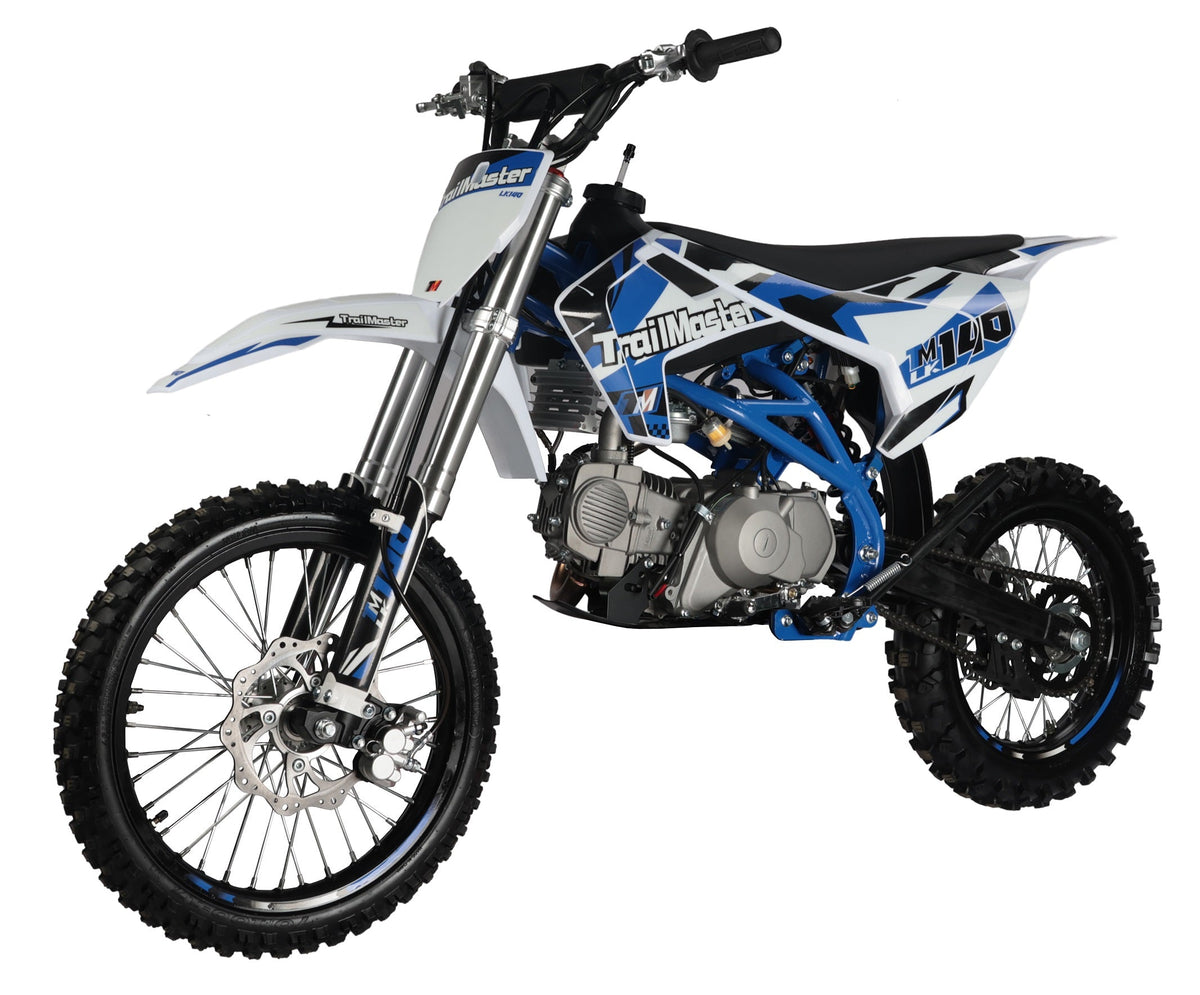

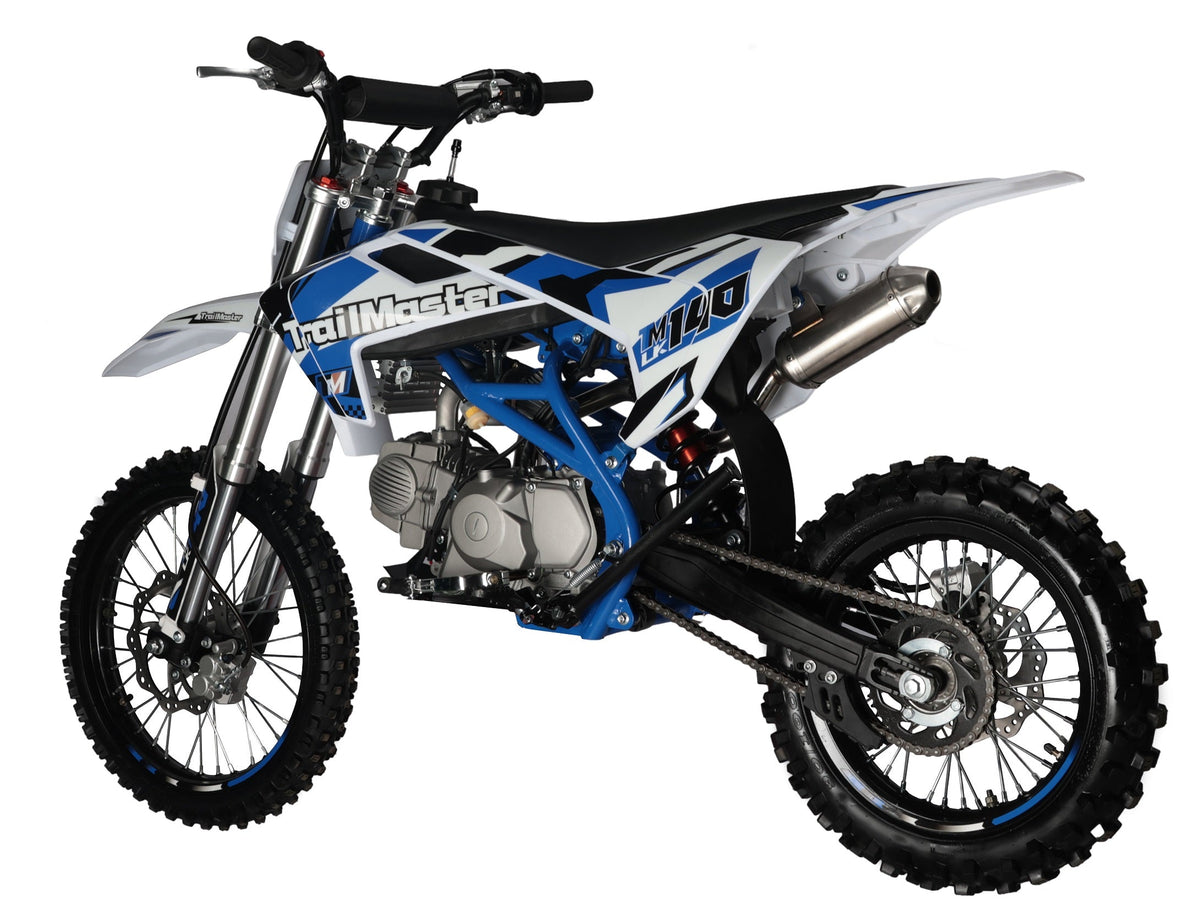

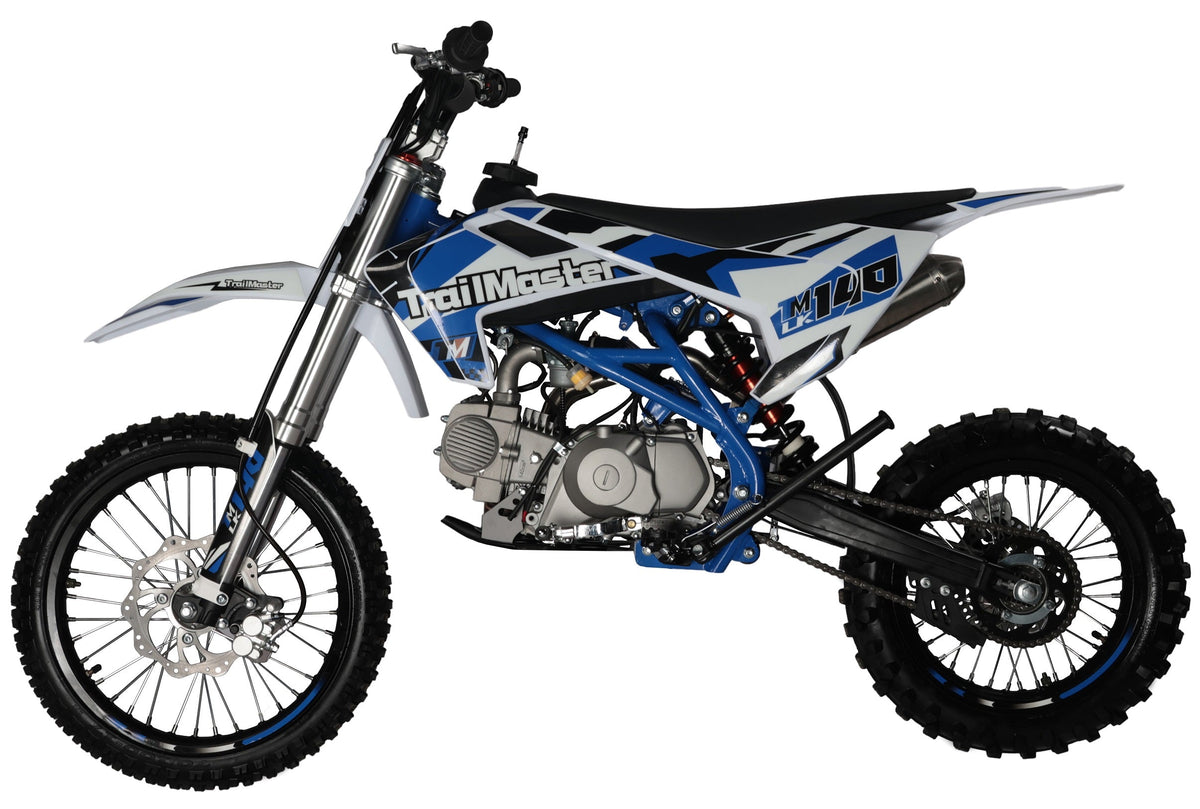

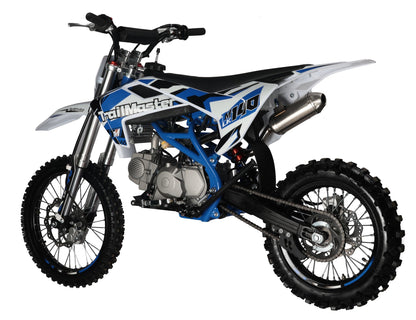

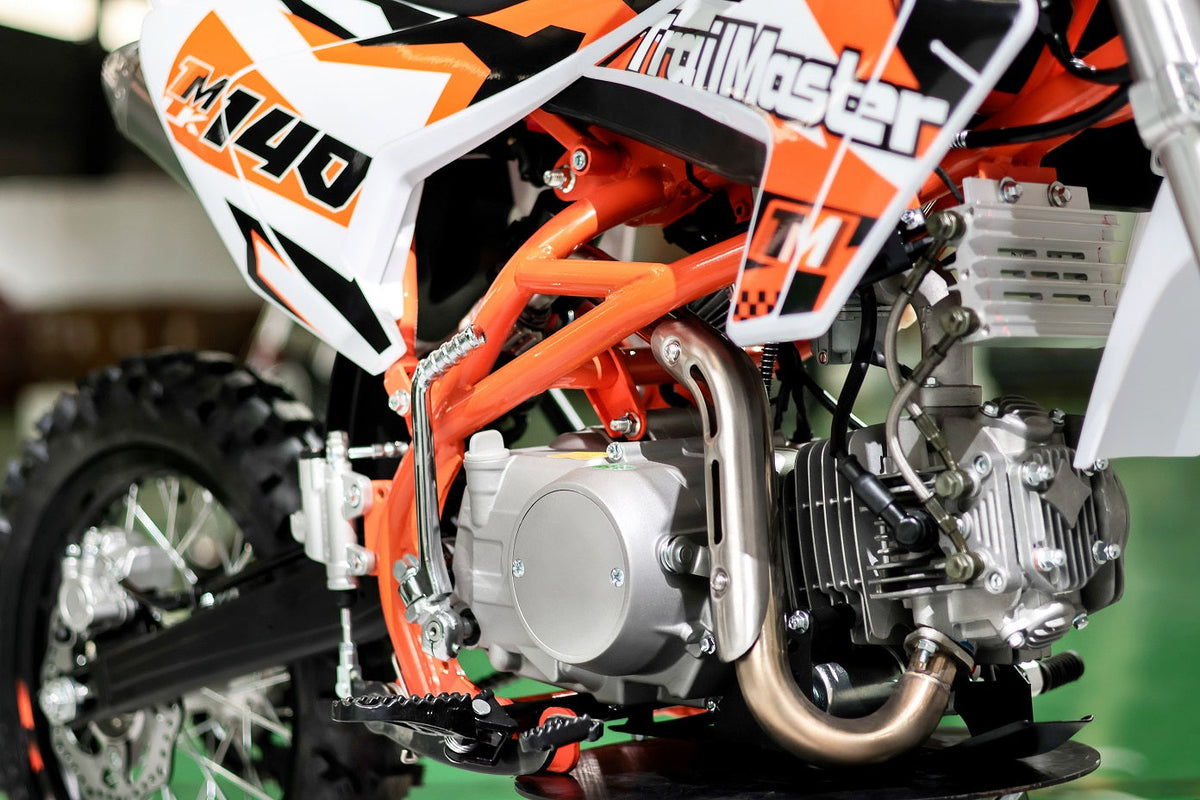

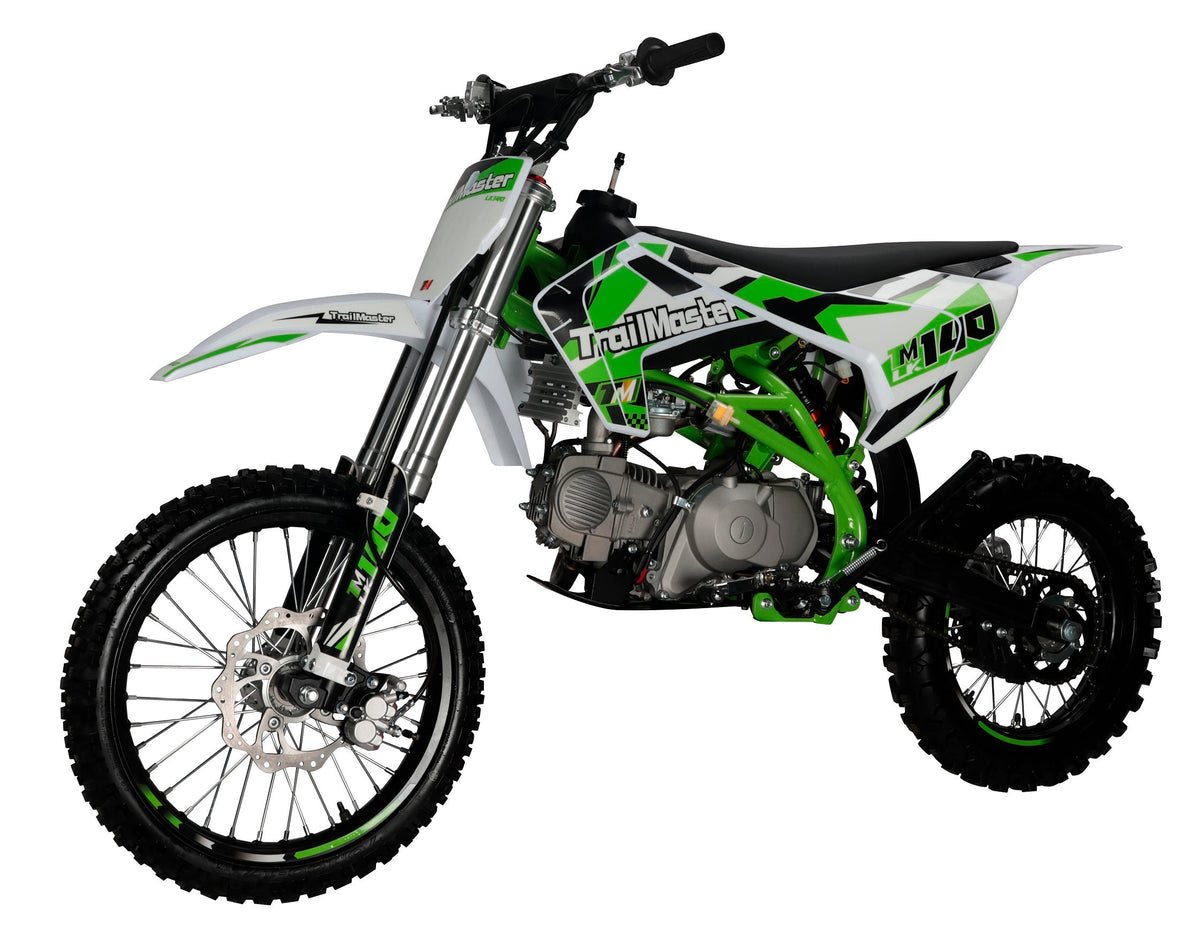

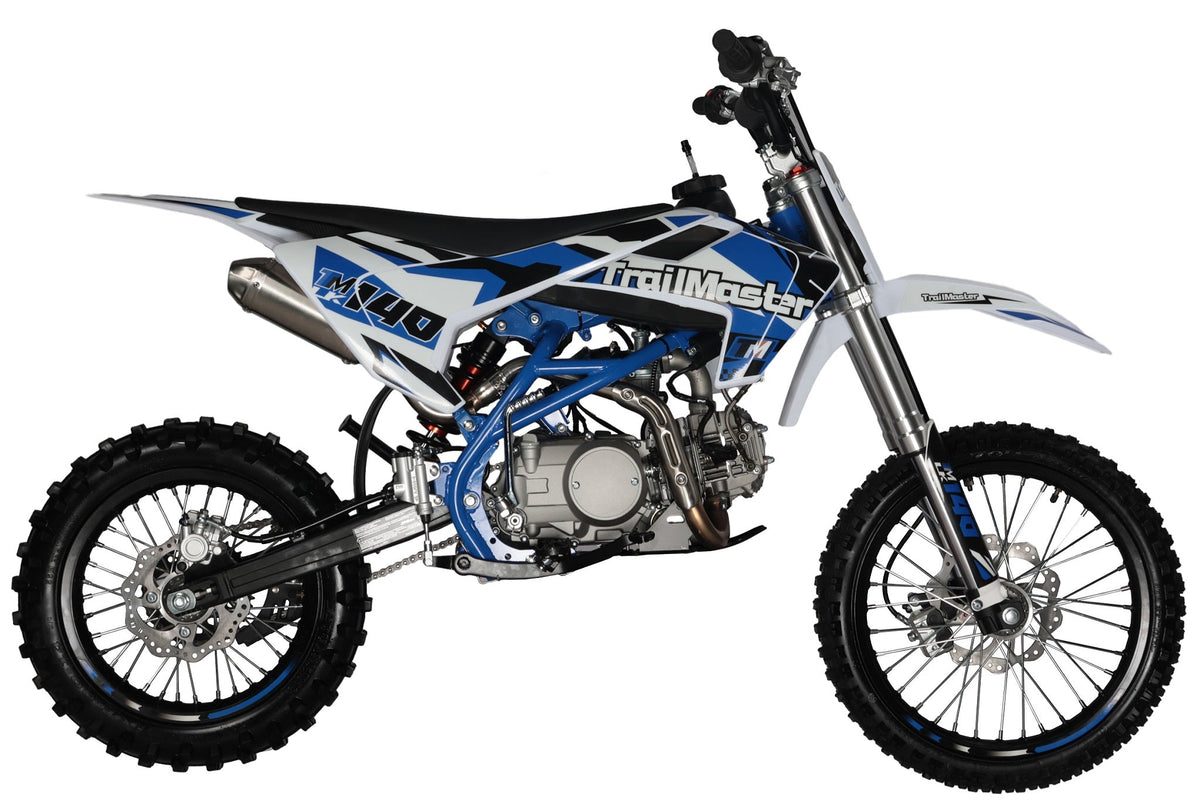

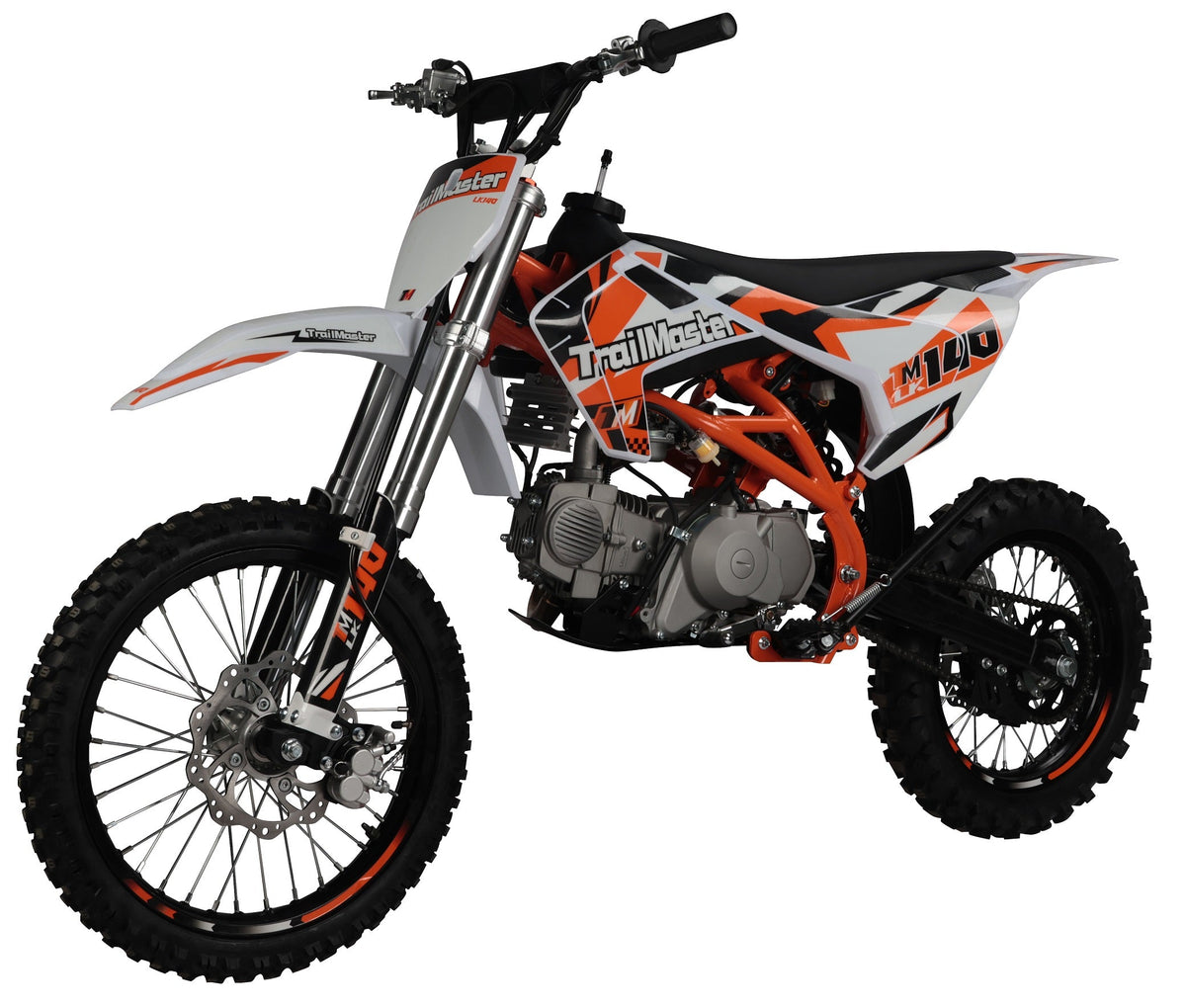

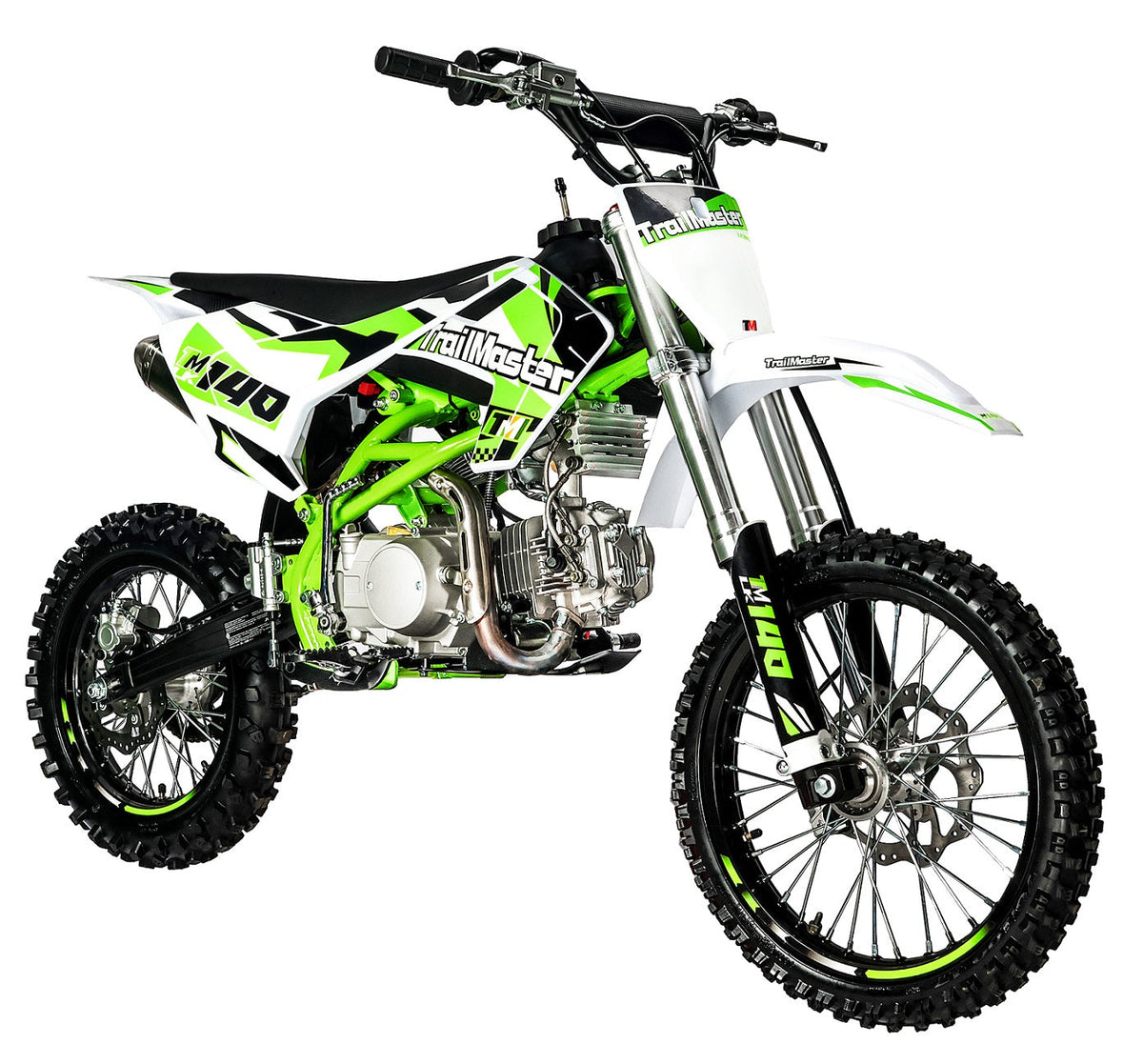

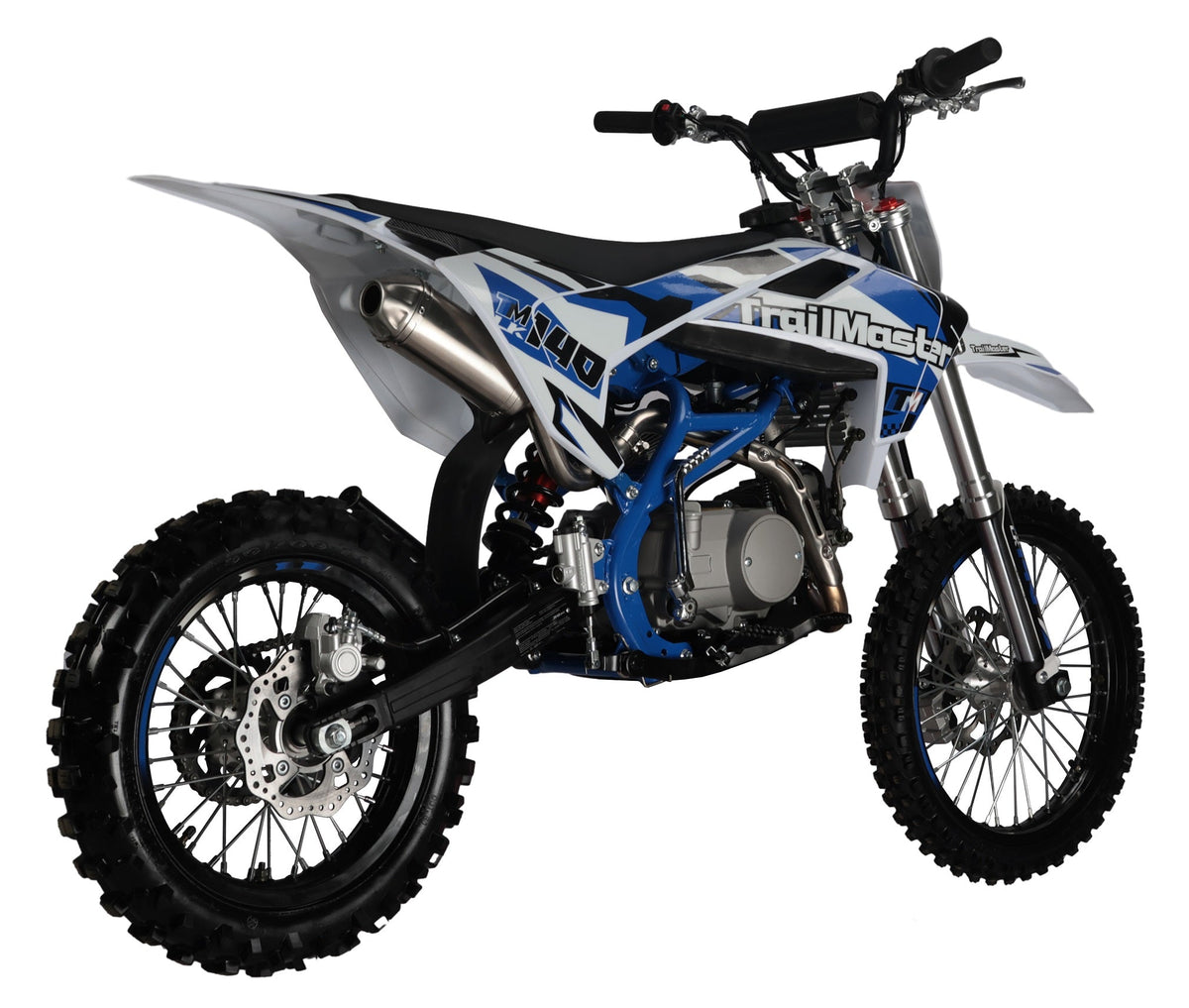

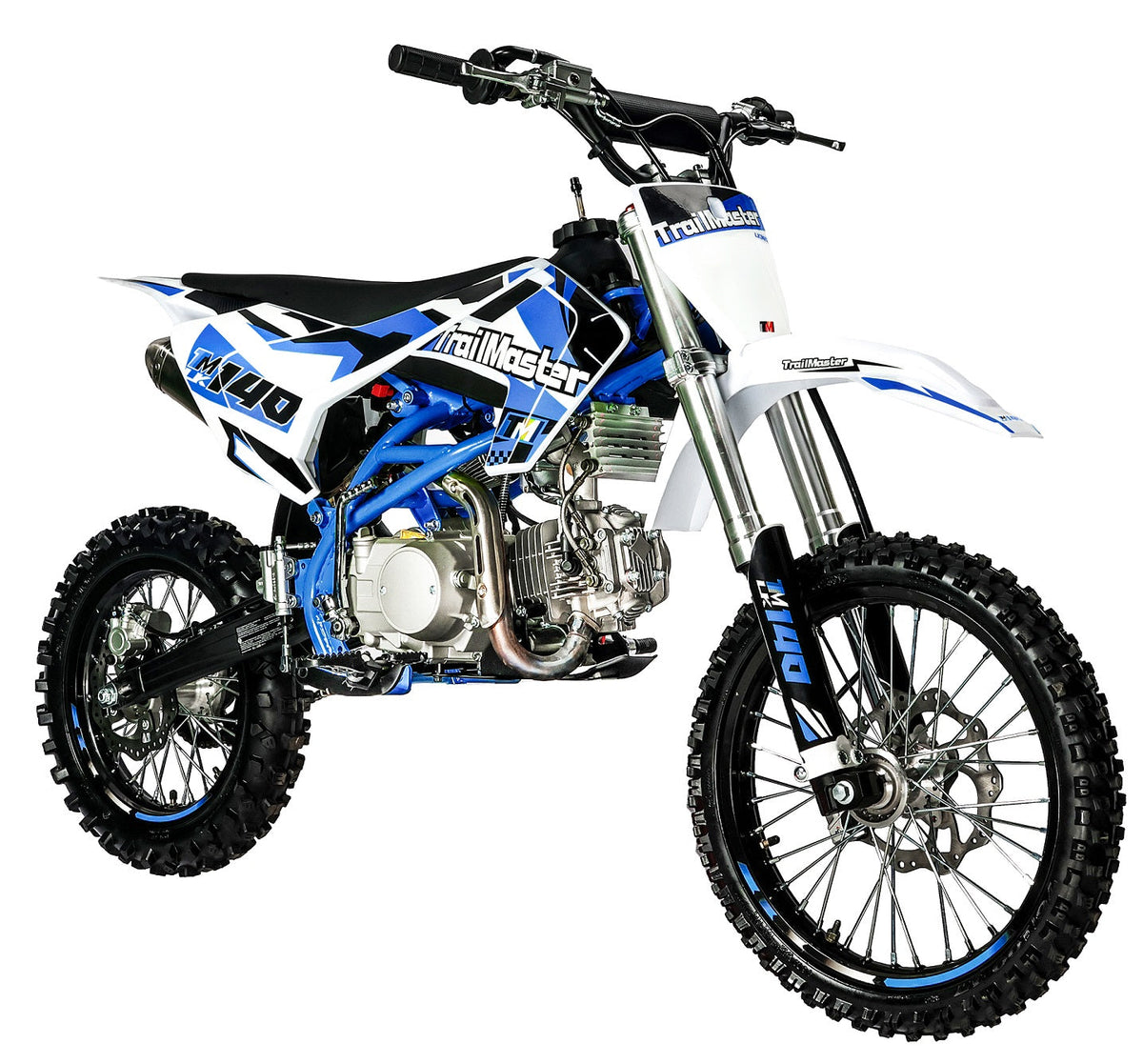

Perfect for off-road enthusiasts, the TrailMaster LK140 Pro Series Dirt Bike boasts a powerful Zhongshen 140cc 4-stroke engine that can be easily started with its innovative "ELECTRIC START" feature. With a sleek 32" seat height and a lightweight design of only 172lbs, this mid-size dirt bike is available in a variety of colors including red, blue, green, and orange. Plus, its 4-speed manual transmission and front and rear dual disc brakes provide exceptional control, while the inverted front shock ensures a smooth ride.

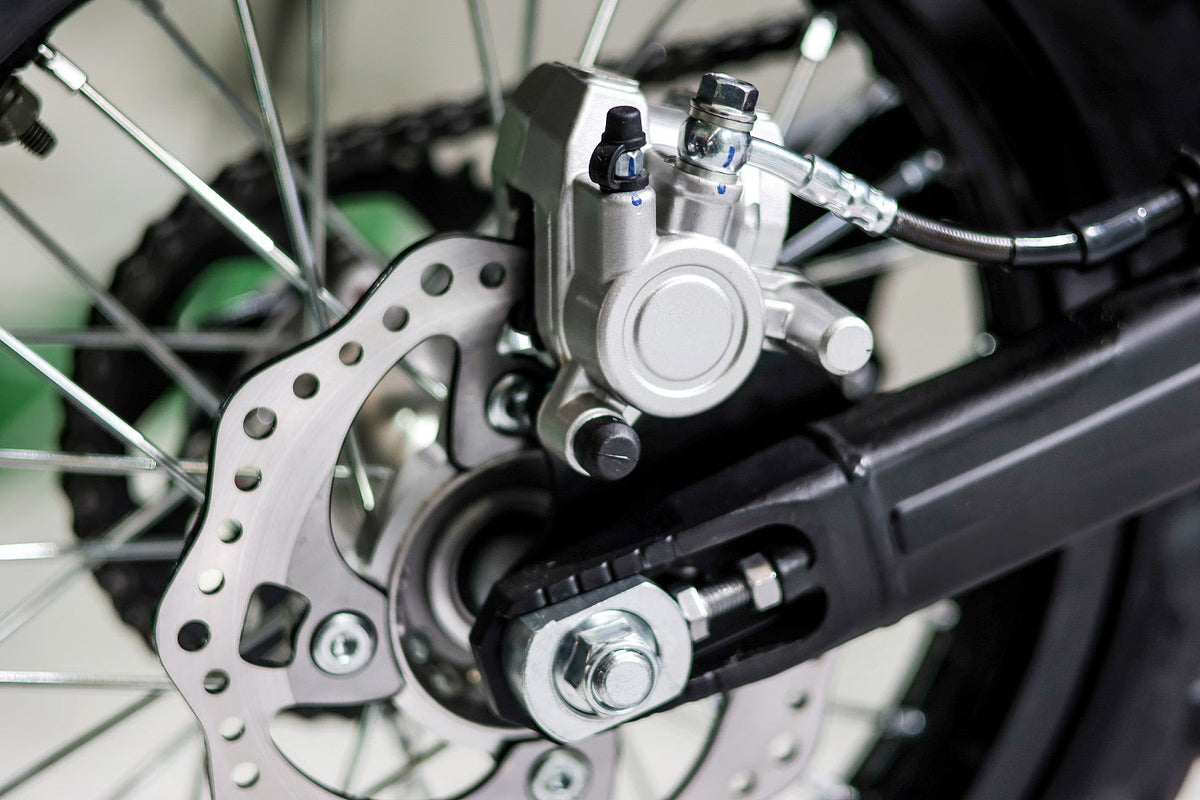

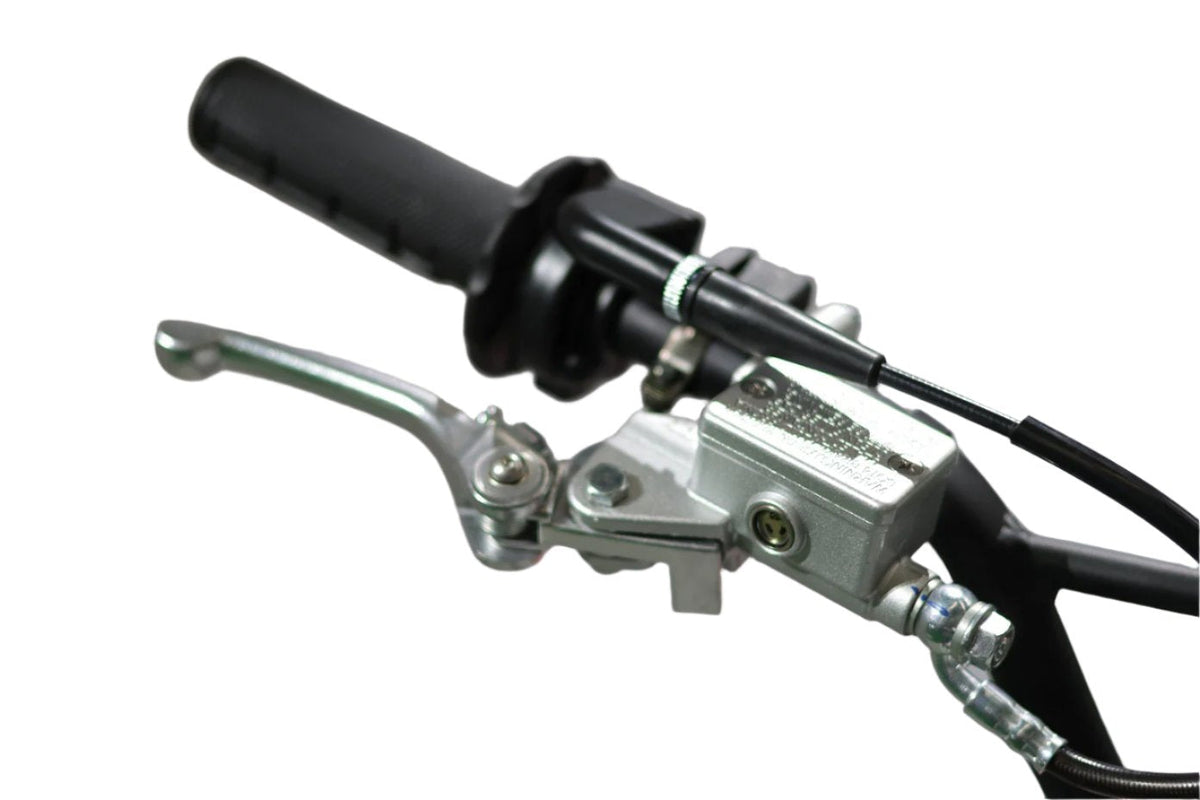

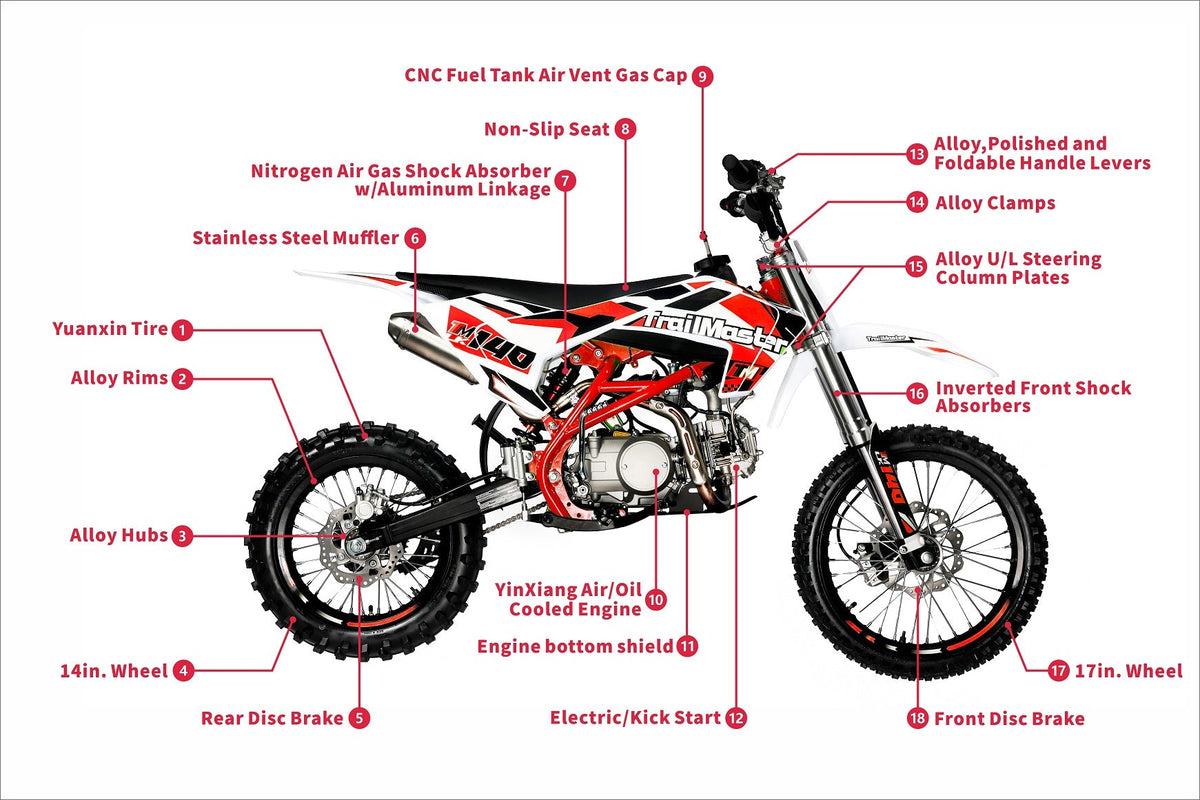

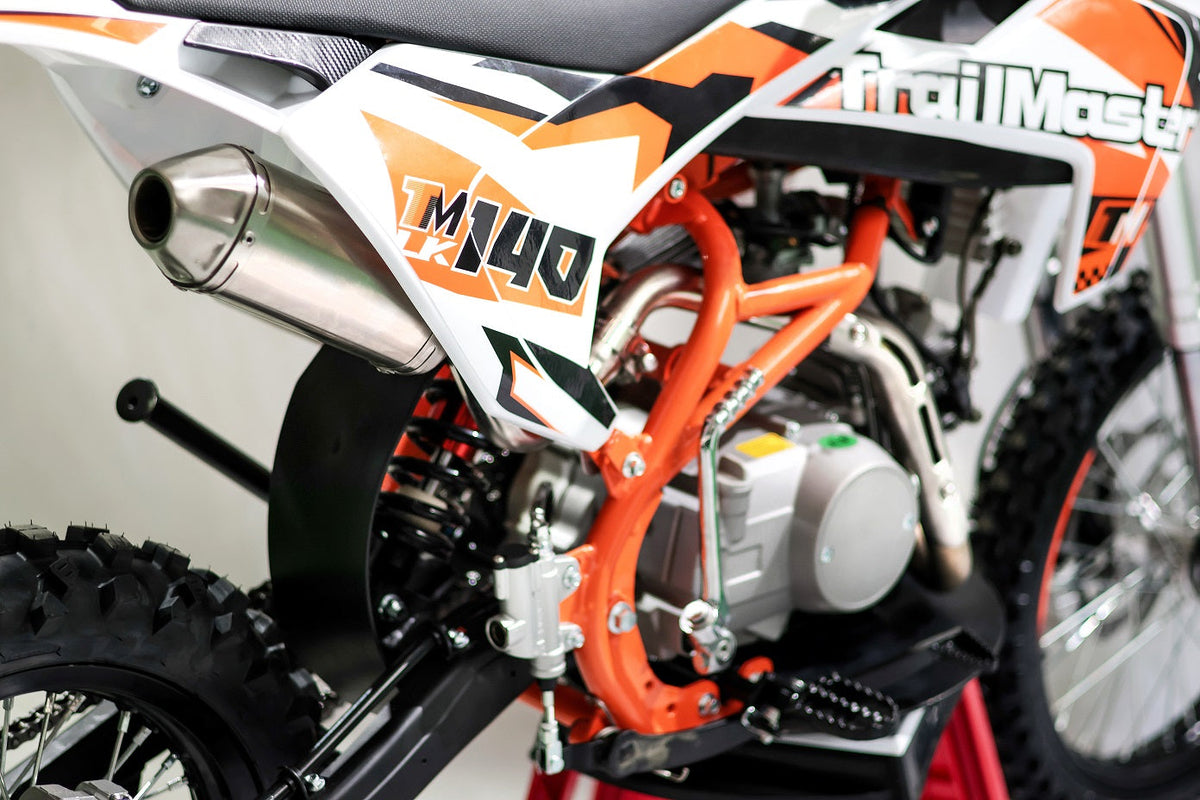

The Pro-Series line offers extra premium features such as an Inverted front shock absorber, a Nitrogen air gas rear shock absorber with an aluminum linkage, a performance stainless steel muffler, alloy foldable handle levers, alloy rims and hubs, and high-quality front and rear disc brakes. This bike's full motocross ergonomics, race suspension system, and electronic CDI ignition allow for natural handling and effortless key and kick starting. Additionally, the CDI ignition ensures a smooth ride in all gears and a broad, even power band.
Specifications
Engine System |
|
| Engine Type | Yinxiang 140cc, Single cylinder, four stroke, air-cooling /Oil-cooling |
| Displacement | 140 ml |
| Max Power | 6.8/7500 (1±1.5%) |
| Max Torque | 9.7/5500（1±1.5%） |
| Compression Ratio | 8.8:1 |
| Shift Type | Four gear, non-circulate gear |
| Start Type | Electric / Kick Start |
| Ignition | CDI |
| Min. Fuel Consumption: | ≤367g/kw.h |
| Minimum turning radius: | 1900 mm |
| Lubricant Type #： | SF15W/40 |
| Transmission: | Chain Drive |
Size Data |
|
| Overall Size (L x W x H) | 1780×740×1100 mm /69.42 x 28.86 x 42.9 Inch |
| Wheelbase | 1210mm / 47.67 Inch |
| Seat Height | 835mm / 32.89 Inch |
| Ground Clearance | 340mm / 13.26 Inch |
| Fuel Capacity | 6 L / 1.56 Gal. |
| Wheels | Alloy 17/ 14 Rims, Alloy Hubs |
| Tires | YUANXING FT: 70/100-17 - RR: 90/100-14 |
Frame/Suspension/Brakes |
|
| Frame | High quality Steel Frame |
| Front Fork | Inverted, non-Adjustable |
| Rear Shock | Alloy U&D connector, Non-Adjustable |

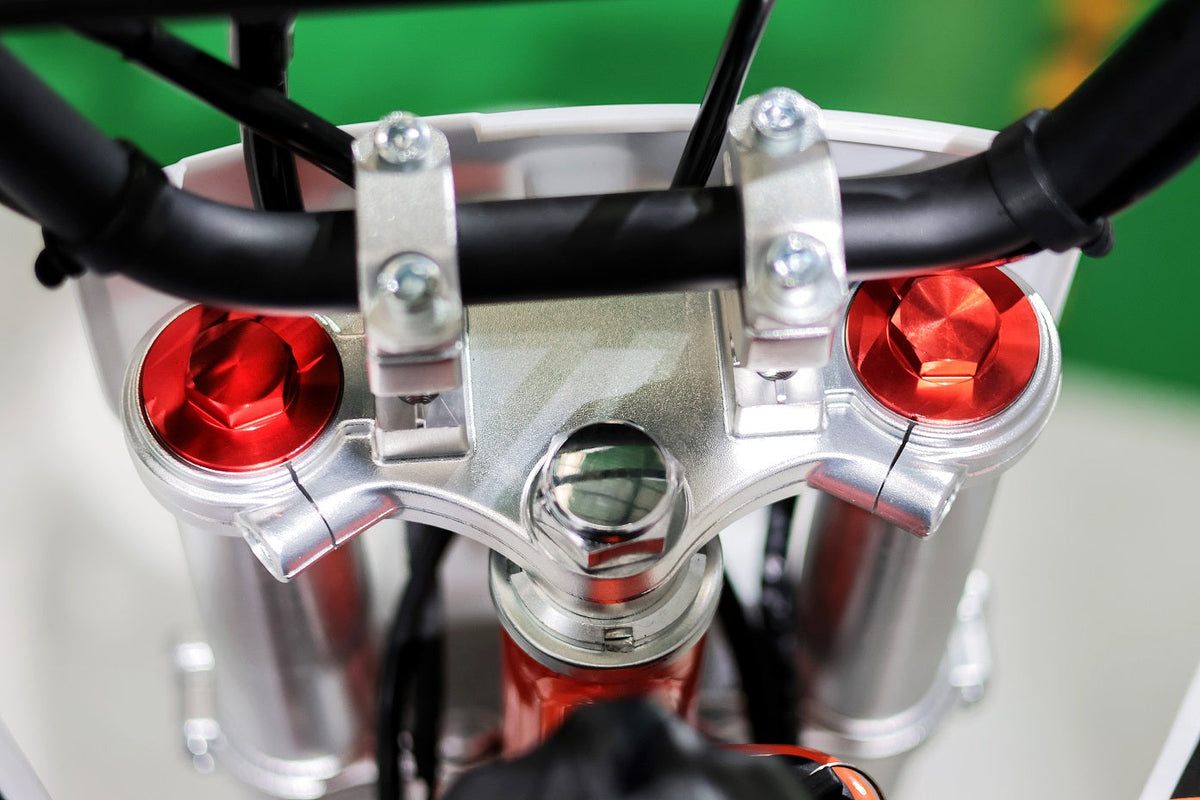

| Upper and Lower Connecting Board | Alloy |
| Handlebars | Alloy and Foldable |
| Front Brake | Disc |
| Rear Brake | Disc |
| Exhaust | Stainless |
Packing and Loading |
|
| Packing Size | 1370*440*660 mm / 53.43*17.16*25.74 Inch |
| N.W/LBS | 78 KGS / 171.6 LBS |
| G.W/LBS | 103 KGS / 226.6 LBS |
