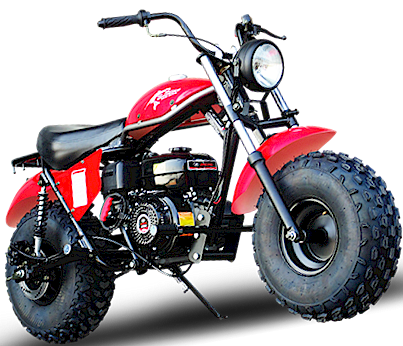

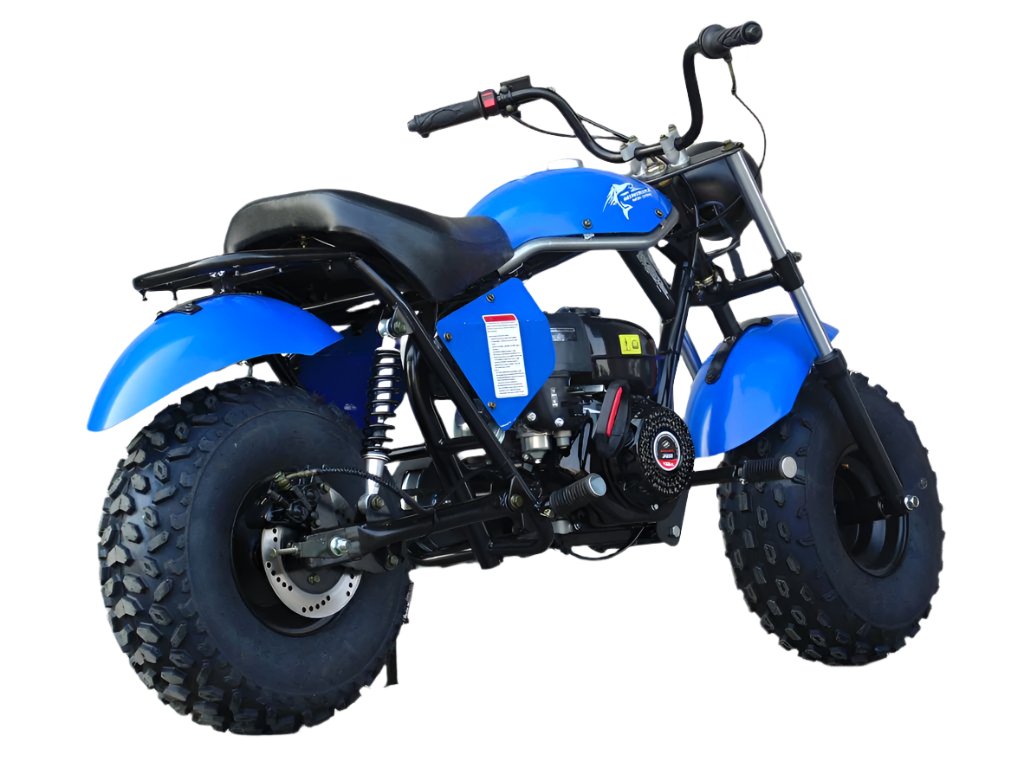

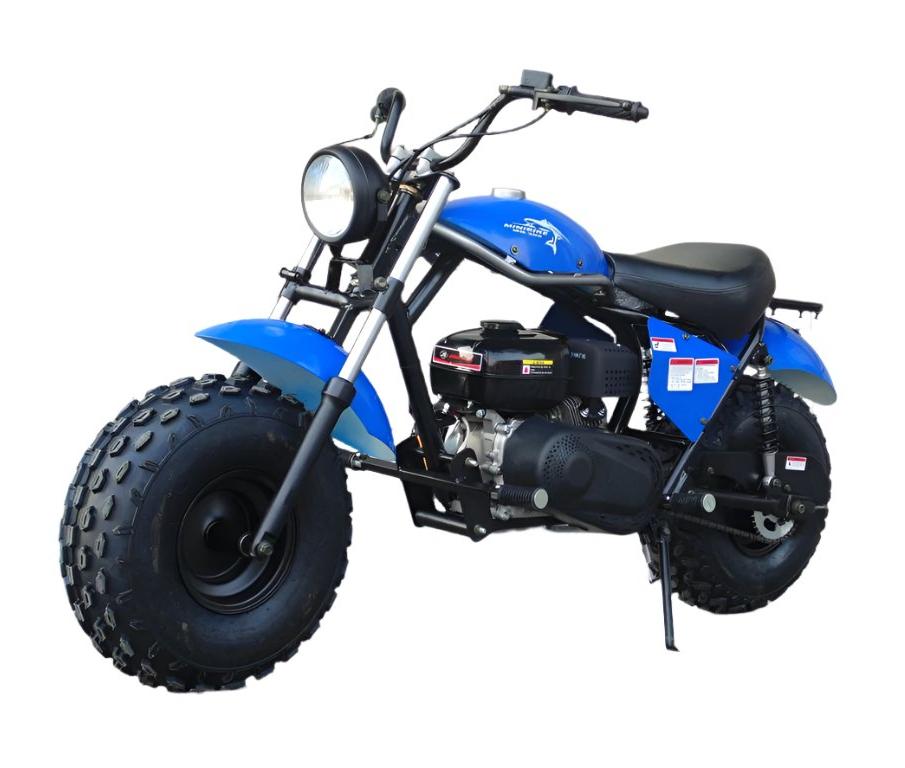

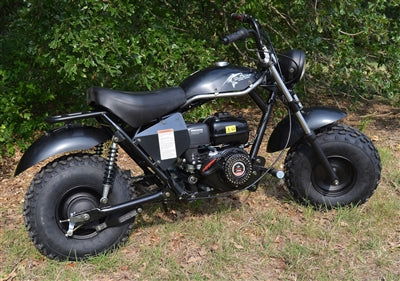

TrailMaster Monster Dog II Mini Bike, 196cc 6.5hp with Torque Converter, Rear Hydraulic Disc Brake

Best Seller

The Monster Dog II Mini Bike is an ideal choice for off-road adventures. Powered by a 196cc / 6.5hp engine, it can reach speeds of up to 40mph, with the torque converter and disc brake providing additional control and safety. Its high strength steel frame, front and rear suspension and wide, comfortable seat can accommodate up to 250 lbs. Set yourself apart with the stylish and reliable Monster Dog II Mini Bike.

Specifications

Engine System

• Engine: 196cc 6.5hp Single Cylinder, 4-Stroke, OHV
• Starting: Recoil Cord
• Spark Plug Type: Torch - F7RTC
• Cooling: Air cooled
• Bore and Stroke: 68 x 54mm
• Compression Ratio: 8.5:1
• Rated Power: 196cc 6.5hp
• Rated Torque: 7. 3lbsf.ft@ 2500rpm
• Idle Speed: 1440 +/- 150 rpm
• Top Speed: 35-40mph (39km/h)
• Fuel type: Unleaded 87 octane
• Oil Capacity: .53qt. (.5L)
• Oil Type: SAE 10W-40
• Lights: Front Headlight Continuously on
• Drive Type: Chain Drive
• Gear Ratio: Centrifugal clutch
• Shock Type Front: Fork shocks
• Shock Type Rear: Hydraulic
• Tire Type: Low pressure tires
• Rear Brakes: Hydraulic Disc
• Front Tire Size: AT19x7-8
• Rear Tire Size: AT19x7-8

Dimensions

• Length: 66.14in
• Height: 38.58in.
• Width: 31.5in.
• Wheelbase: 45.28in.
• Vehicle Wt.: 167.5lbs
• Weight Cap.: 250lbs
• Ground Clearance: 6.7in
• Gas Tank Capacity: 0.95gal.
