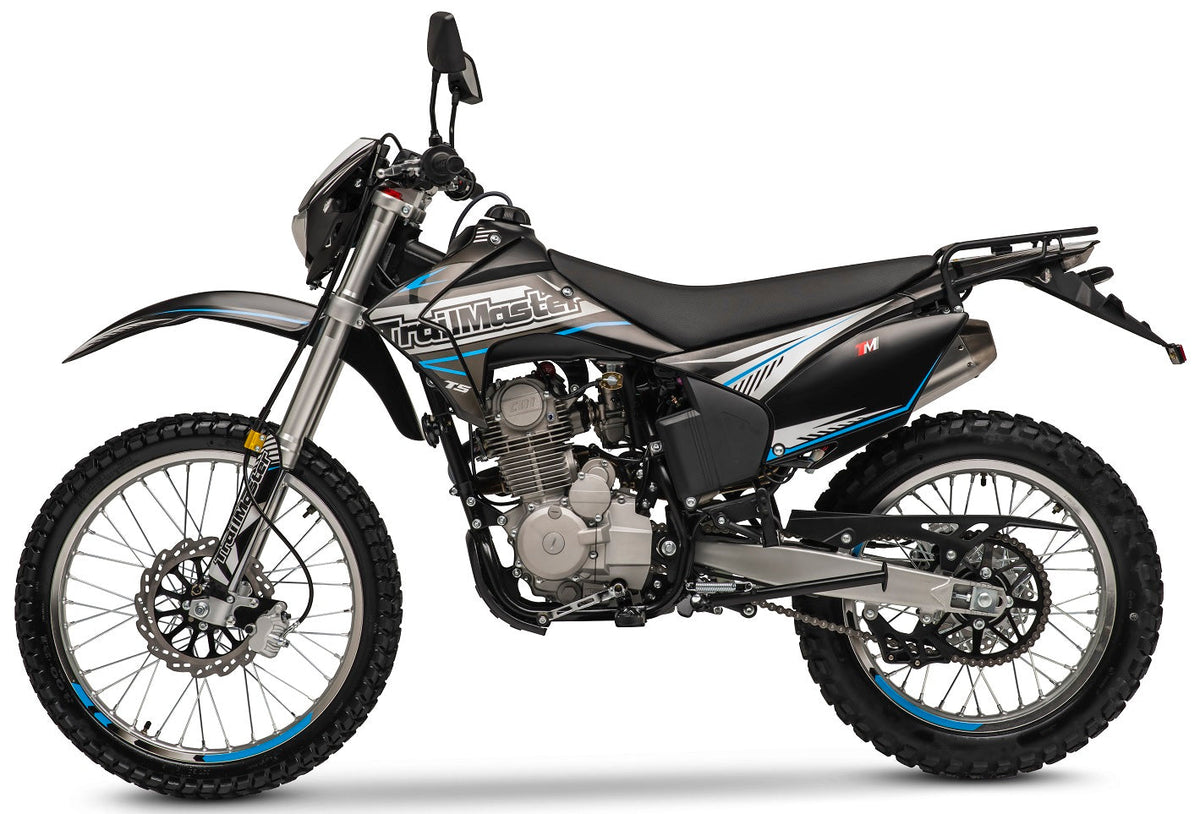

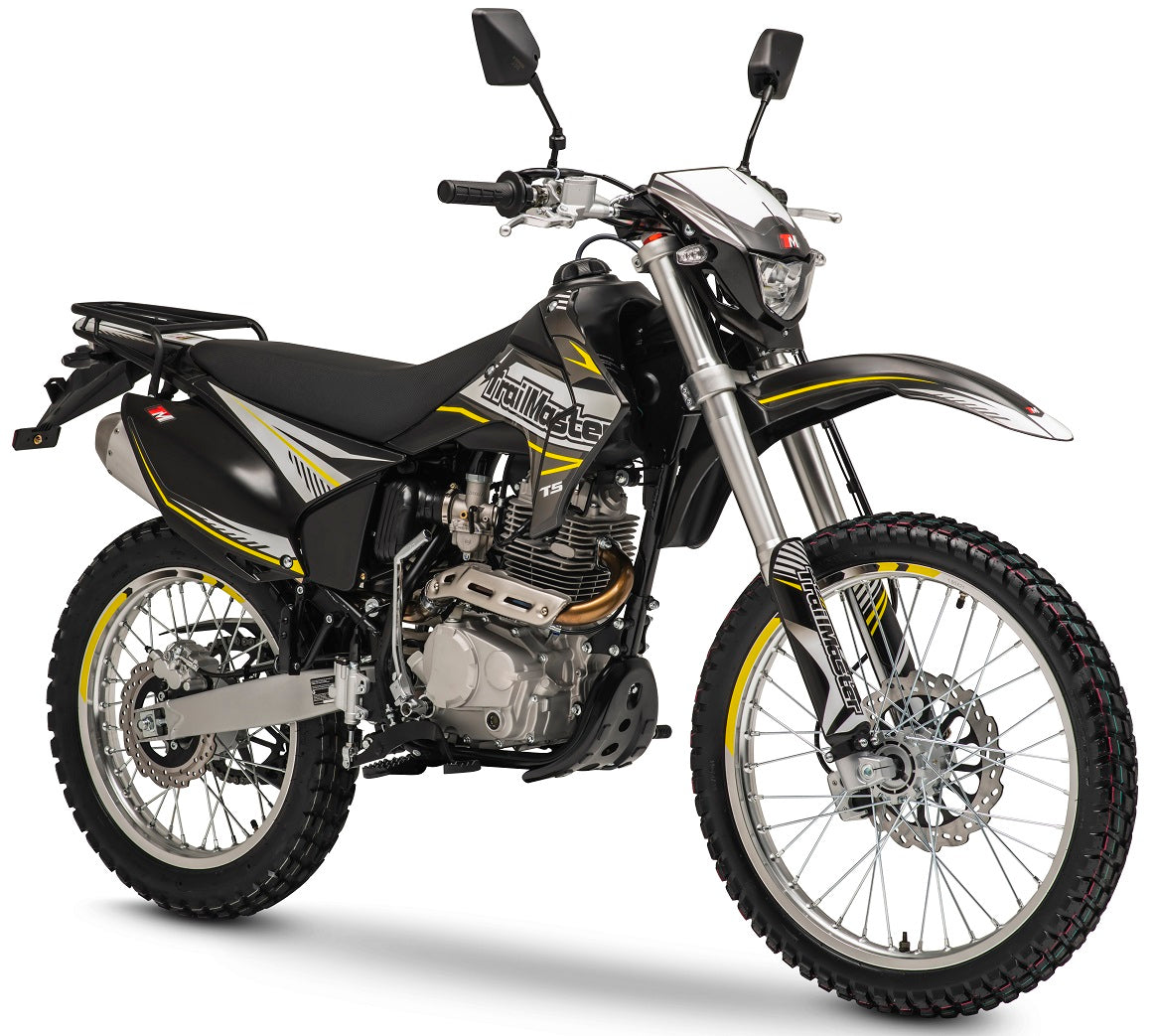

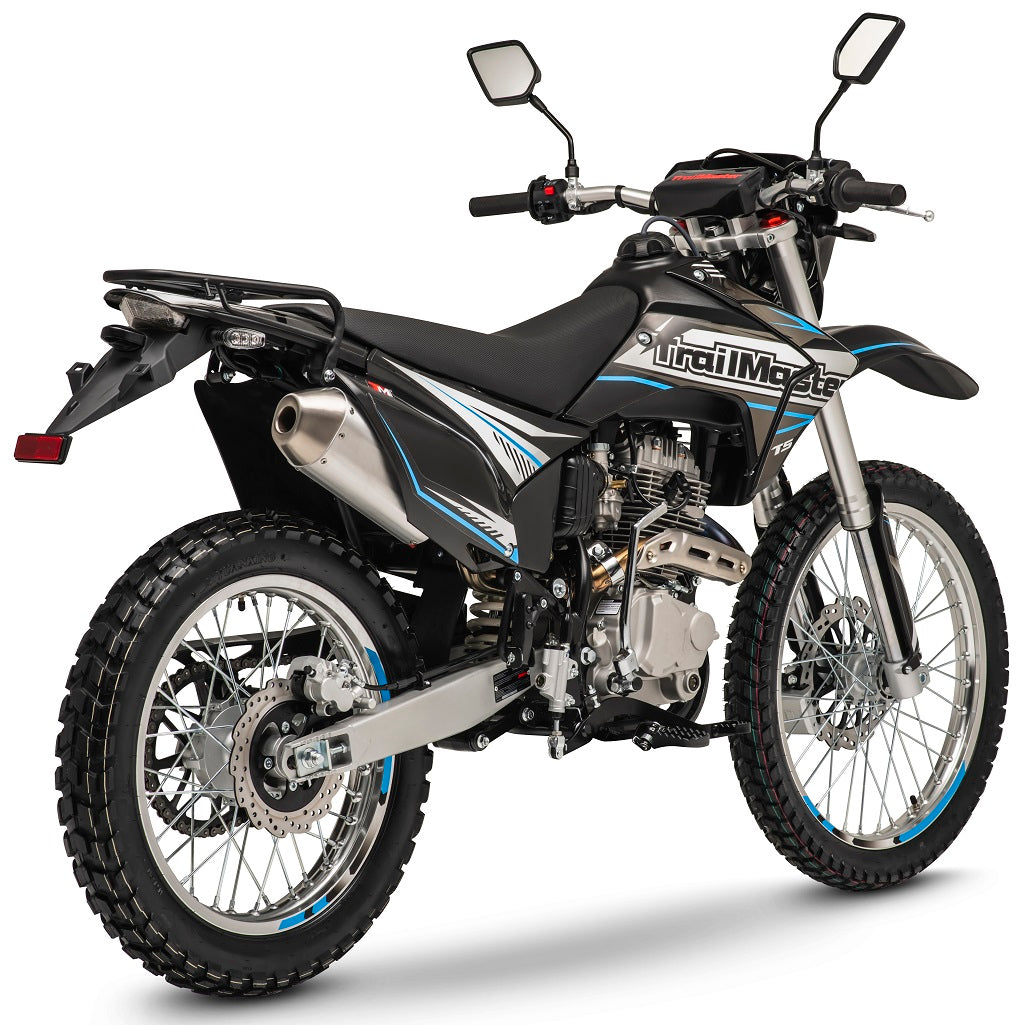

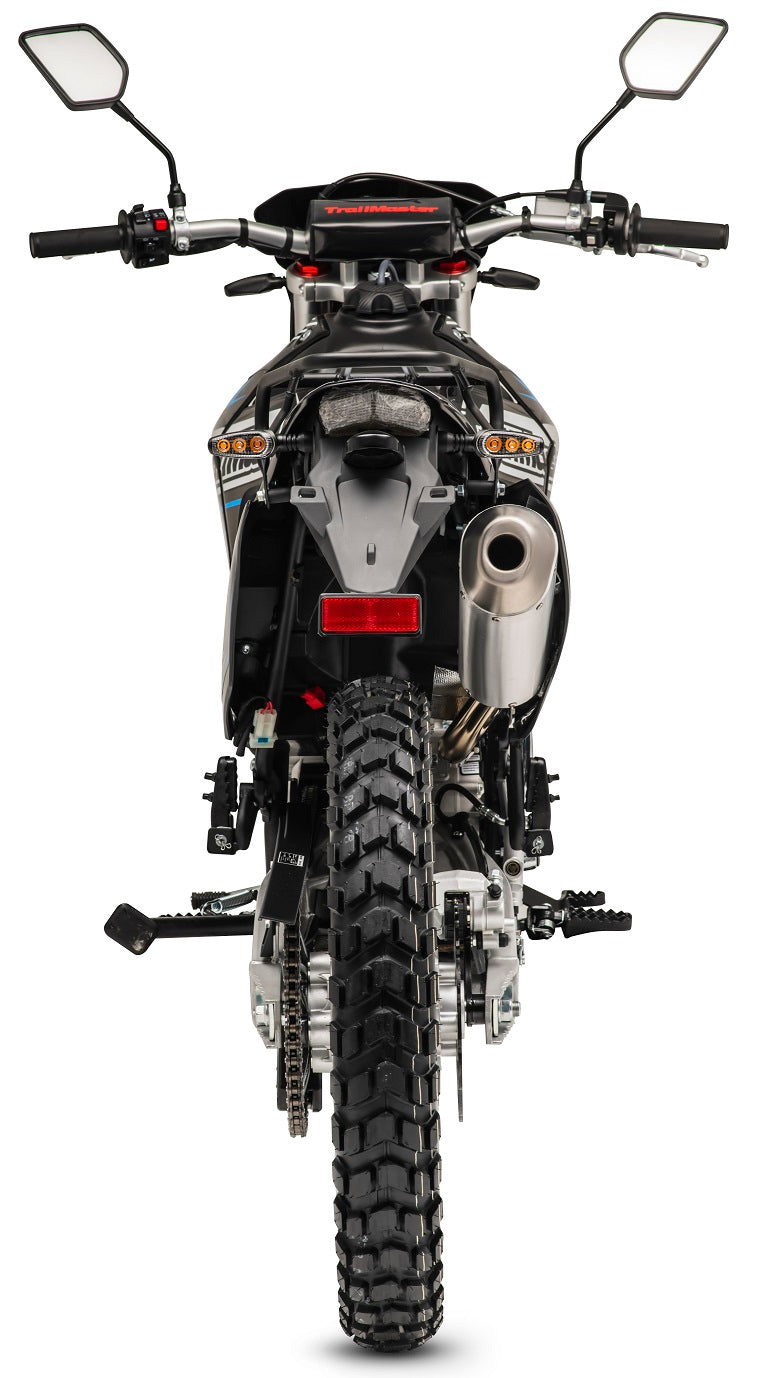

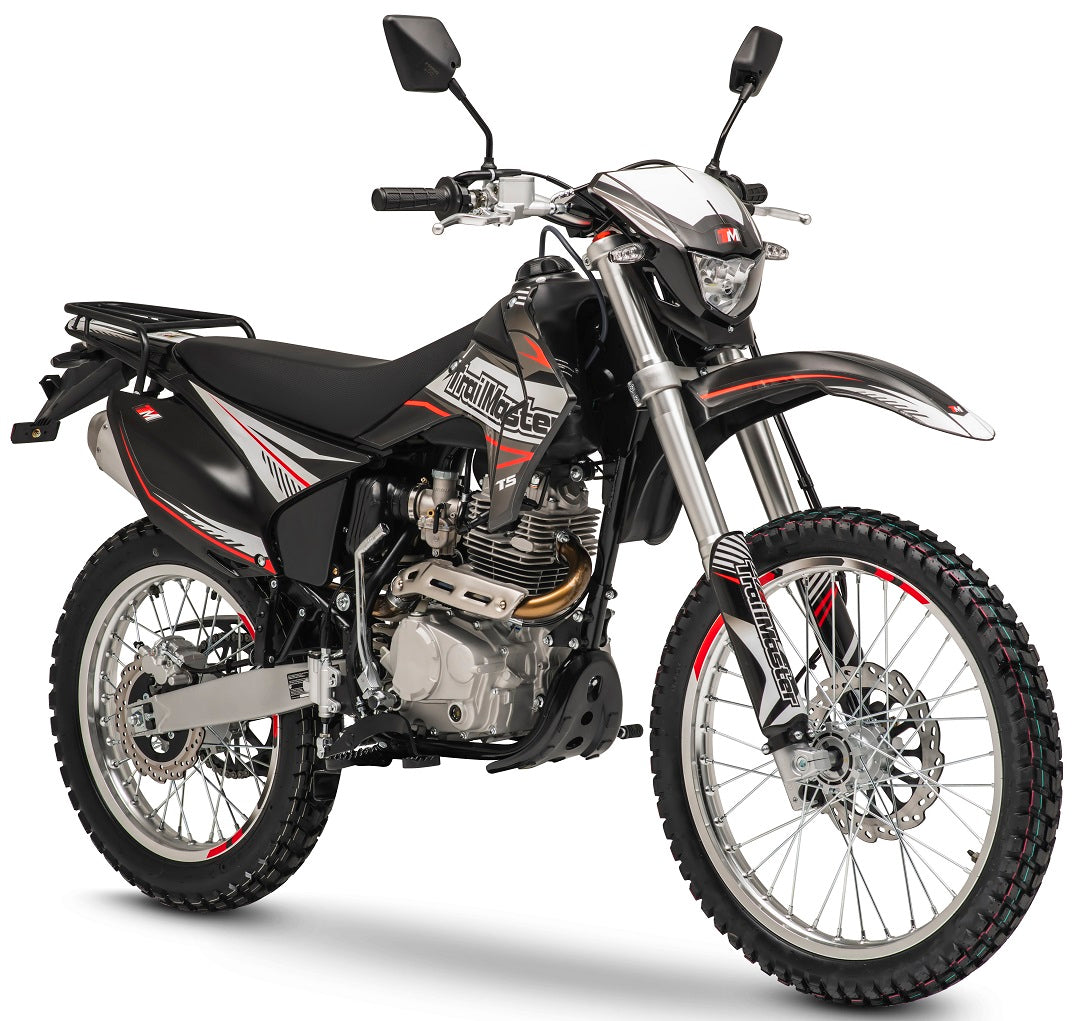

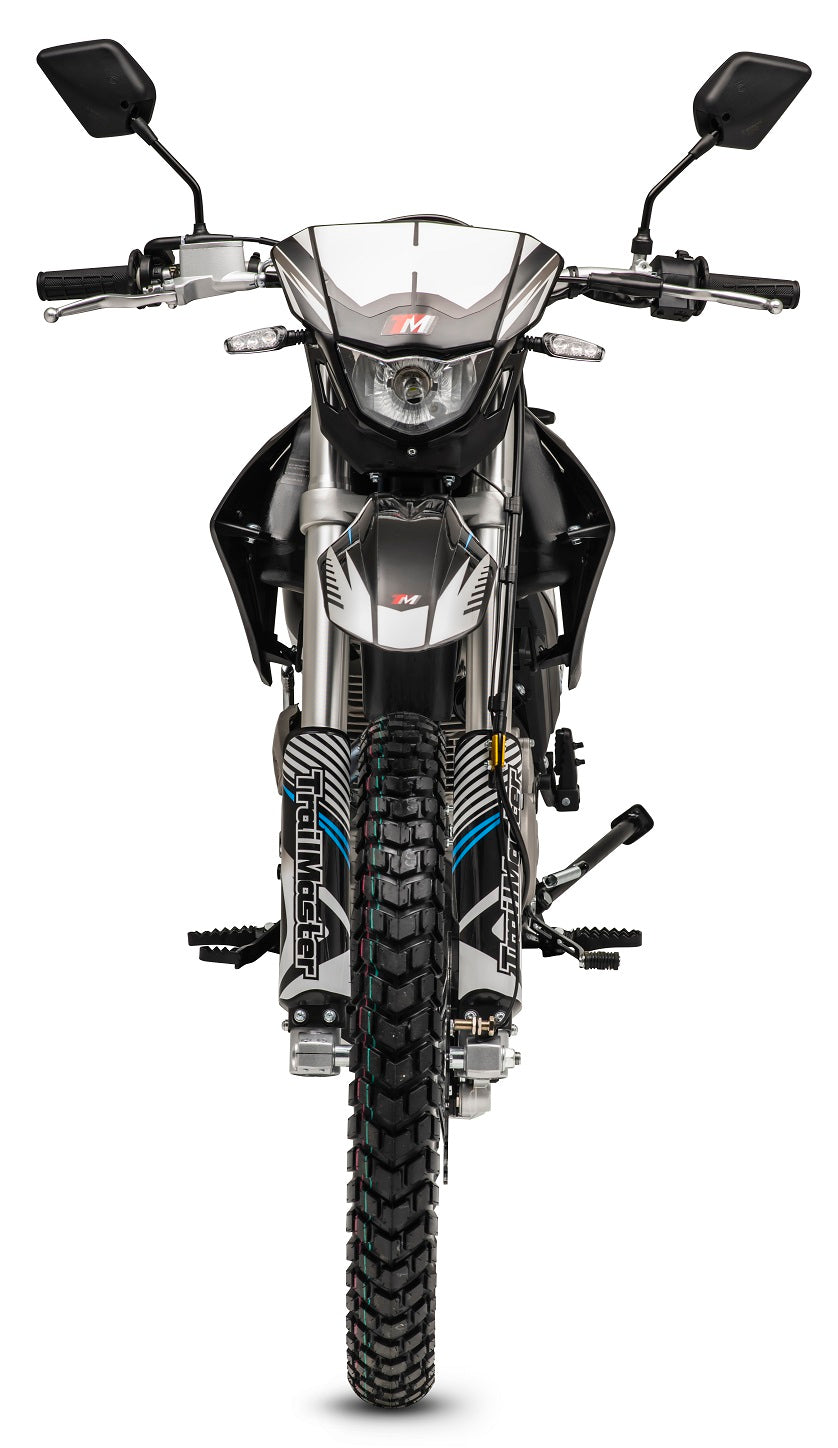

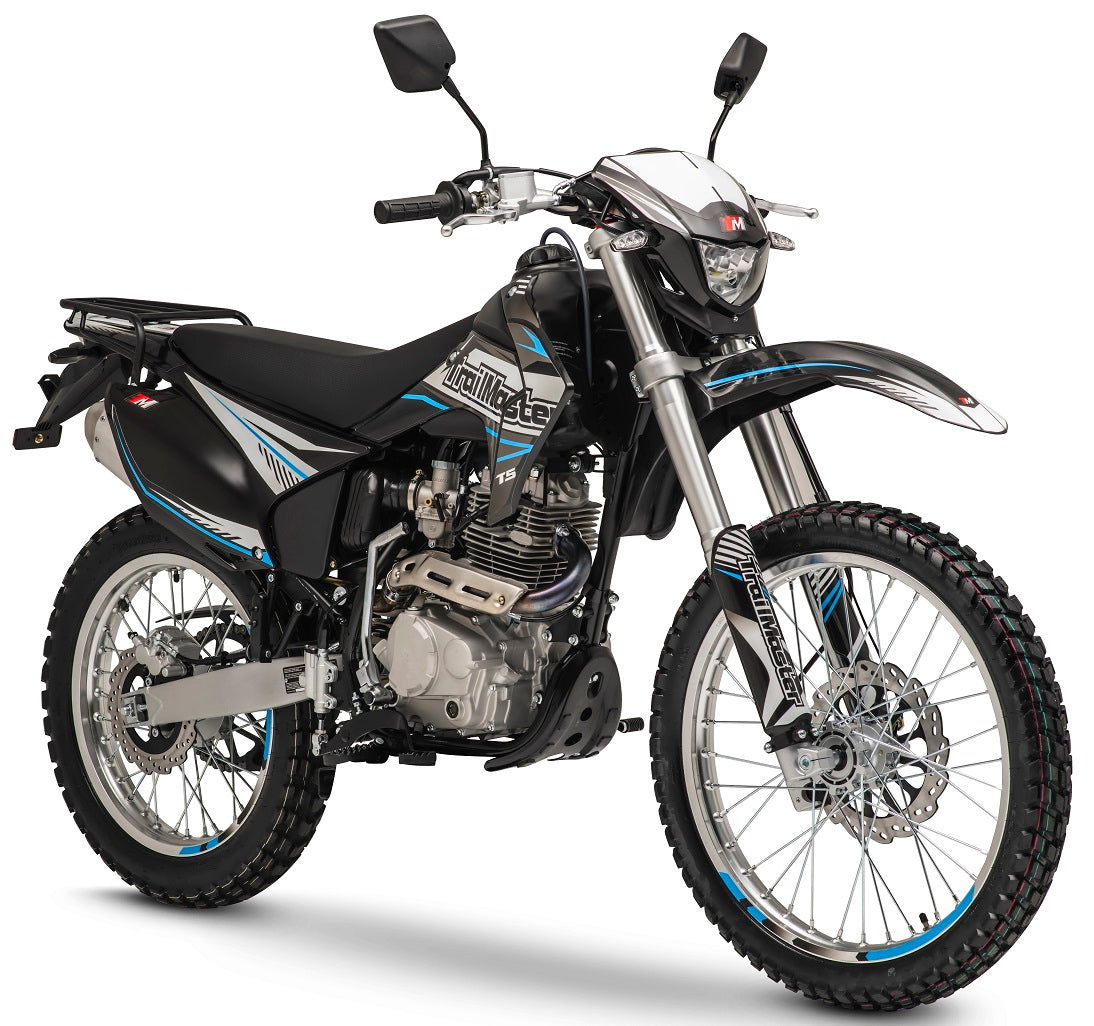

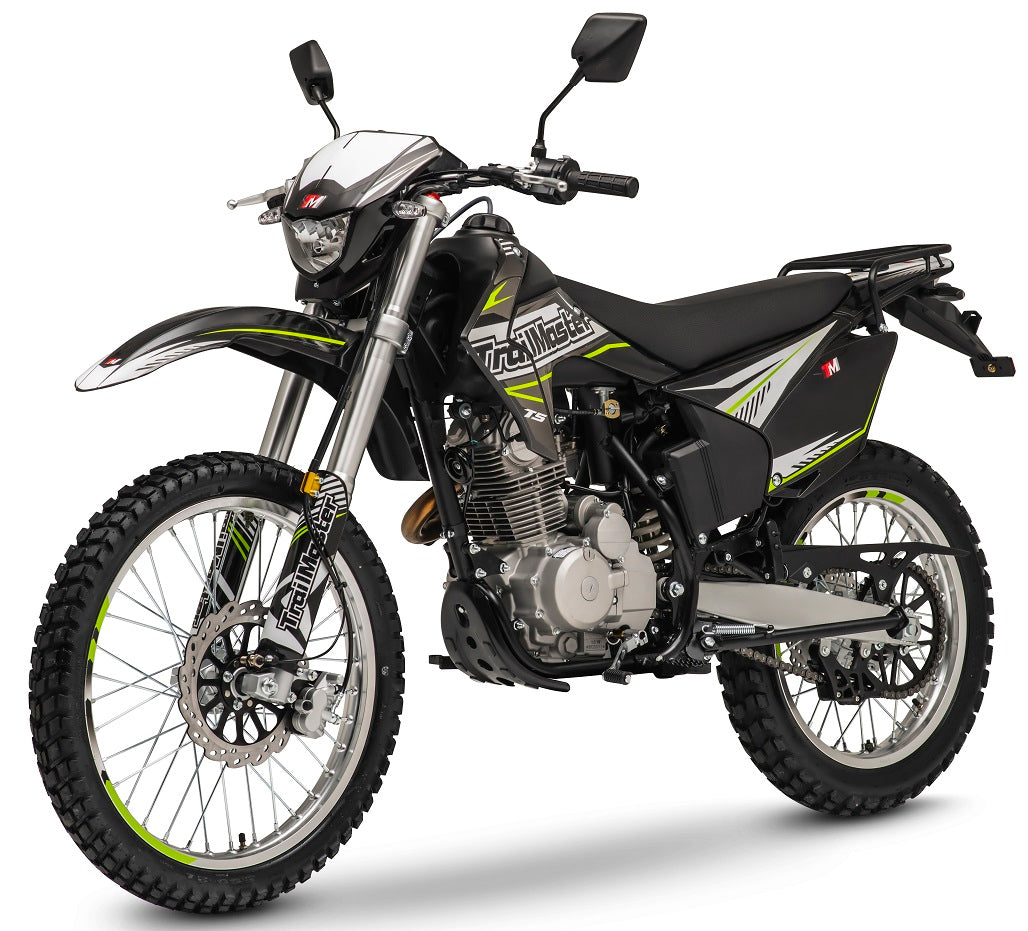

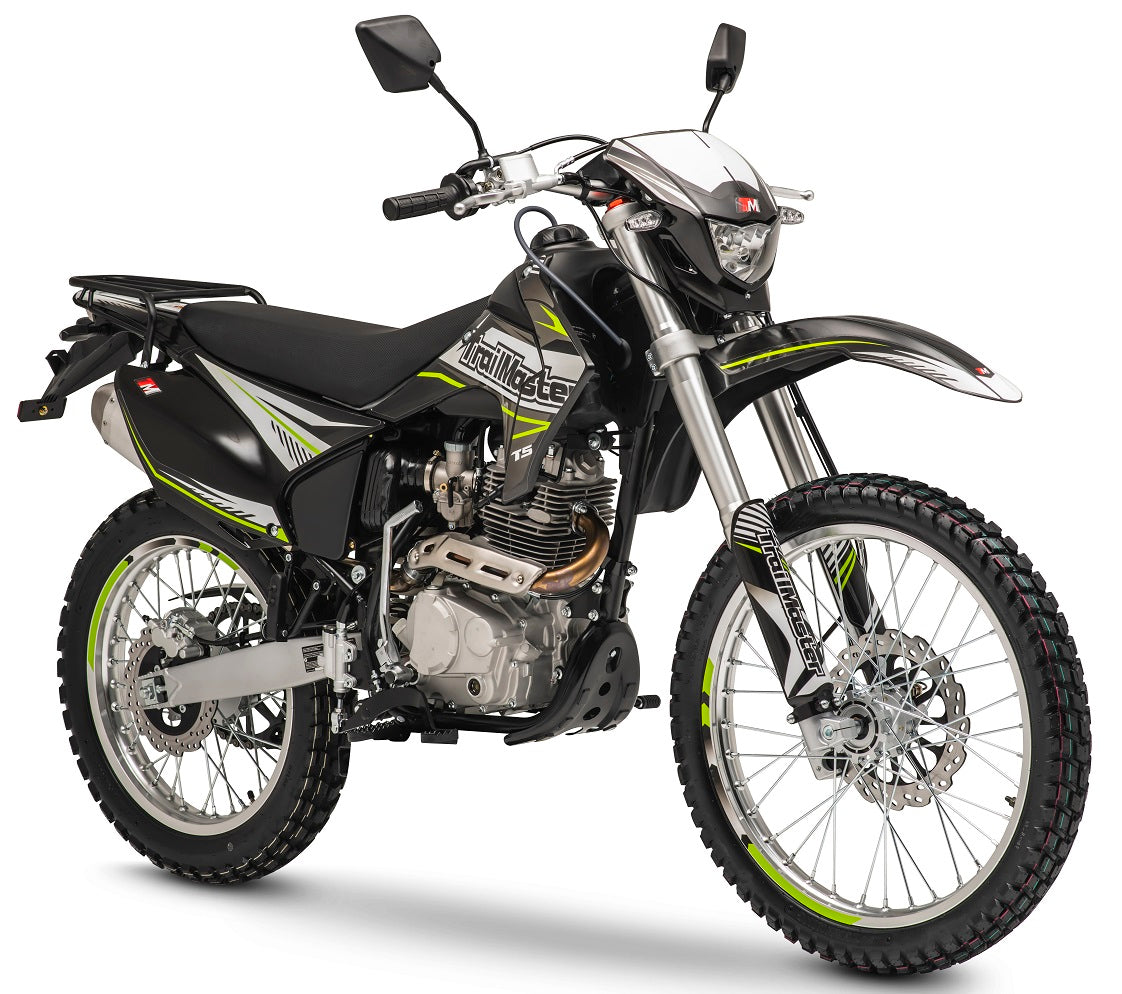

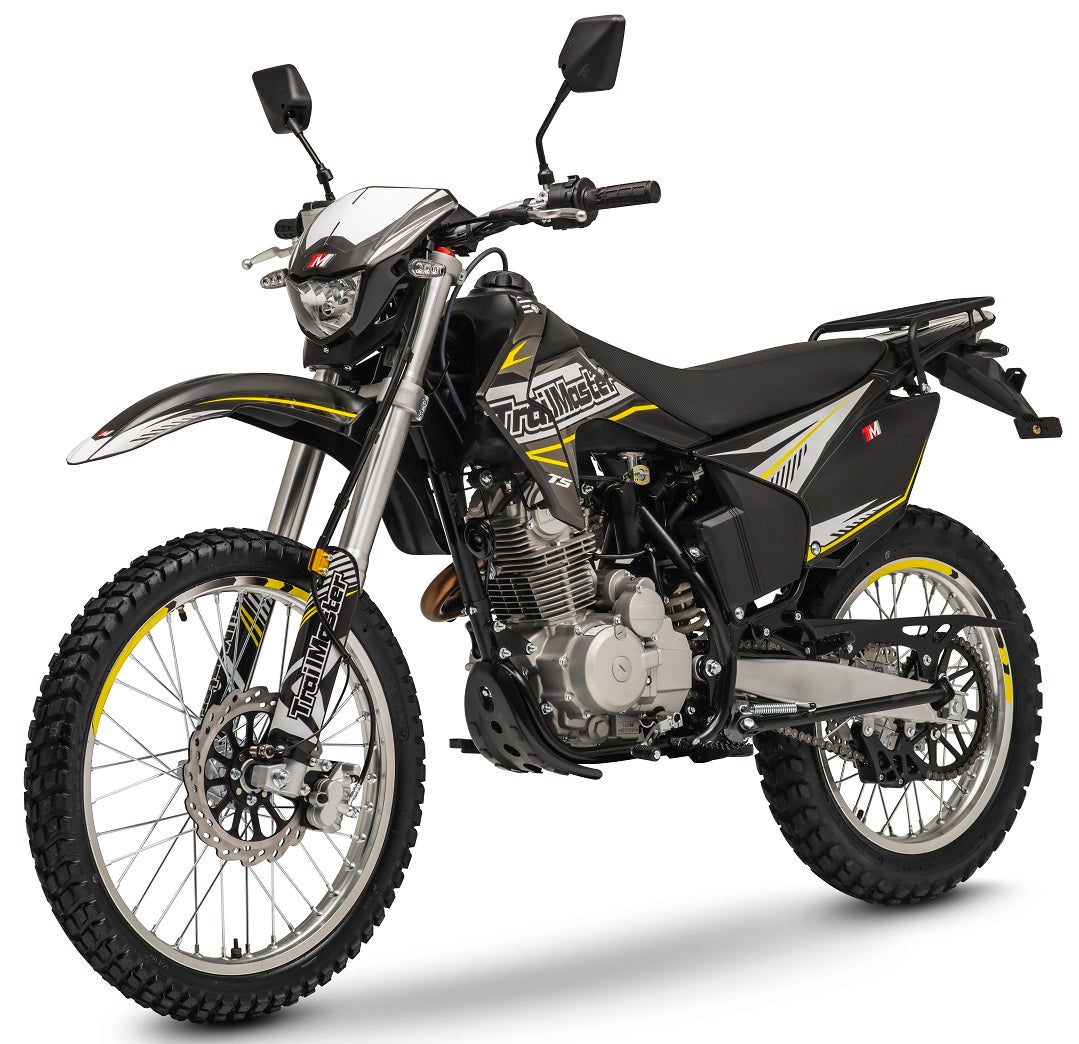

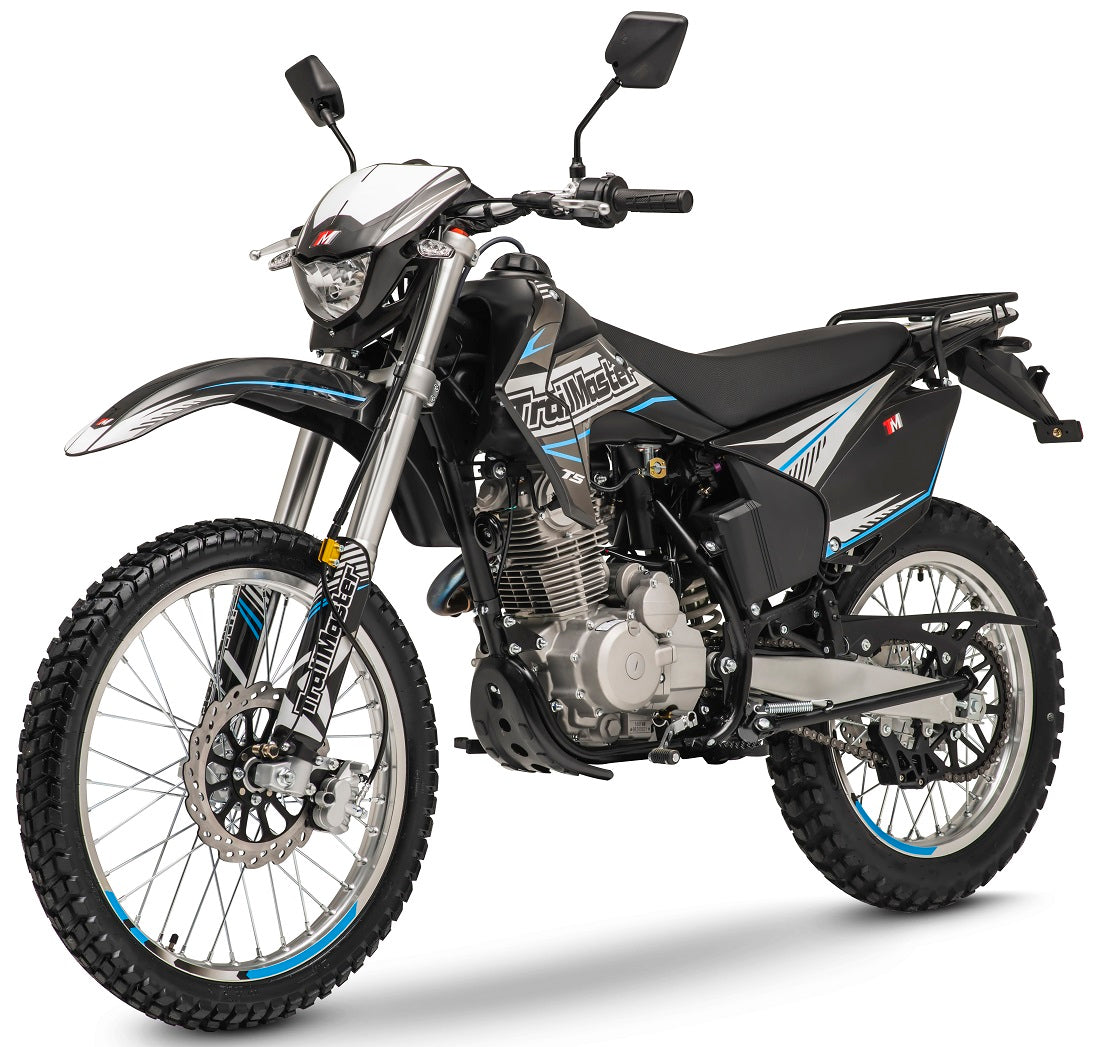

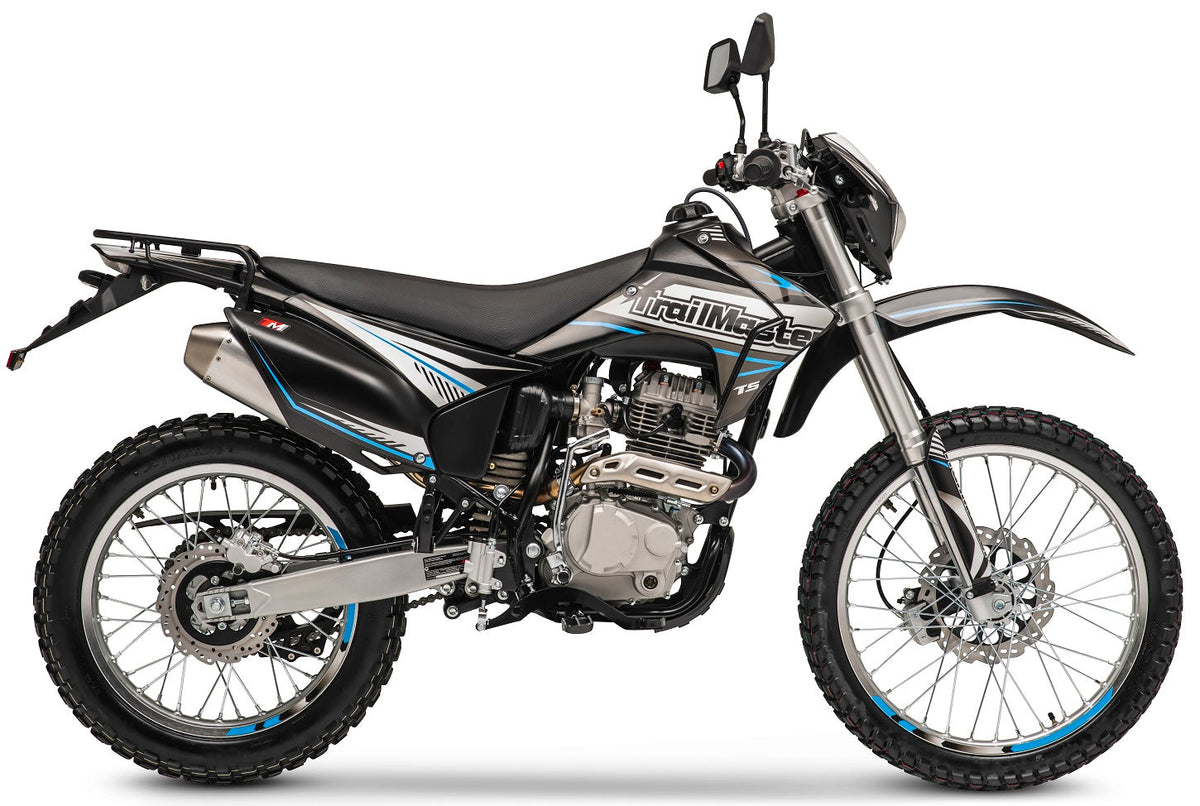

TrailMaster T5 Dual Sport Dirt Bike, 5-Speed Manual, 223cc Engine, Dual Disc Brakes, Electric Start with Kick backup, (21/18) Wheels
Couldn't load pickup availability
- Fully secure checkout
- Proven quality
- Rated and reviewed

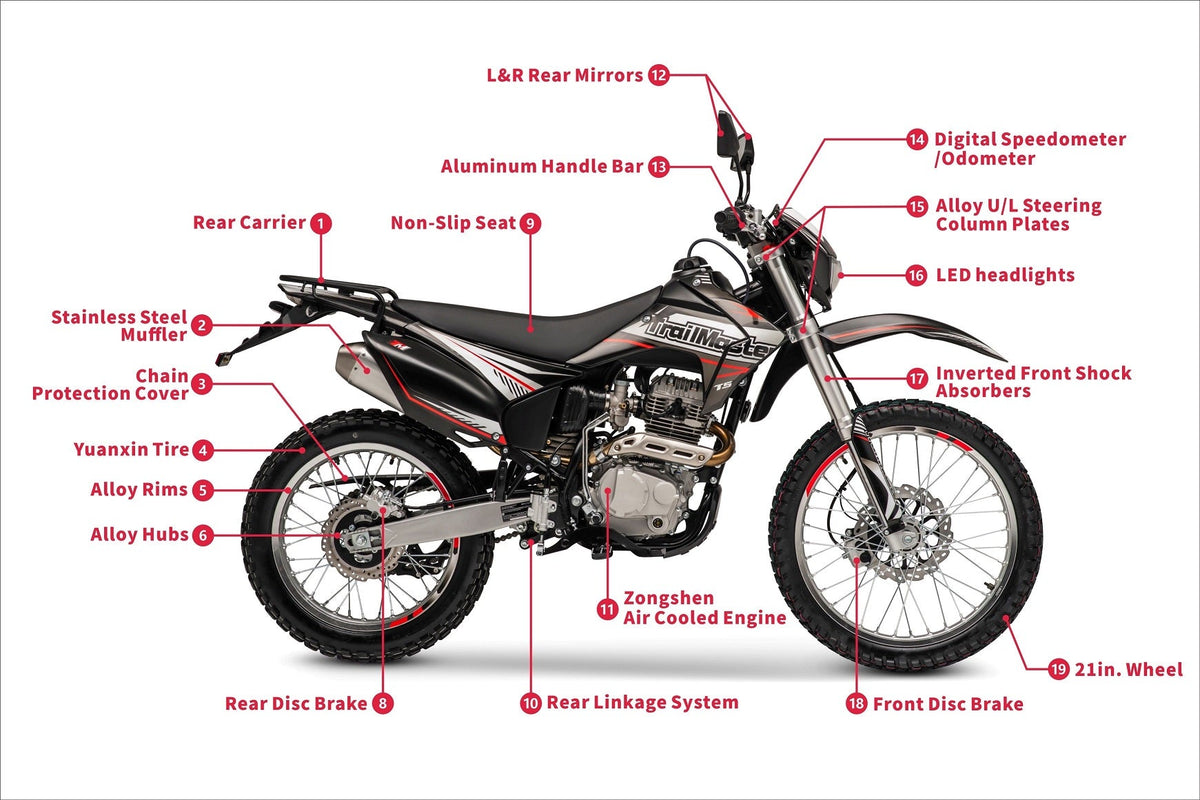

From the perspective of a product expert, Trailmaster proudly presents the all-new T5. This remarkable addition to Trailmaster's dirt bike lineup boasts upgraded performance and a sleek new frame design. Featuring adjustable inverted front forks, electric and kick start options, and a lightweight all steel twin-spar style frame, this bike is ready for any adventure. The outstanding top speed of up to 60 mph is thanks to the Zongshen engine and 5-speed manual transmission. The 21-inch front tire and 19-inch rear tire provide exceptional ground clearance, while the airbag-style shock in the rear suspension ensures a smooth ride. With lightweight aluminum rims for a superior power-to-weight ratio, the T5 outperforms its competitors.

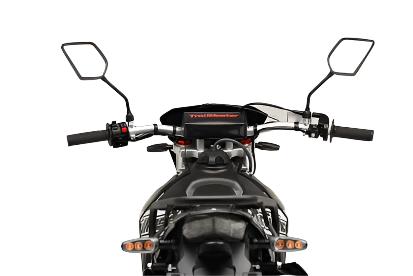

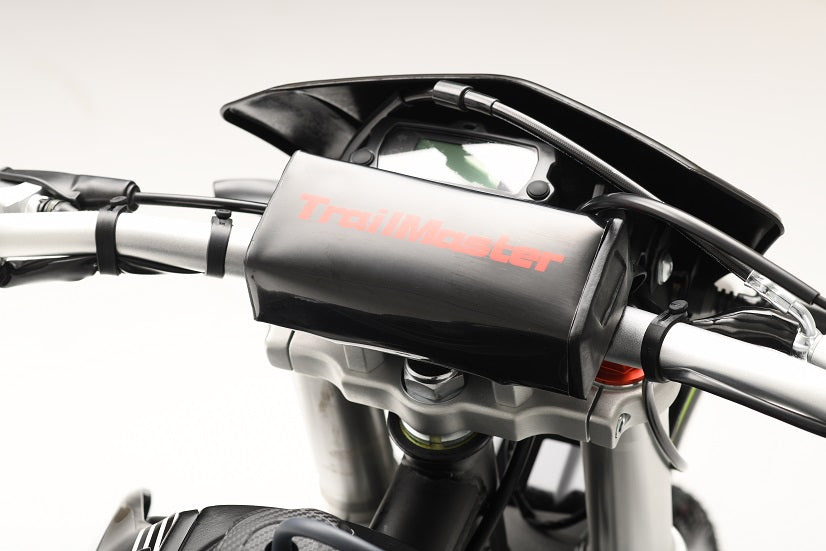

This TrailMaster T5 Dual Sport Dirt Bike features a digital display for easy access to information, as well as an LED headlight for nighttime rides. It also includes blinkers, brake lights, side view mirrors, and a license plate holder, making it compliant with street legal standards in a variety of states.
Specifications
Engine System |
|
| Engine Type | Zongshen CB250D-G,Single cylinder, four-stroke |
| Displacement (ML) | 223cc |
| Max Power(Kw/r/min） | 12.00/7000（1±1.5%） |
| Max Torque(N.m/r/min） | 17.50/5500（1±1.5%） |
| Max. Load Capacity (kg) | 150 |
| Max. Speed | 57 M/H |
| Compression Ratio | 9.6：1 |
| Shift Type | International five gears |
| Start Type | Electric / Kick Start |
| Ignition | CDI |
| Min. Fuel Consumption: | ≤354(g/（kW·h) |
| Minimum turning radius: | 2600mm |
| Lubricant Type： | SF 15W/40 |
| Chain: | 520 CHOCHO |
| Transmission: | Chain Drive |
Size Data |
|
| Overall Size (L x W x H) | 2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 Inch |
| Wheel Base | 1400 mm / 55.16 Inch |
| Seat Height | 890 mm / 35.07 Inch |
| Ground Clearance | 290 mm / 11.43 Inch |
| Fuel Capacity | 2 Gal/9L |
| Rims | Aluminium |
| Hubs | Aluminium |
| Tires | YUANXING FT: 80/100-21 - RR: 110/100-18 |
Frame/Suspension/Brakes |
|
| Frame | High quality Steel Frame |
| Front Fork | Inverted front shock absorber, 48/51-800mm |
| Rear Shock | Built-in airbag rear shock absorber |
| Upper and Lower Connecting Board | Aluminium alloy |
| Handle bar | Aluminium alloy Reducing Handle Bar |
| Front Brake | Disc 252mm |
| Rear Brake | Disc 220mm |
| Exhaust | Stainless Steel |
Packing and Loading |
|
| Packing Size | 70.92*18.12*34.78 Inch/ 1800*460*870 mm |
| N.W/LBS | 118.00 KGS / 259.6 LBS |
| G.W/LBS | 140.00 KGS / 308.00 LBS |
