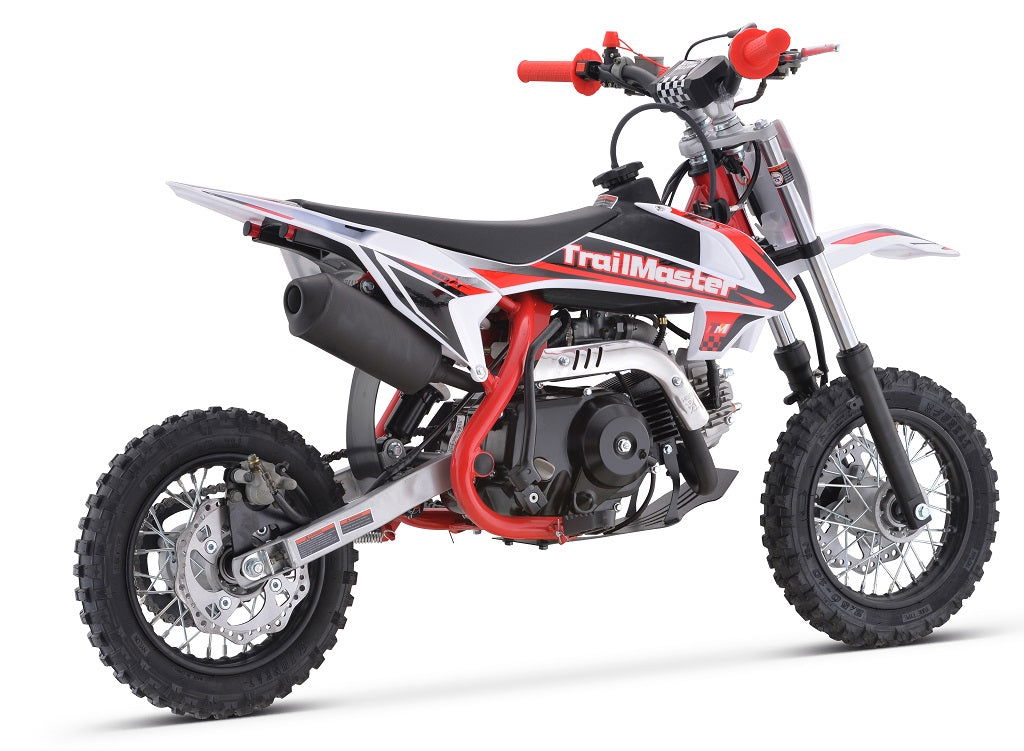

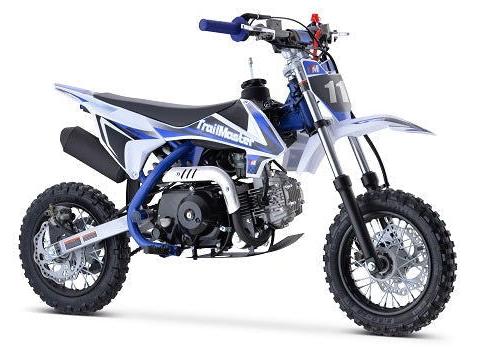

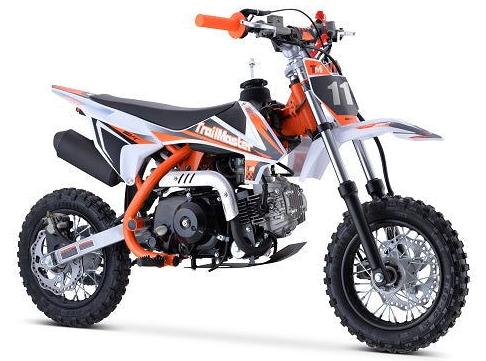

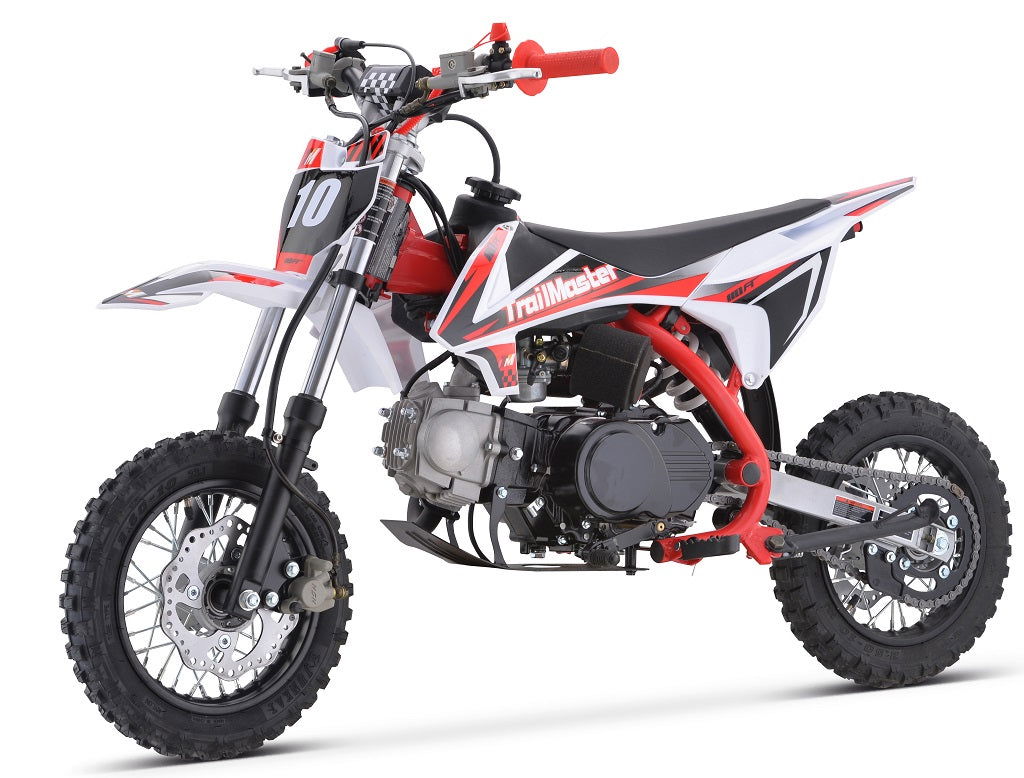

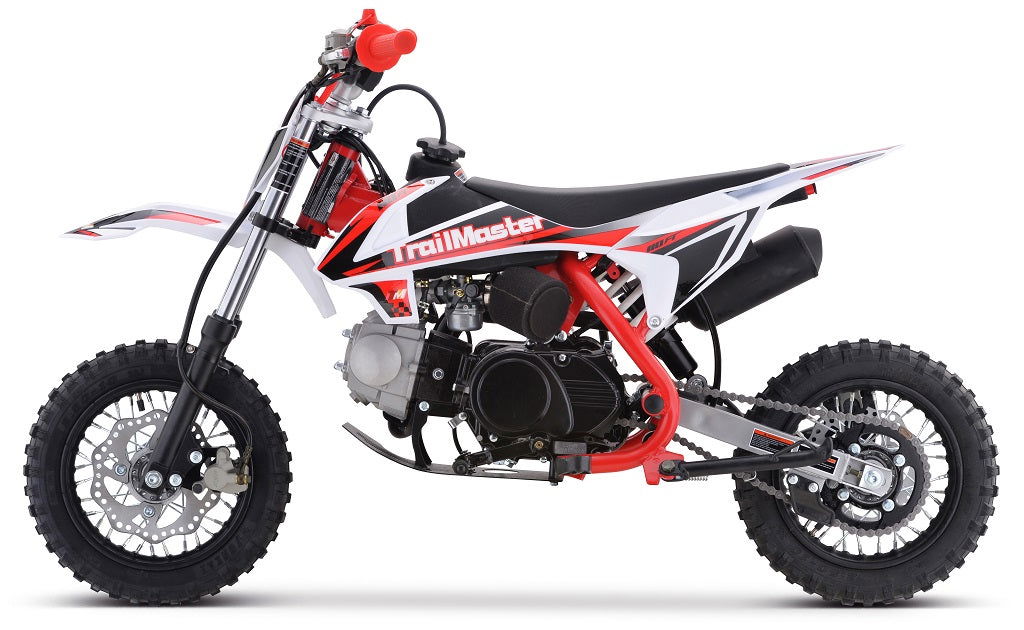

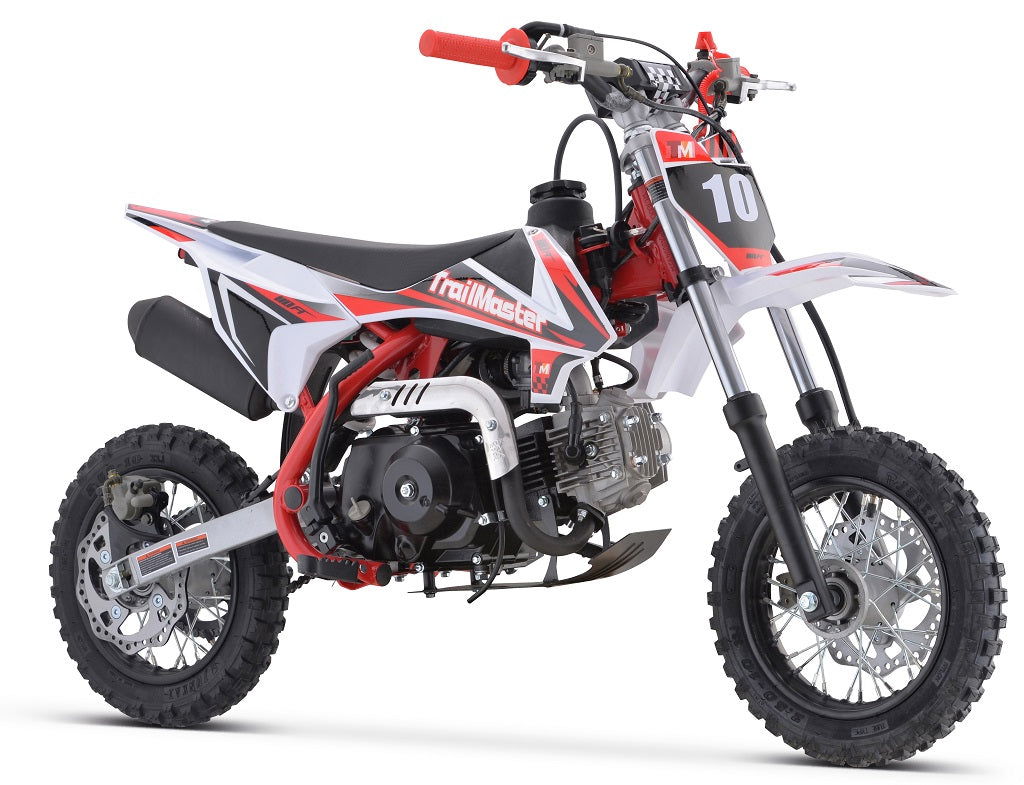

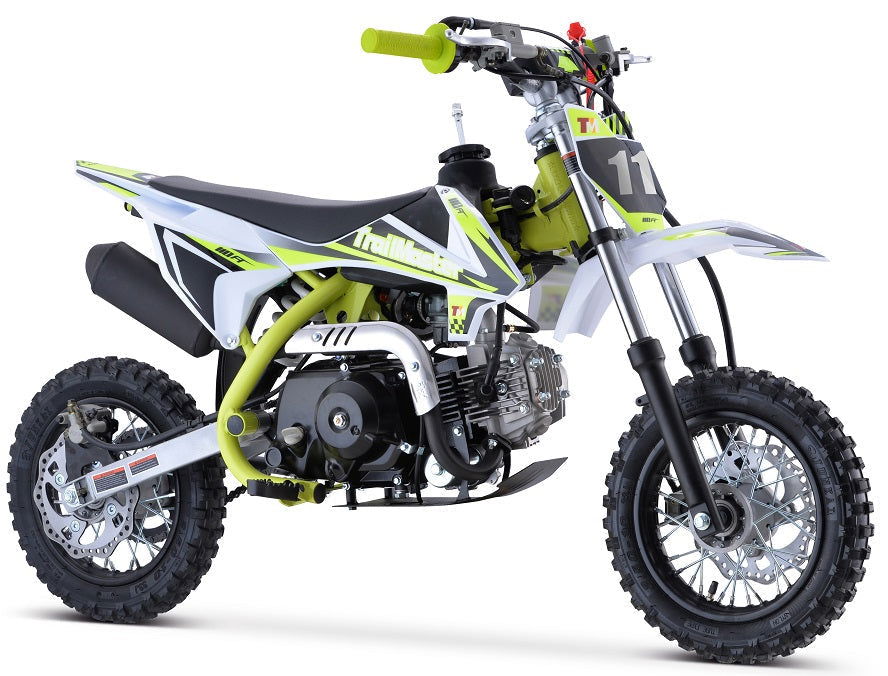

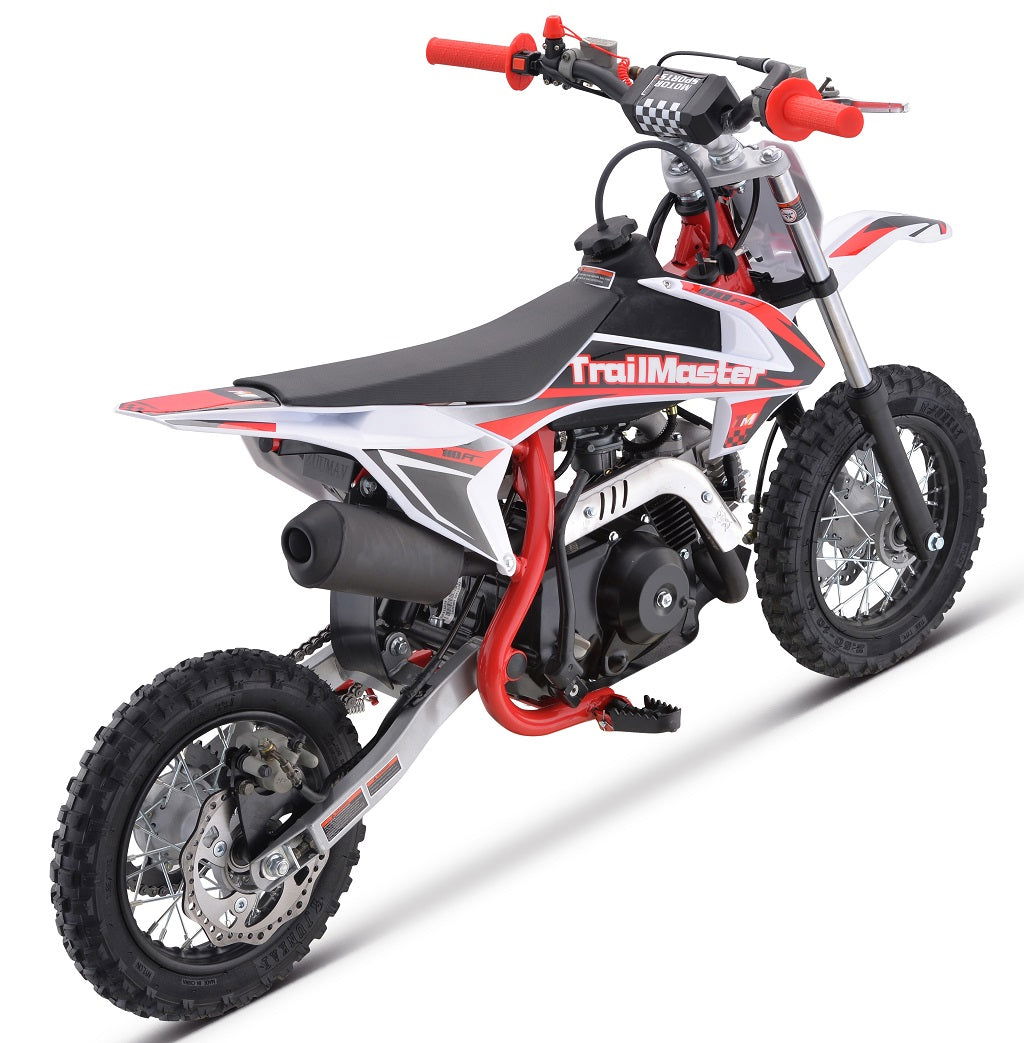

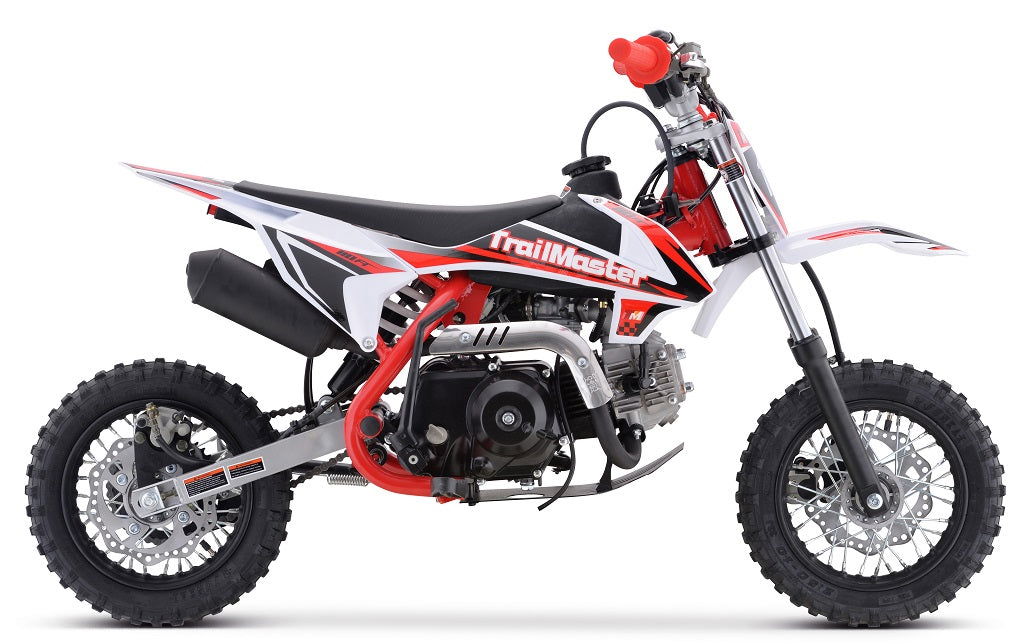

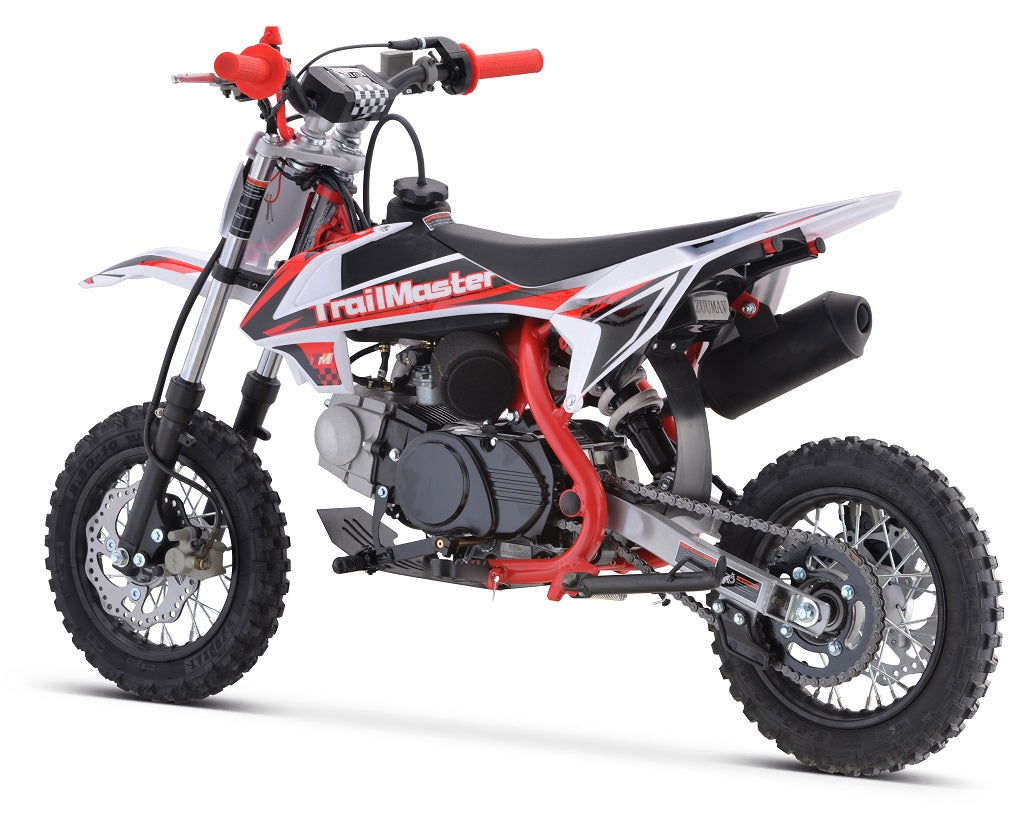

TrailMaster TM11 110cc Dirt Bike Fully Auto with Electric Start, Dual Disc Brakes (10/10), Ages 8-12

The TM 11‐110 (AUTO) is a great Junior size dirt bike. It has a high performance 110cc 4 stroke 6 hp engine with electric start (No Kick Start) and a seat height of 24”. It is available in red, blue, green, and orange colors. The TM10 features a fully Automatic transmission with one gear, front and rear disc brakes, 10” front & Rear Tire and a heavy-duty frame built for durability!

Specifications

Engine System

• Engine Type: 110CC, Single Cylinder, 4‐Stroke, Air Cooled
• Displacement: 107 ml
• Automatic Clutch, one gear
• Start Type: Electric Start Only
• Bore x Stroke: Ф52.4×49.5mm
• Max Power: 6.7 hp
• Max Torque: 7.5/5500±500N.m/r/min

• Compression Ratio: 9.0:1
• Min. Fuel Consumption: ≤367g/kw.h
• Engine Oil: 5W-30
• Ignition: CDI
• Transmission: #420 Chain, FT: 14T/RR: 39T Sprocket

Size Data

• Overall Size (L*W*H): 59.84"X25.60"X33.07"
• Wheelbase: 39.37"
• Seat Height: 24.41"
• Ground Clearance: 8.27"
• Fuel Capacity: 2.2L / 0.58 Gal.
• Wheels: Fr. & Rr. Both Steel 1.40 ×10/￠12 Rims, Cast Hubs
• Tires: Fr. & Rr. Both 2.50x10, Knobby tires

Frame/Suspension/Brake System

• Cradle Type: Steel Tube Frame
• Front Fork: ￠33*650mm Telescopic Forks, Non‐Adjustable
• Rear Shock: ￠10*270mm, Non‐Adjustable
• Swing‐Arm: Steel Tube 12inch
• Handlebar: Steel Crossbar, L=620mm; Dia=￠22mm
• Front Brake: Hydraulic Single Piston Caliper, 190mm Disc
• Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust: Black Pipe with catalyst converter (EPA Standard)
• Packing Size: 49.4*13.2*24.2 inch
• N.W: 111.3 LBS
• G.W: 126.8 LBS

Download Product Brochure
