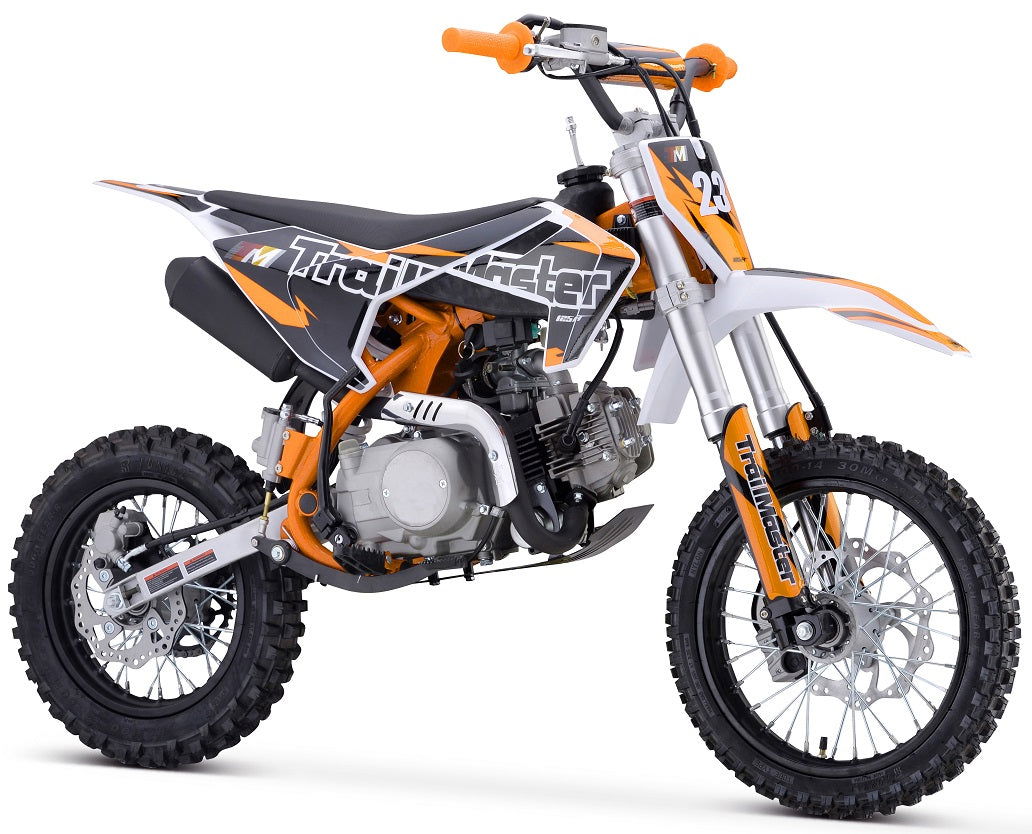

TrailMaster TM23 125cc Dirt Bike, 4-Speed Auto, Electric Start (14/12), Ages 12 and up

The TM 23‐125 is a great Junior size dirt bike that has both Electric and Kick Start. It has a High-performance 125cc 4 stroke 8.3hp engine and a top speed of around 45mph, a seat height of 29”, front and rear Disc Brakes, and a heavy-duty frame built for durability!

The TM23 features a 4-speed Automatic (Shifting, with No clutch lever) transmission so young riders can focus on riding and shifting without manually operating a clutch.

The bikes' full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 161 pounds, the 125cc engine can propel the motorcycle to speeds of 45 miles per hour.

Specifications

Engine System

• Engine Type: ZM125cc, Gas, Single Cylinder, 4‐Stroke, Air Cooled
• Displacement 124 ml
• Max Power 8.3 hp
• Max Torque 9.0(1±10%）/5000（1±5%）m/r/min
• Compression Ratio 9.6:1
• Shift Type N‐1‐2‐3‐4, Four‐Gears, Automatic Clutch
• Start Type: Electric & Kick Start
• Ignition CDI
• Fuel Consumption: ≤367g/kw.h
• Max Range: ≤10.5mile
• Engine Oil: 5W-30
• Transmission: Chain Drive; #428, 14/41T

Size Data

• Overall Size (L x W x H): 60.24"X28.74"X39.76"
• Wheelbase 41.54"
• Seat Height 29.13"
• Ground Clearance 10.63"
• Fuel Capacity 3.5 L/0.92 Gal.
• Wheels Steel 1.6 x 14" / 1.85 x 12" Rims, Cast Hubs
• Tires FT: 60/100‐14 ‐ RR: 80/100‐12

Frame/Suspension/Brake System

• Frame: Cradle Steel Tube Frame
• Front Fork Telescopic ￠33*650mm Forks, Non‐Adjustable
• Rear Shock ￠10*270mm, Non‐Adjustable
• Swing‐Arm Steel Tube 12 inch
• Handlebar Aluminum Crossbar, L=28.35"; Dia=0.87"
• Front Brake Hydraulic Single Piston Caliper, 220mm Disc
• Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust Steel Pipe with catalyst converter (EPA Standard)
• Packing Size 54.5"X14.8"X30"
• N.W/LBS 134.5 LBS
• G.W/LBS 161 LBS
