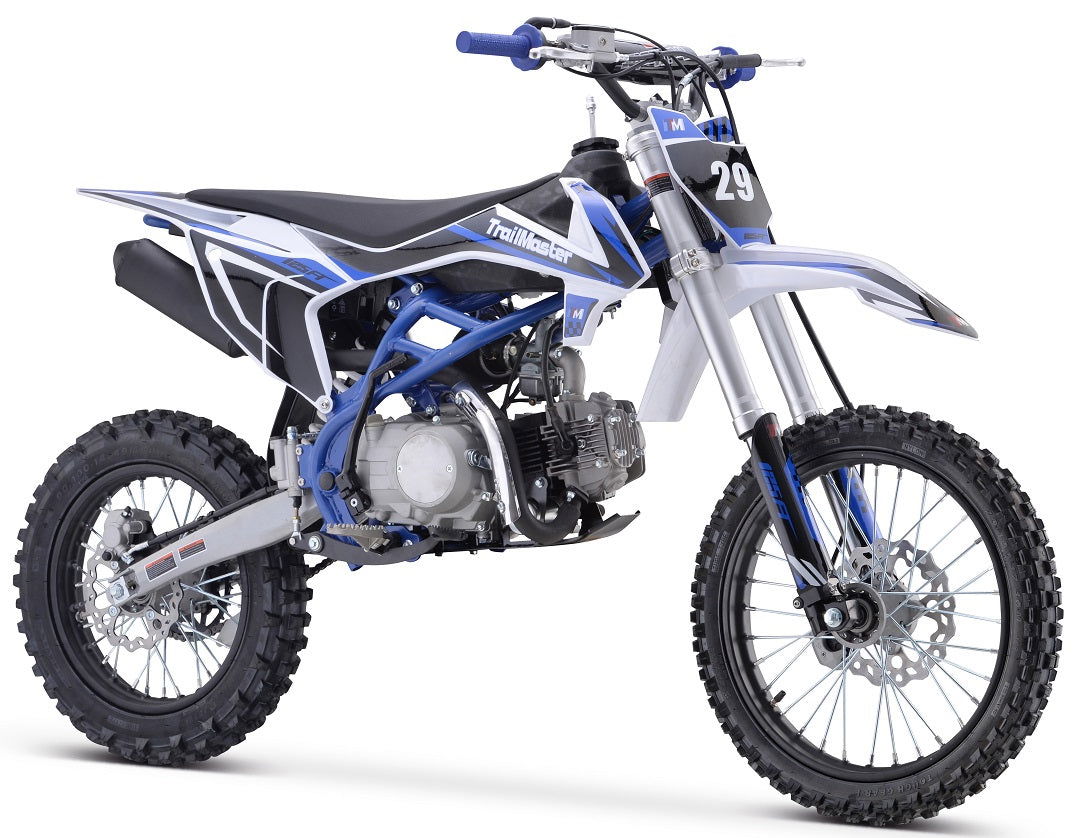

TrailMaster TM29 125cc Dirt Bike, Large Frame, 4-Speed Manual, with Electric Start (17/14), Ages 12 and up

 LARGER FRAME ** Big Wheel Size 17/14, Ages 12 and up **

The TM 29‐125 is identical to the TM27 except it has both a kick start and “ELECTRIC START”, High-performance 125cc 8.3hp GAS engine with a top speed of around 55 MPH and a seat height of 33.5” ** 4-speed manual transmission with front and rear disc brakes, inverted front shock, and a larger (70” Long) heavy duty frame than the TM24!

The bikes full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 172 pounds, the 125cc engine can propel the motorcycle to speeds of 55 miles per hour!

Specifications

Engine System

• Engine Type ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
• Displacement 124 ml
• Max Power 8.3hp
• Max Torque 6.64 lb. Ft
• Compression Ratio 9.6:1
• Shift Type N‐1‐2‐3‐4, Four‐Gear, Manual Shift
• Start Type: Electric & Kick Start
• Ignition CDI
• Min. Fuel Consumption: ≤367g/kw.h
• Max Range: ≤10.5 mile
• Engine Oil：5W-30
• Transmission Chain Drive: #428, 14/41T

Size Data

• Overall Size: (L x W x H): 71.3" X 28.9" X 43.3"
• Wheelbase: 49.8"
• Seat Height: 33.5"
• Ground Clearance: 13"
• Fuel Capacity: 1.2 Gal/4.5 L
• Tires: FT: 70/100‐17 ‐ RR: 90/100‐14 Knobby tires
• Wheels: Steel 1.6 x 17" / 1.85 x 14" Rims, Cast Hubs

Frame/Suspension/Brake System

• Frame: Twin Girders Steel Tube
• Front Fork: Inverted 45*48‐735mm Forks, Non‐Adjustable
• Rear Shock: 10*￠11*310mm, Spring Per‐load
• Swing‐Arm: Steel Tube 14inch
• Handlebar: Steel Crossbar, L=720mm; Dia=22mm
• Front Brake: Hydraulic Single Piston Caliper, 210mm Disc
• Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
• Exhaust: Steel Pipe with catalyst converter (EPA Standard)
• Crate Size: 62.6" x 14.8" x 29.9”
• N.W: 143.3 LBS
• G.W: 172 LBS
