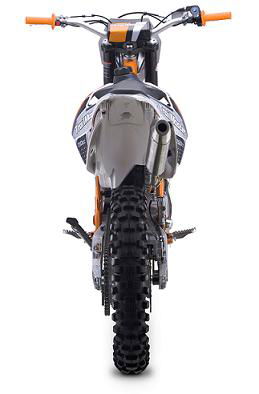

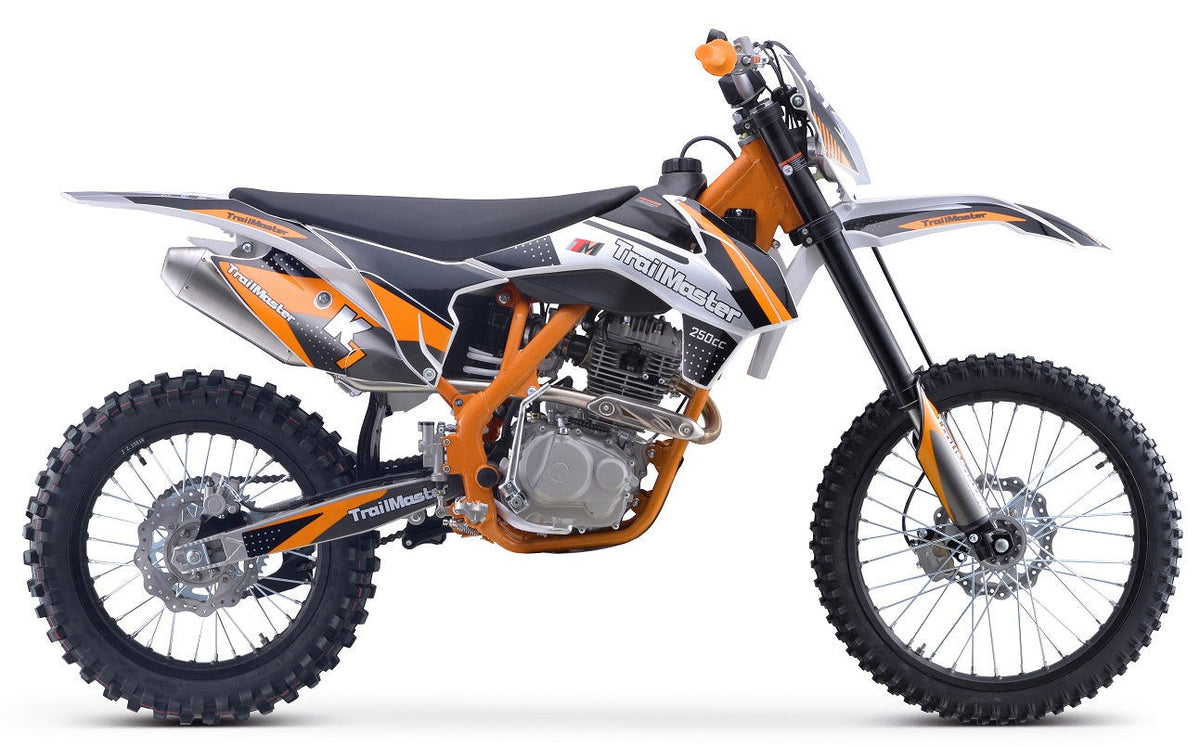

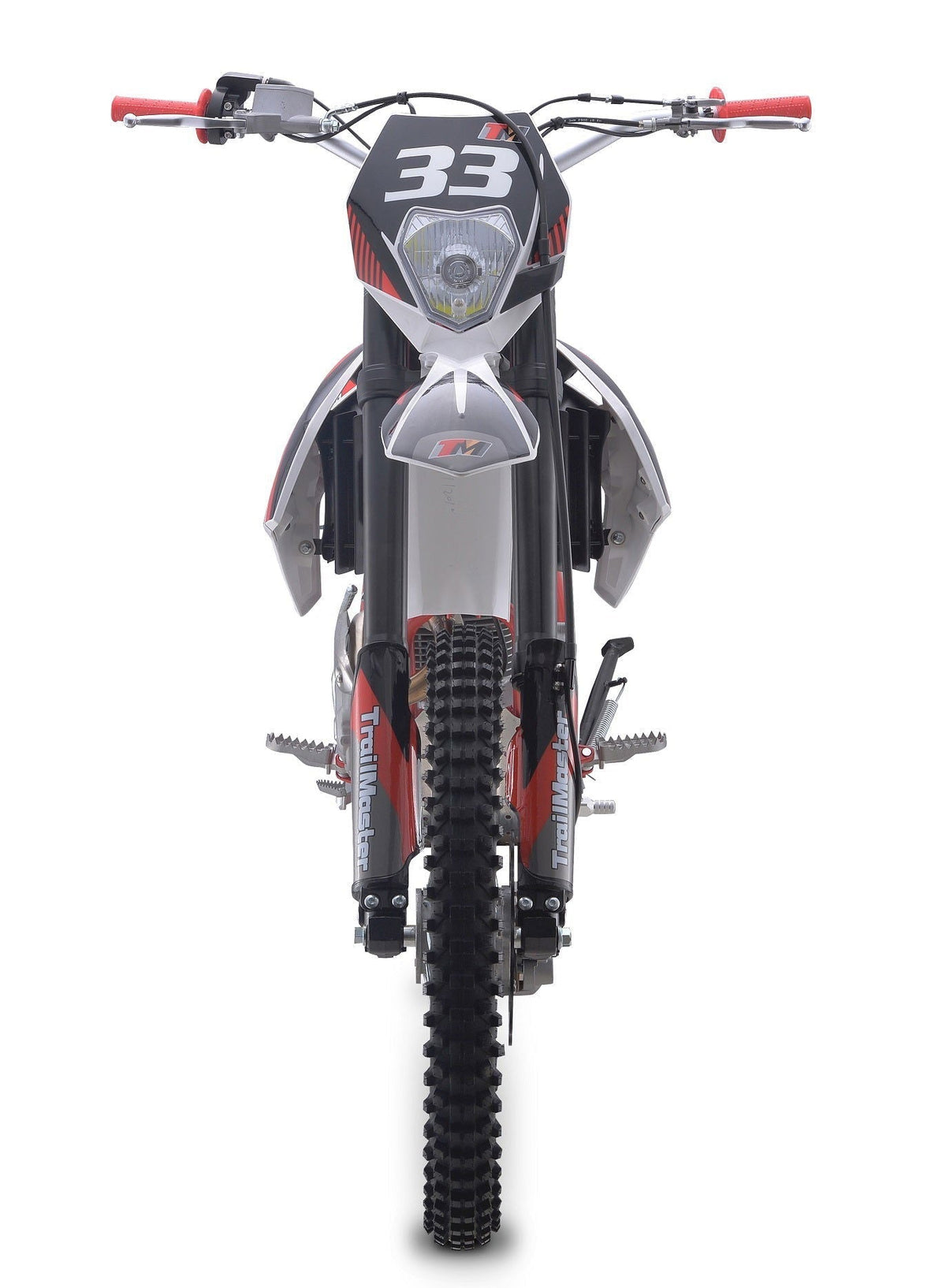

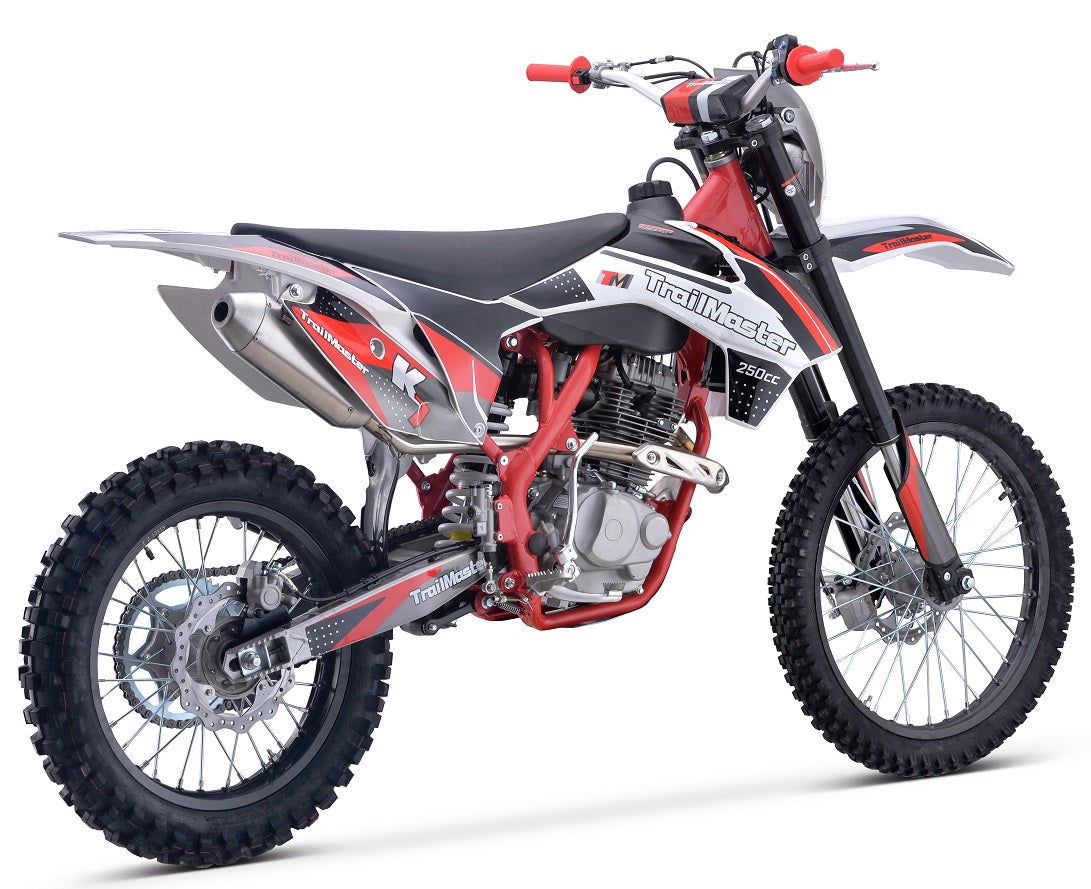

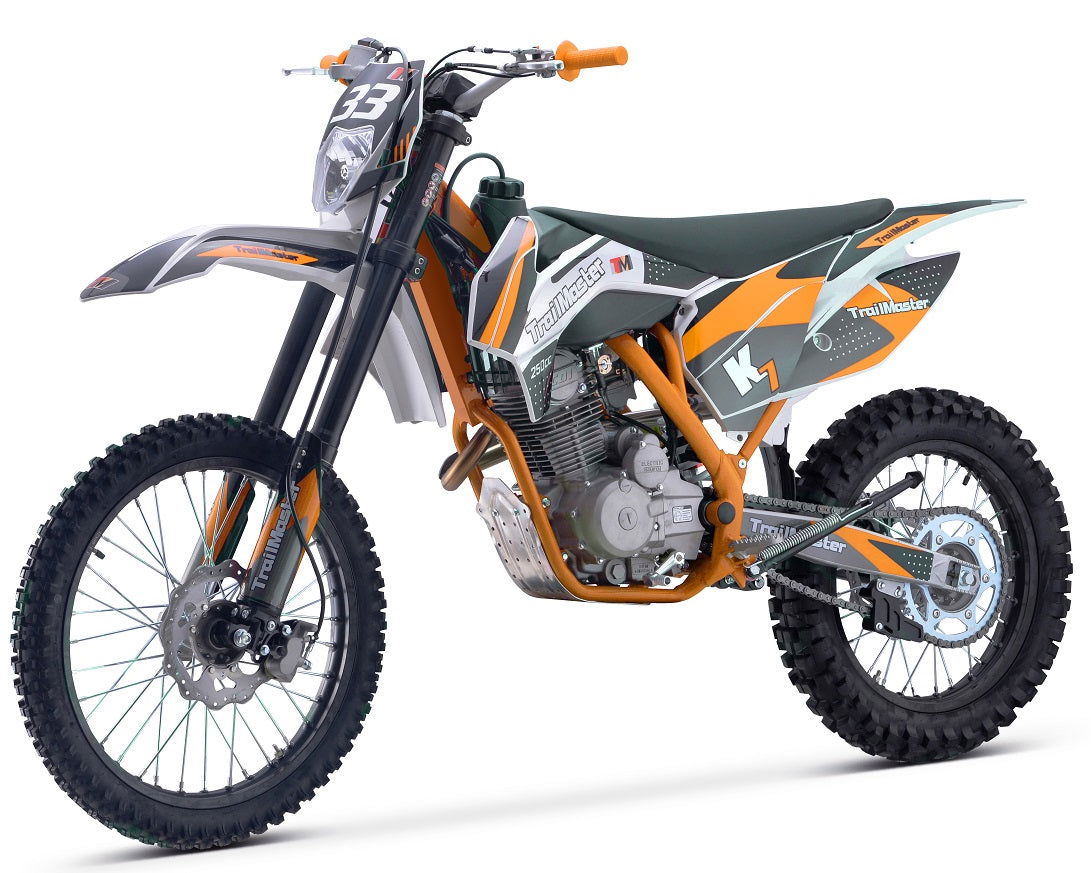

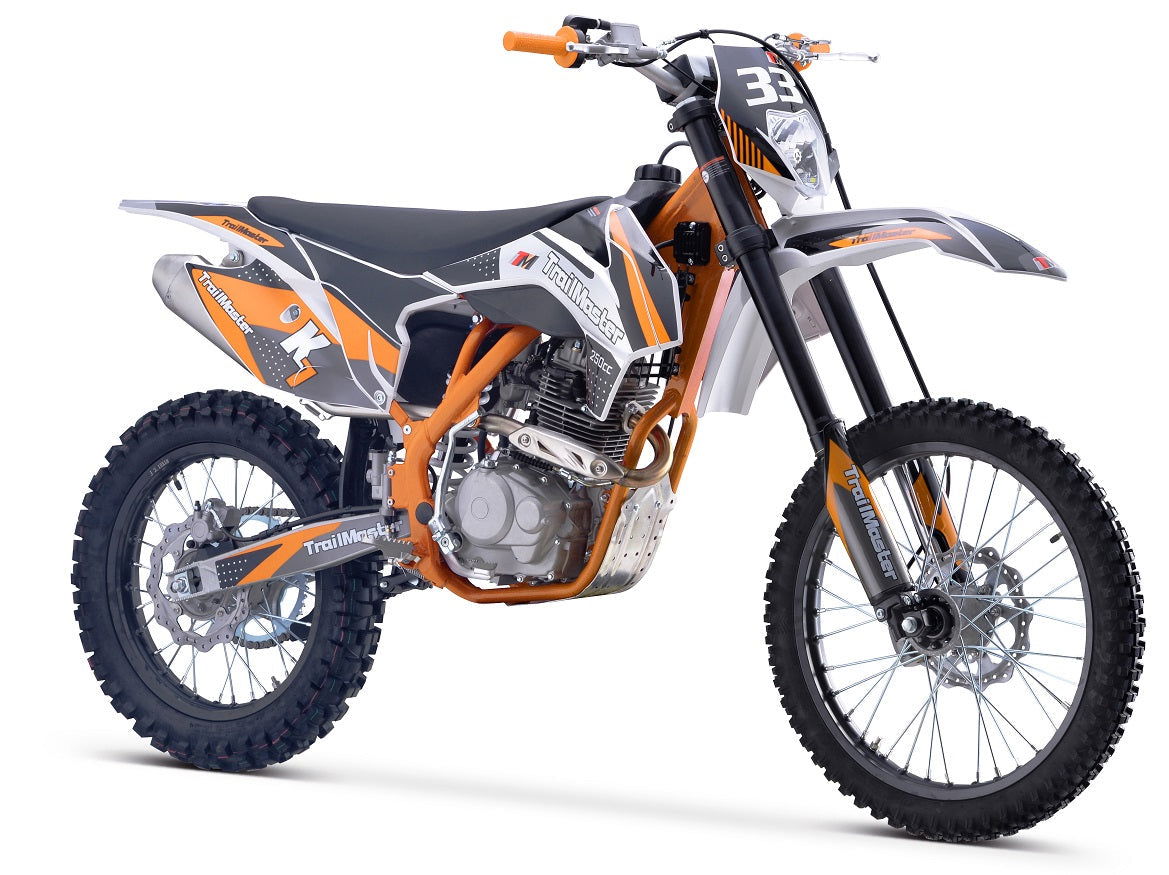

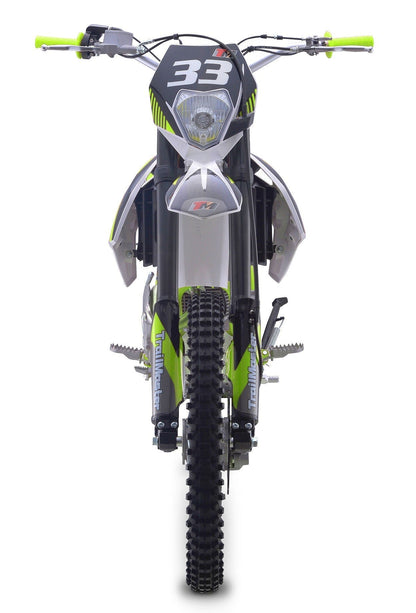

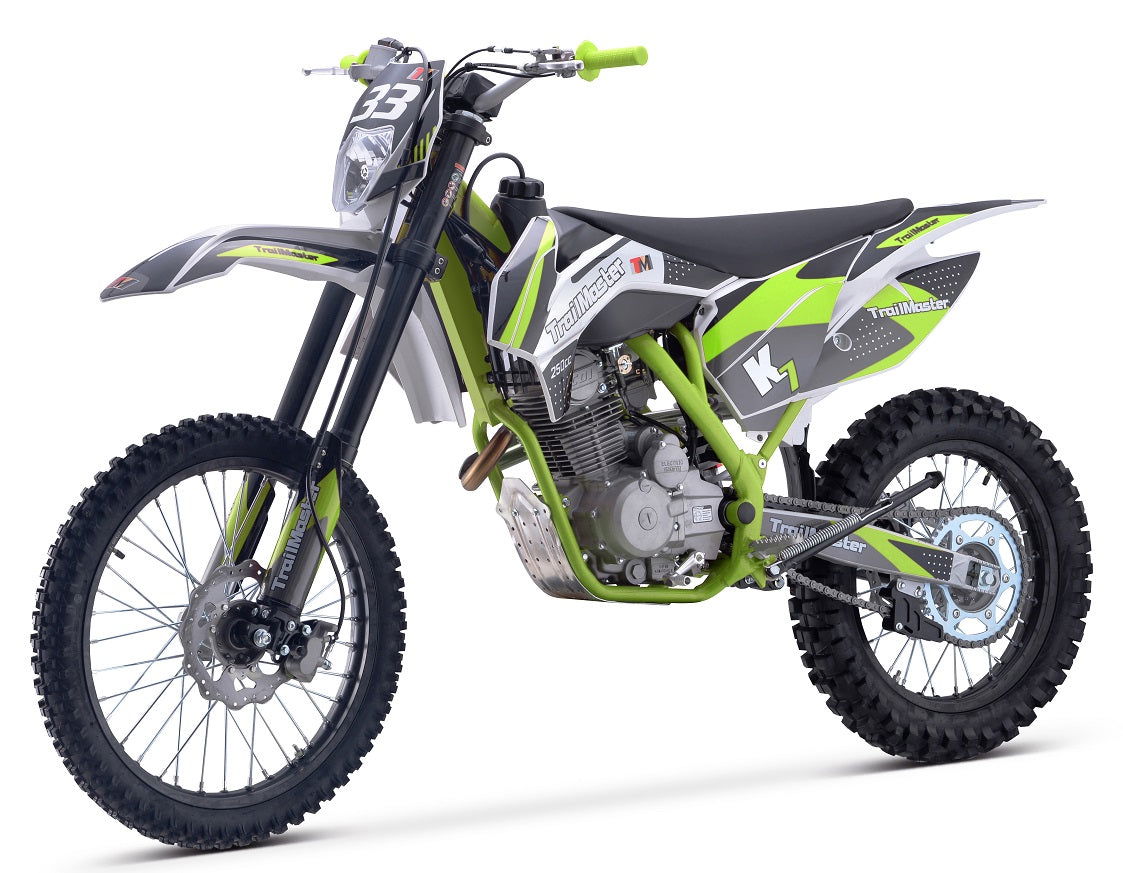

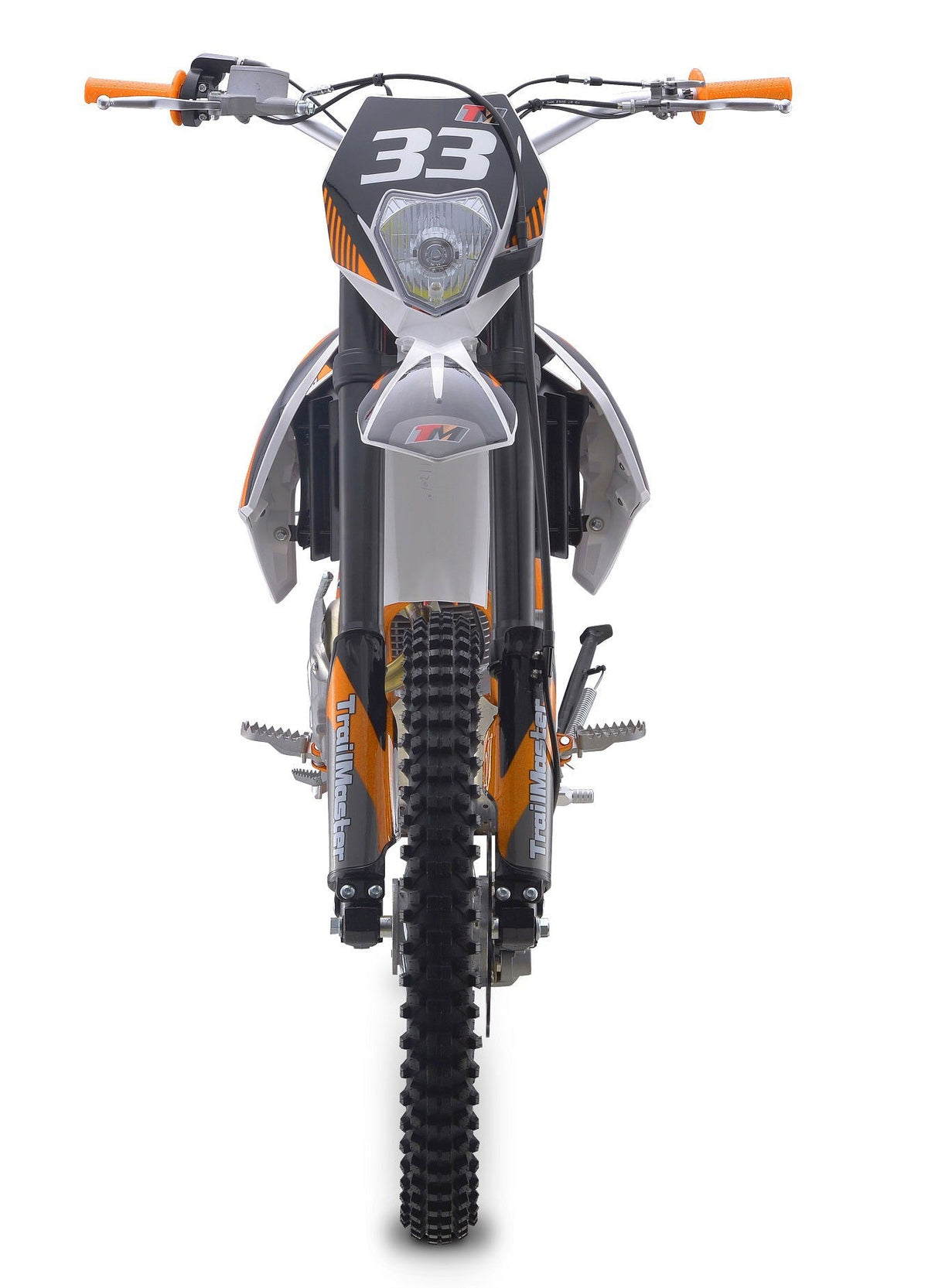

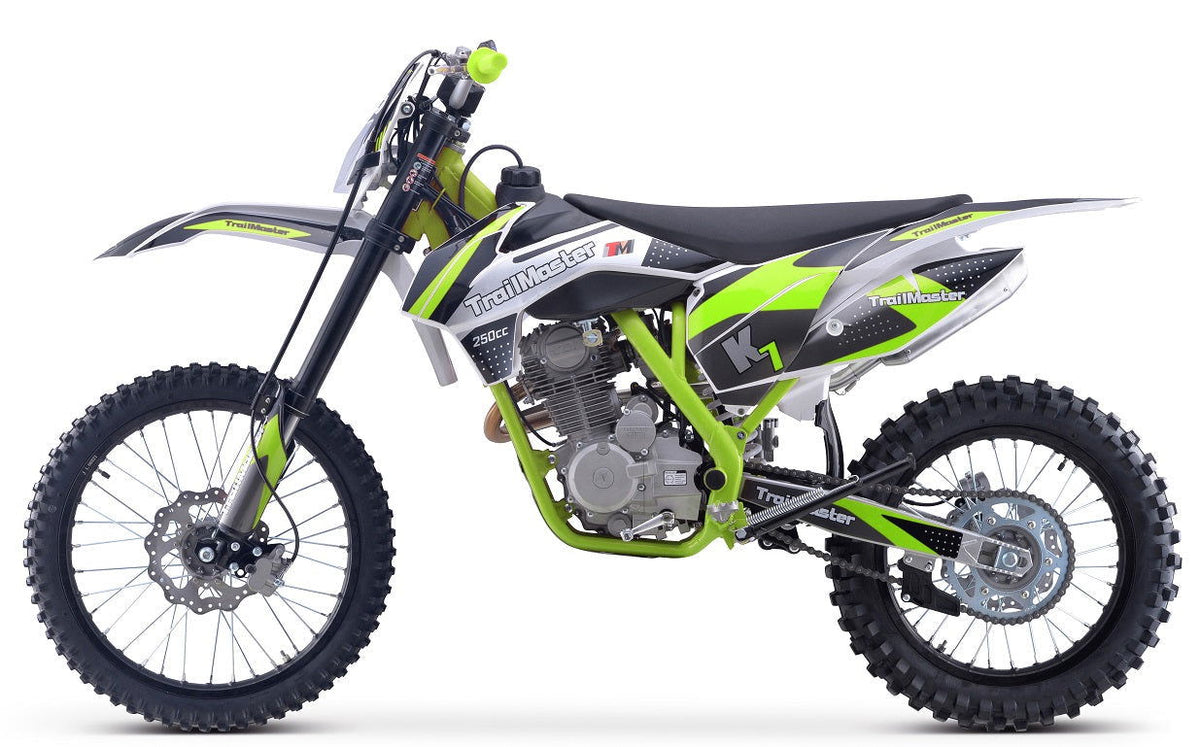

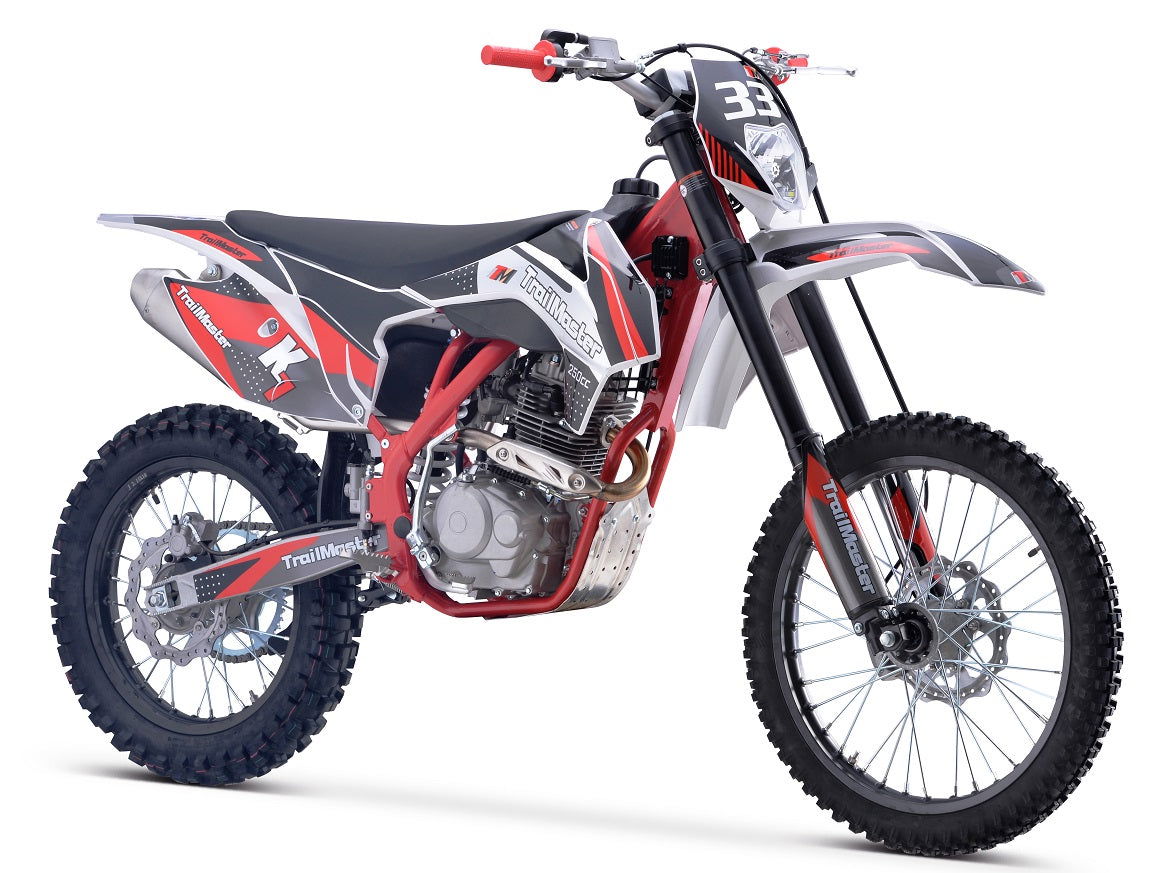

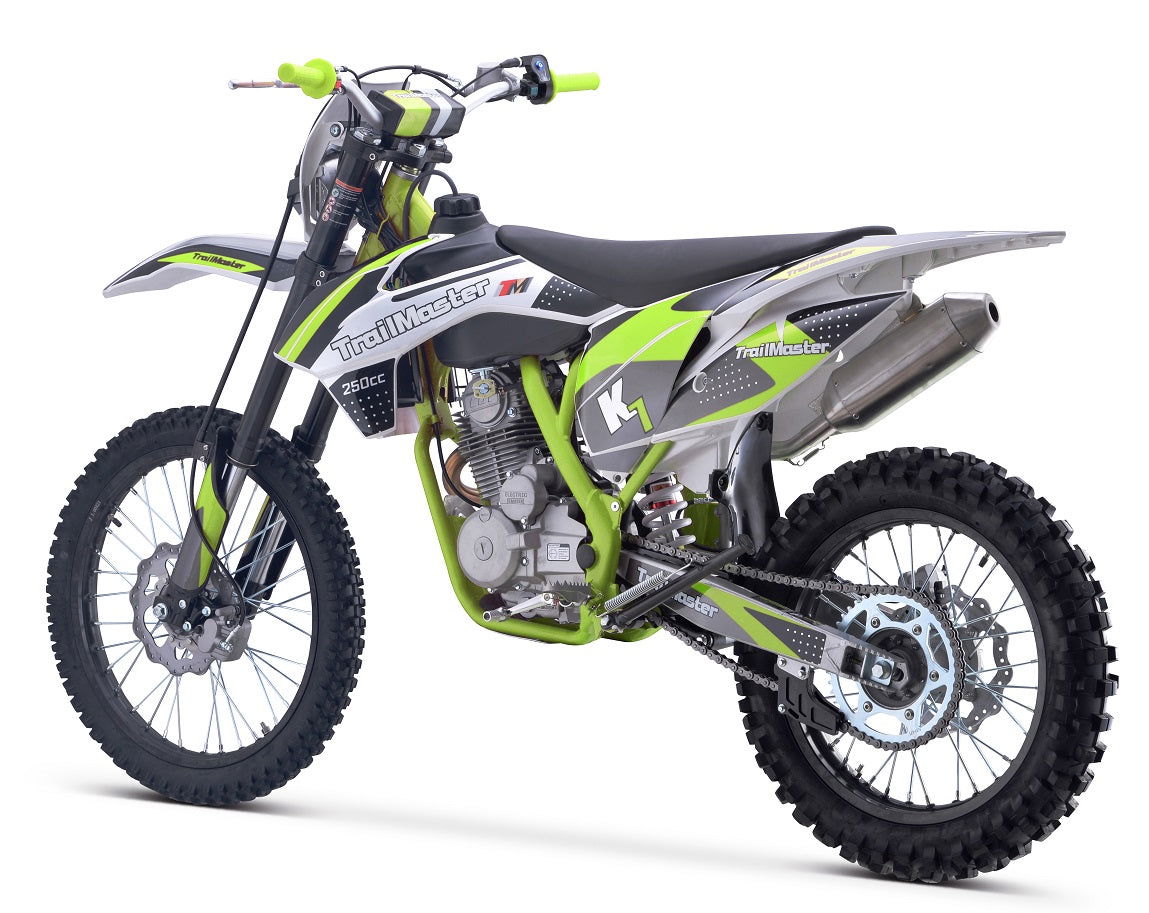

TrailMaster TM33 250 Dirt Bike, 5-Speed Manual, Dual Disc Brakes (21/18)

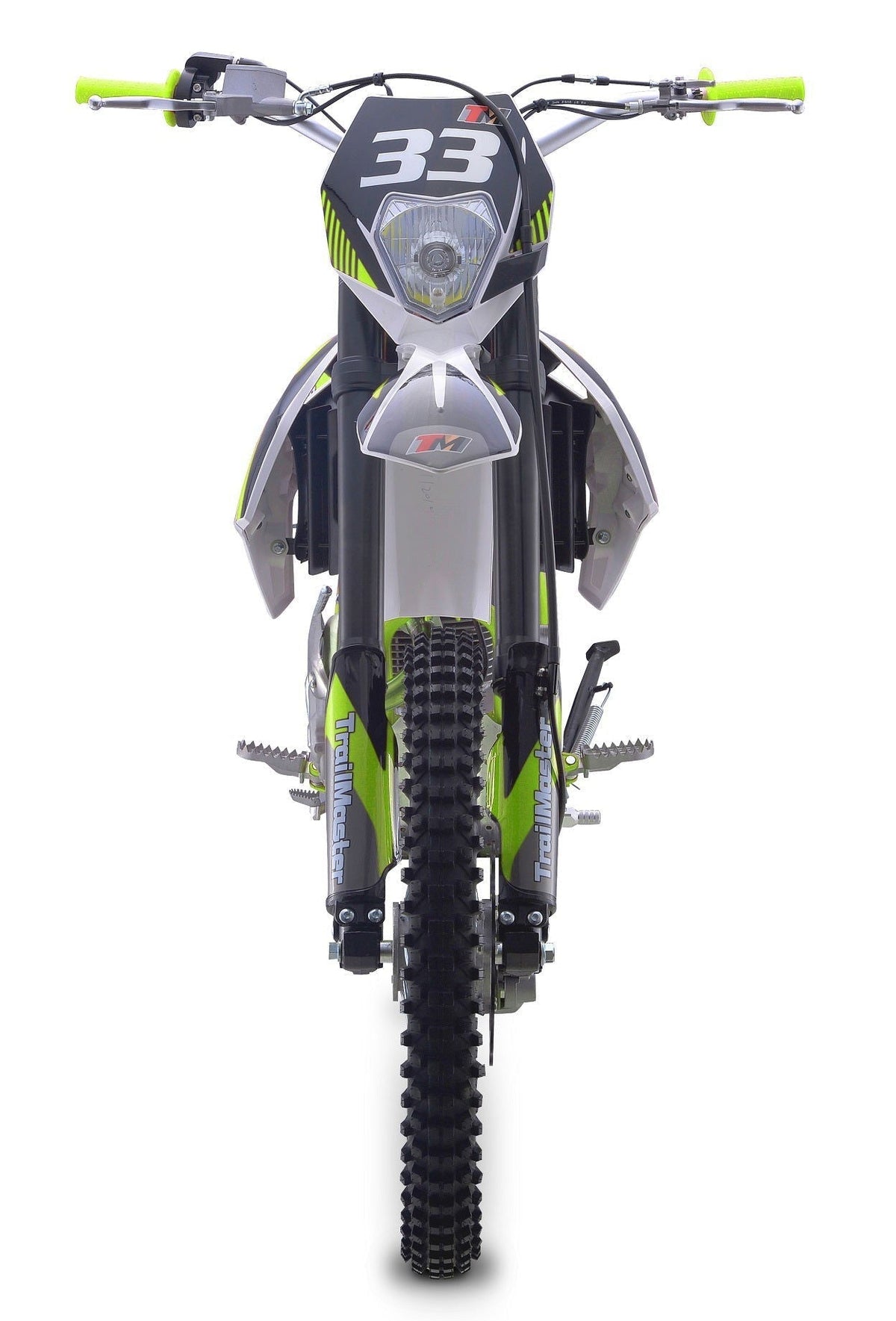

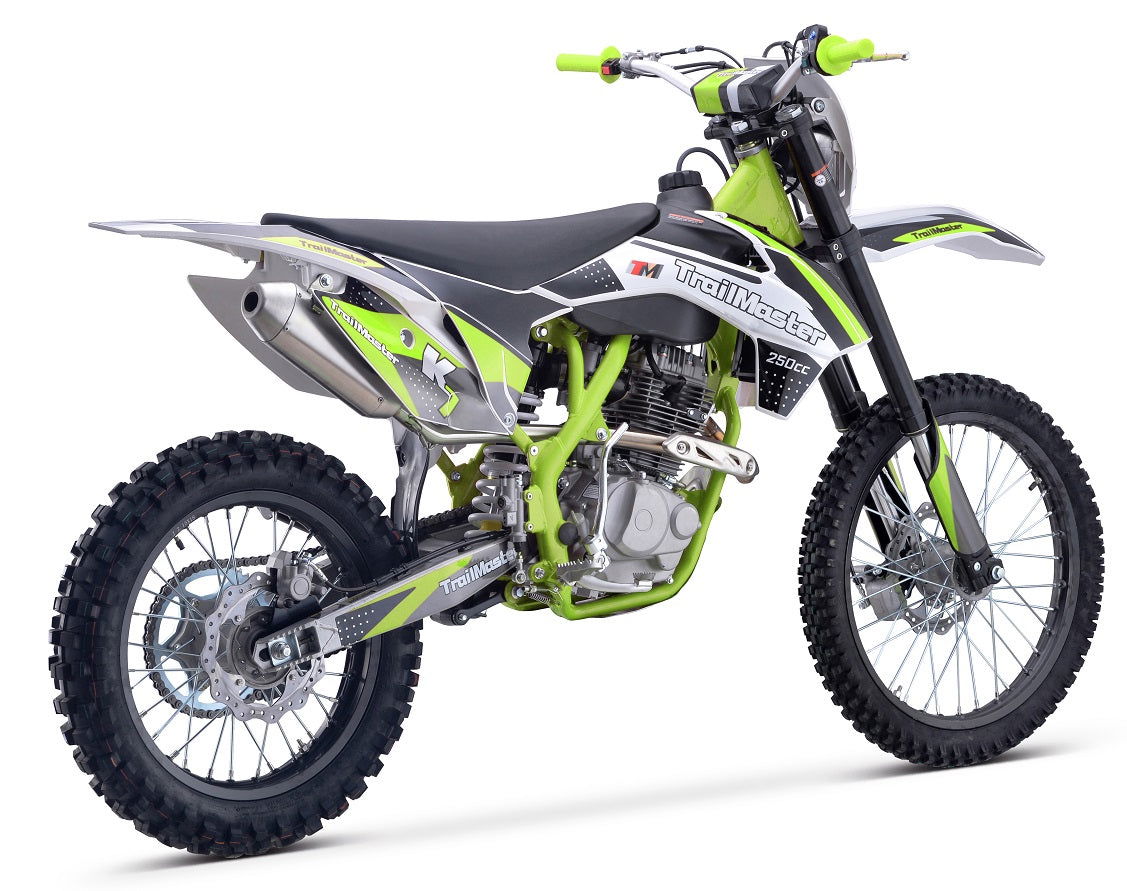

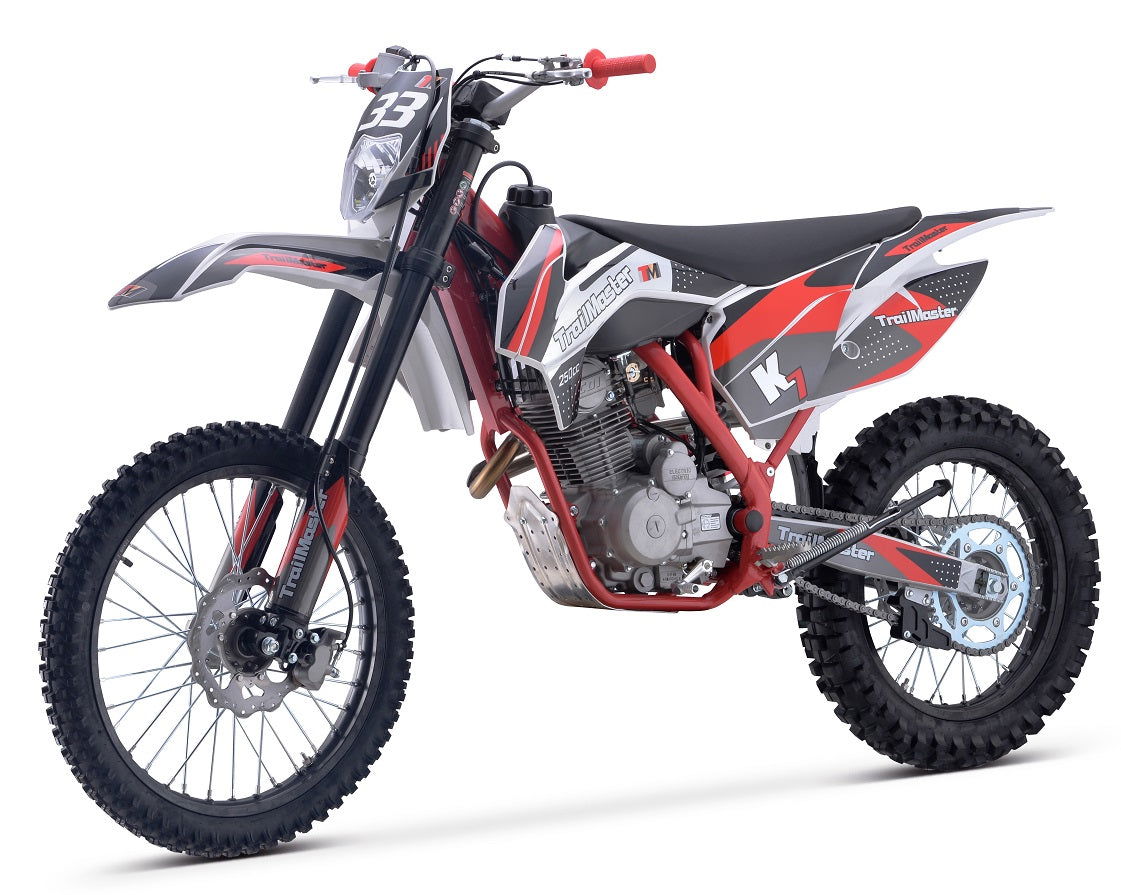

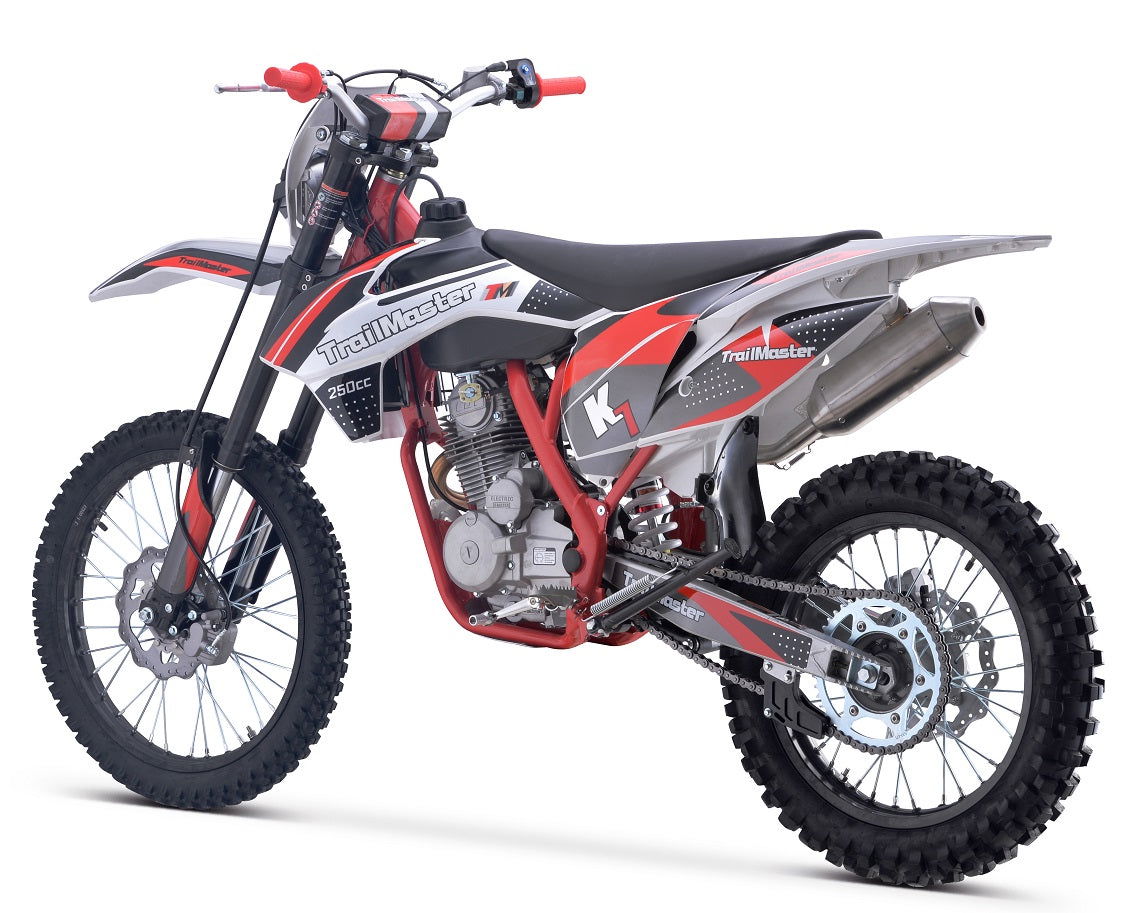

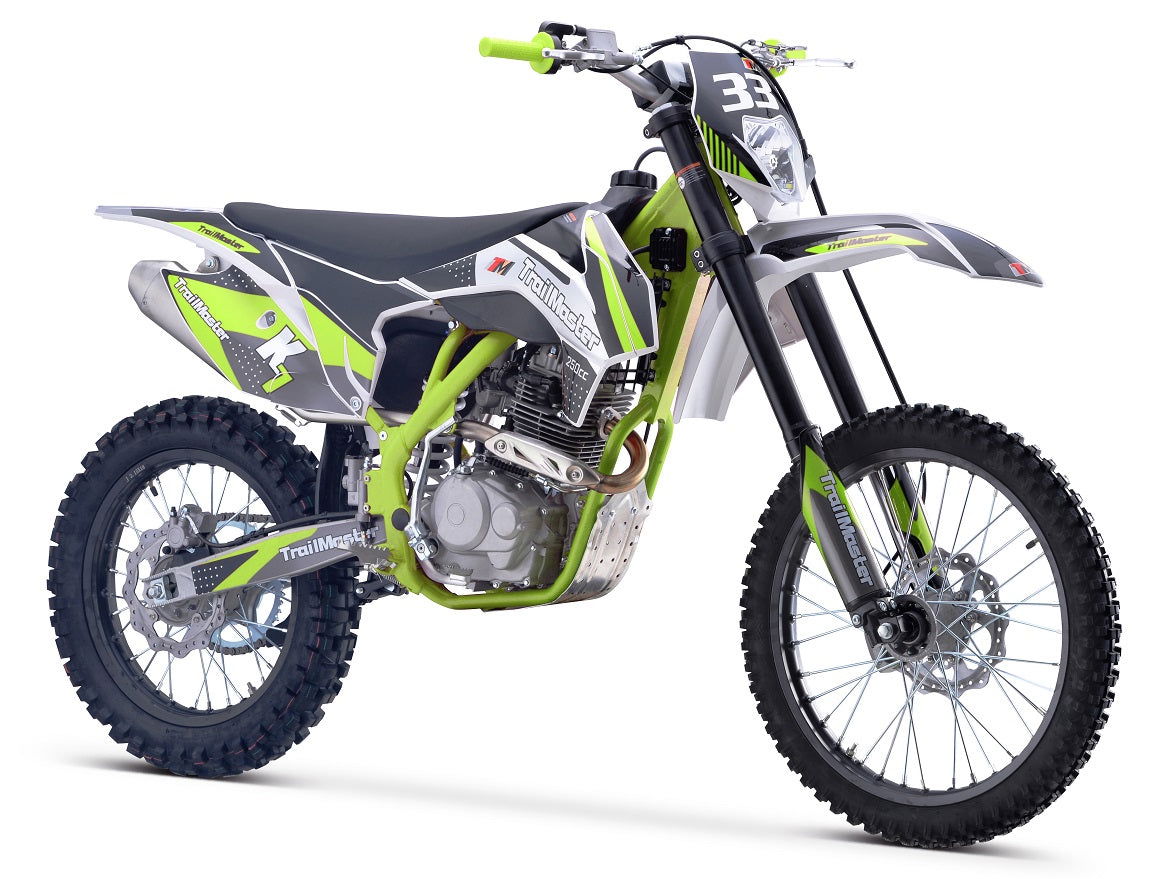

The TM 33‐250 is a great full size dirt bike. It has both a kick start and a new “ELECTRIC START”. It has a high performance 223cc 4 stroke 16hp engine with a top speed of around 55 MPH and a seat height of 37”. It is available in red, green, and orange colors. The TM33 features a 5-speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame!

The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 326 pounds, the 223cc engine can propel the motorcycle to speeds of 55 miles per hour.

Specifications

Engine System

• Engine Type  ZSCB250D‐G, Single  Cylinder, 4‐Stroke, Air Cooled
• Displacement  223 ml
• Max Power  12/7000 kw/r/min, 16 HP
• Max Torque  17.5/5500 N.m/r/min
• Compression Ratio  9.3~9.9:1
• Shift Type  Manual Wet Multi‐Plate,  1‐N‐2‐3‐4‐5, 5‐Gears
• Bore and Stroke  65.5 x 62.2 mm
• Min.Fuel Cons ‐ 354(g/Kw.h)
• Start Type  Electric & Kick Start
• Carburetor  PZ28
• Ignition  Digital CDI
• Transmission  #520 Chain, FT: 13T/RR:  47T Sprocket

Size Data

• Front Suspension  Φ51*Φ54‐910mm  Inverted Hydraulic Forks, 150mm Travel
• Rear Shock  460mm Spring Pre‐load  None‐Adjustable Shock
• Front Wheel  Alum, FT: 1.60 x 21
• Rear Wheel  Alum, RR: 2.15 x 18
• Front Tire  80/100‐21
• Rear Tire  110/100‐18
• Front Brake  Dual Piston Caliper,  240mm Disc
• Rear Brake  Single Piston Caliper,  240mm Disc

Frame/Suspension/Brake System

• Frame  Lightweight ,Steel Tube Frame
• Swing‐Arm  Tube High Strength Steel  Swingarm; L=560mm
• Handle Bar  Tapered Aluminum  #6061
• Size 86.6"X33.9"49.2"/2200x860x1250mm
• Packing Size 67.5"X18"X34"/1715x450x860mm
• Wheel Base  59"/1500 mm
• Seat Height  37"/940 mm
• Ground Clearance  11.8"/300 mm
• Fuel Capacity  6.5 L / 1.72 Gal.
• N.W  234lbs/117KG  G.W  326lbs/148KG
